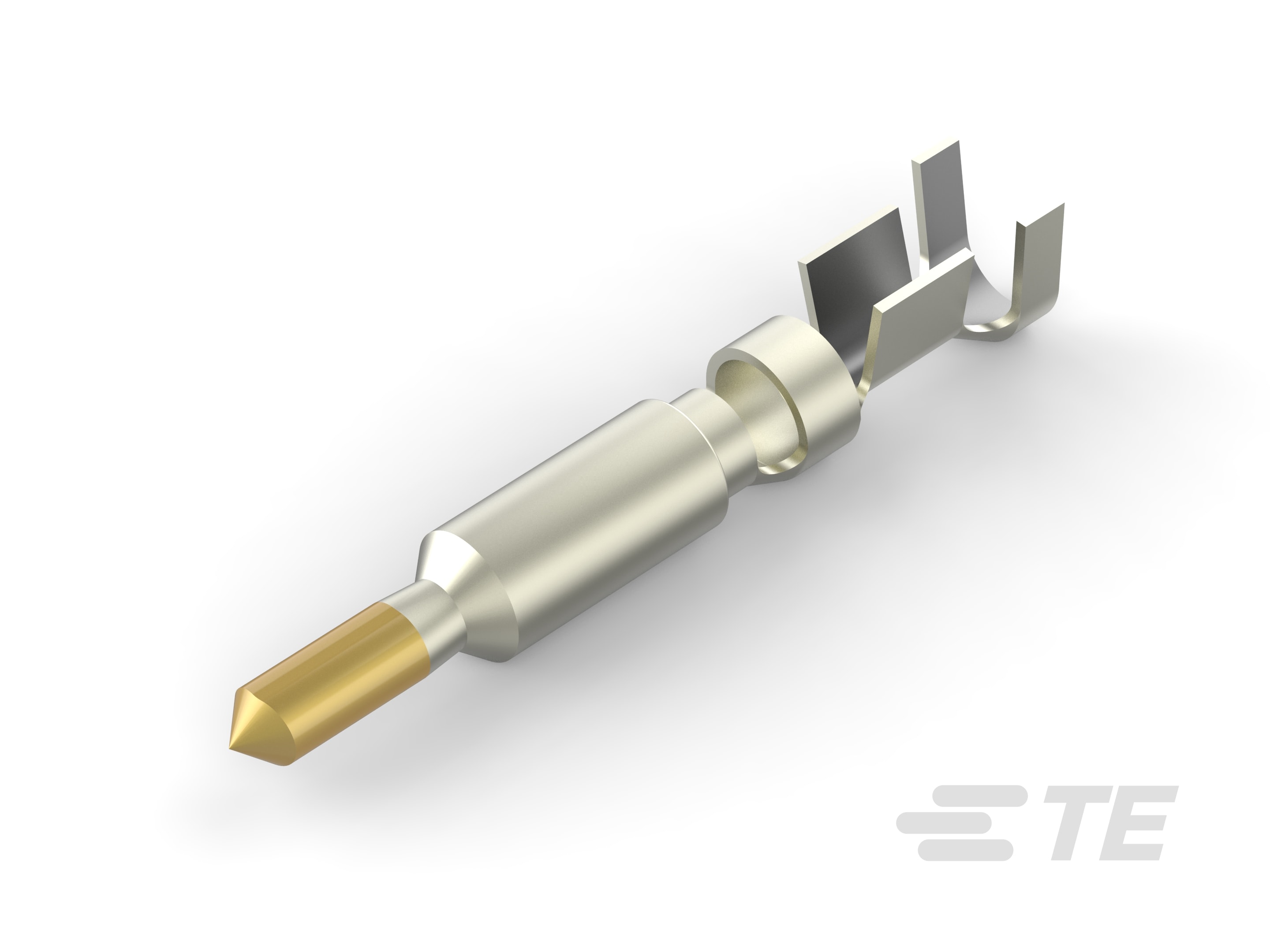

Pin Contact, Gold, 600 VAC, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, -55 – 120 °C [-67 – 248 °F], Universal MATE-N-LOK
1-770007-0
Pin Contact, Gold, 600 VAC, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, -55 – 120 °C [-67 – 248 °F], Universal MATE-N-LOK
-
- MATE-N-LOK
- Universal MATE-N-LOK
- TE Internal #: 1-770007-0
- TE Internal Description: UMNL II PIN AUSN/NI/BR
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 120 °C [ -67 – 248 °F ]
-
Wire Size (AWG): 20 – 14
-
Contact Orientation : Straight
-
Wire Insulation Support : Without
Documents
Product Drawings
- PIN, UNIVERSAL MATE-N-LOK(TM) II ENG_CD_770007_G_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-770007-0_T.pdf 3D
- Customer View Model ENG_CVM_CVM_1-770007-0_T.2d_dxf.zip English
- ENG_CVM_CVM_1-770007-0_T.3d_igs.zip English
- ENG_CVM_CVM_1-770007-0_T.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_SOCKET_CONNECTORS_STANDARD_DENSITY ENG_CS_82181_SOFTSHELL_STANDARD_DENSITY_0508.pdf English
Product Specifications
- Application Specification ENG_SS_114-1043_E.pdf English
