9MM MV OUTPUT PRESSURE SENSOR

9MM MV OUTPUT PRESSURE SENSOR-CAT-MIPS0024
  • MEAS
|
  • MEAS 89

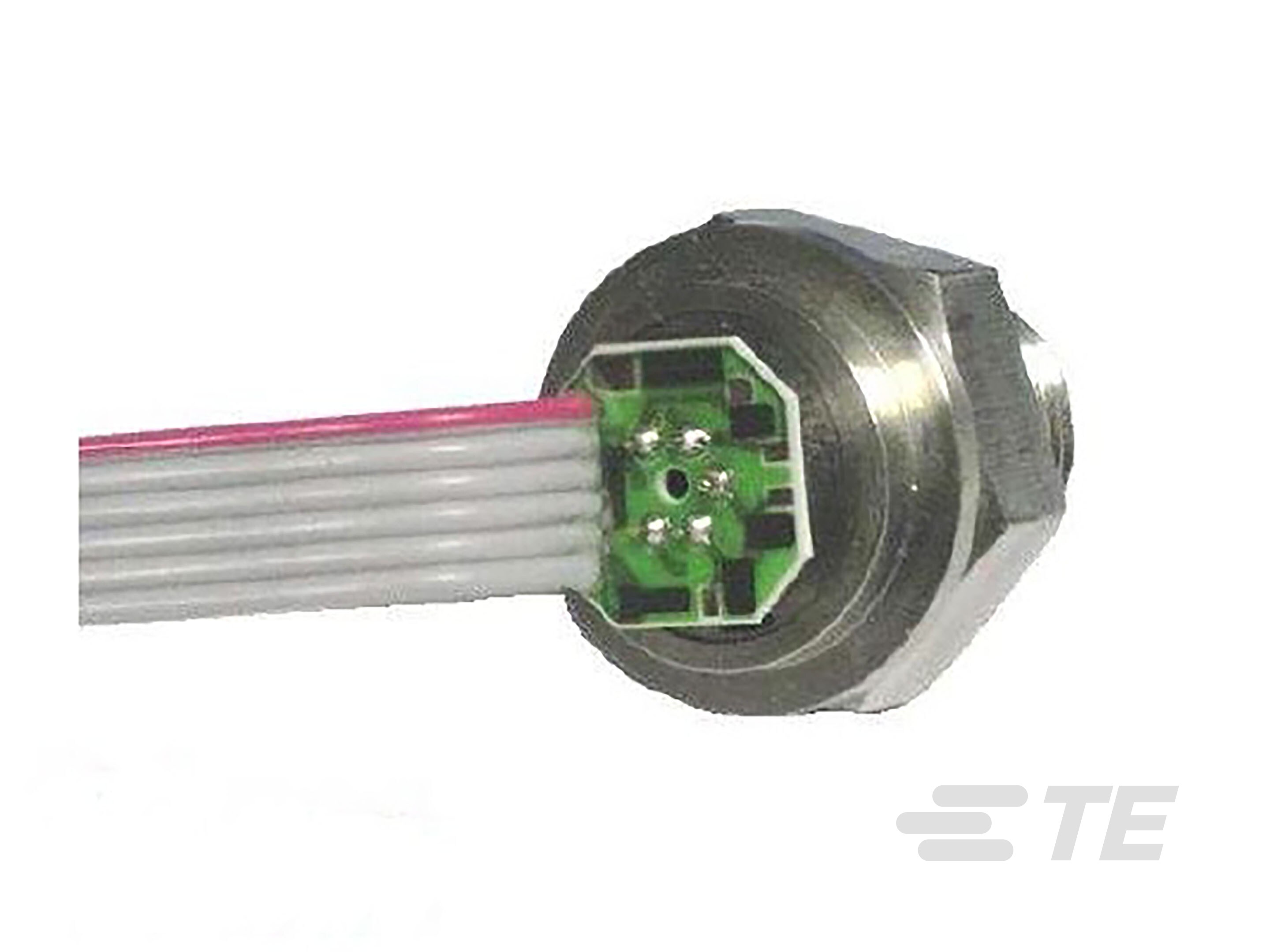

The 89 compensated is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.
More Less

Product Features

  • Pressure (bar): 68.94, 689.47

  • Pressure (psi): 1000, 10000

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Absolute, Sealed Gauge

  • Output Signal Type : 125mV

  • Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Available from

LADD Inc
Overview

The 89 compensated features 5/16- 32 UNEF threads and can be welded in place.  It can also be packaged in a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings. Contact factory for threaded fitting options. The 89 compensated is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains lasertrimmed resistors for temperature compensated and offset correction. An additional laser trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%.

BENEFITS

  • 316L SS Pressure Sensor
  • High Pressure
  • 0 - 100mV Output
  • Absolute and Sealed Gage pressure types available
  • Threaded Process Fittings or O-Ring Mount
  • -40ºC to +125ºC Operating Temperature Range
  • ±0.25% Pressure Non Linearity
  • Solid State Reliability
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Absolute, Sealed Gauge

  • Sensor Package  O-Ring Mount, Threaded Process Fittings, Weldable

Configuration Features

  • Electrical Connection  Cable w/ Connector, Ribbon Cable, Solder Pads

Electrical Characteristics

  • Supply Current (mA) 1.5

Dimensions

  • Product Diameter  9.04 mm [ .356 in ]

  • Product Height  13.2 mm [ .52 in ]

Usage Conditions

  • Pressure (bar) 68.94, 689.47

  • Pressure (psi) 1000, 10000

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Proof Pressure Range  3X

  • Output Signal Type  125mV

Other

  • Non-Linearity ± (%) .25

  • Port Fitting  None, Weldable (No Thread)

Reference Number

  • TE Internal Number CAT-MIPS0024
