Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

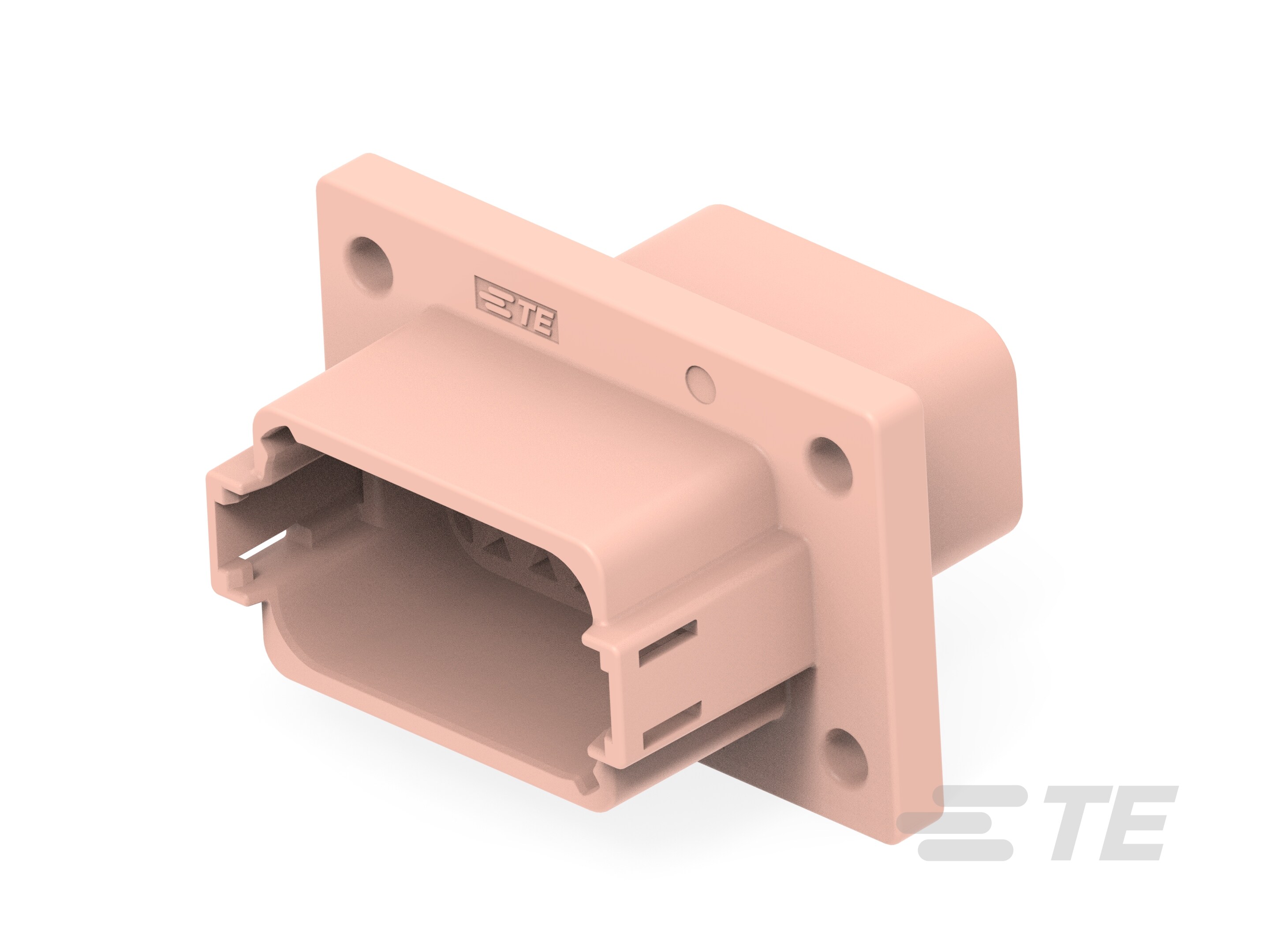

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 2

• Number of Positions : 12

• Connector Modification : Welded Flange

• Blank Cavity Position : 0

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Brown

• Connector & Keying Code : D

• Cable Exit Angle : 180°

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

• Contact Type : Pin

• Contact Size : Size 16

• Connector Mounting Type : Panel Mount

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 4.44 mm [ .175 in ]

• Housing Material : PA GF

• Product Width : 55.12 mm [ 2.17 in ]

• Connector Height : 35.56 mm [ 1.4 in ]

• Row-to-Row Spacing : 4.45 mm [ .175 in ]

• Compatible Insulation Diameter Range : 2.23 – 3.68 mm [ .088 – .145 in ]

• Product Length : 45.92 mm [ 1.808 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• IP Rating : IP68, IP6K9K

• UL Flammability Rating : 12mm Flame Test per Standard UL-94

• Packaging Method : Box

• Packaging Quantity : 200
