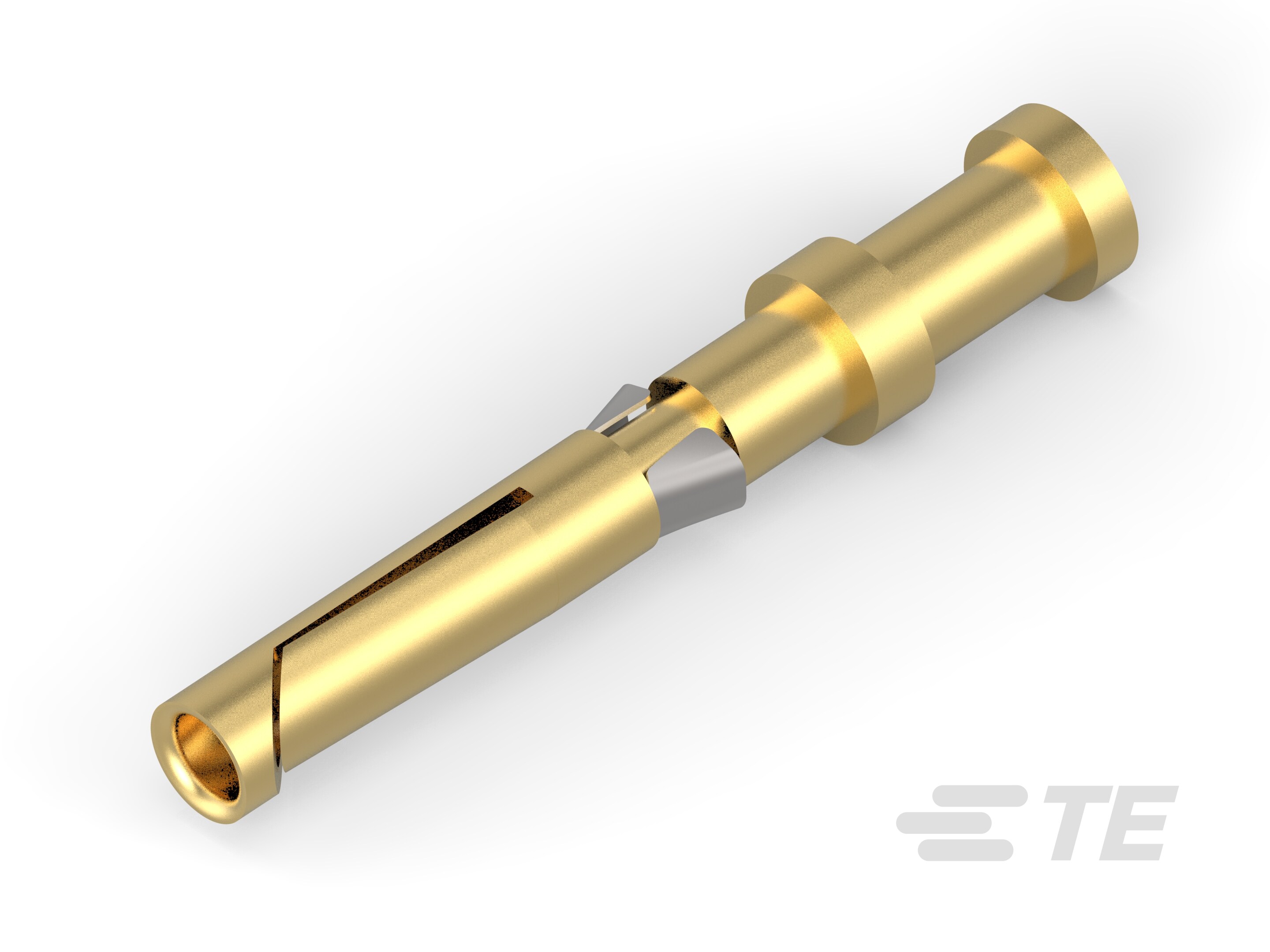

Socket Contact, Gold, Discrete Wire, 20 AWG Wire Size, .5 mm² Wire Size, Crimp, Brass, Power & Signal, HDC HDD
T2020012005-000
Socket Contact, Gold, Discrete Wire, 20 AWG Wire Size, .5 mm² Wire Size, Crimp, Brass, Power & Signal, HDC HDD
-
- HDC
- HDC HDD
- TE Internal #: T2020012005-000
- TE Internal Description: DDF-0.5
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Gold
-
Wire Contact Termination Area Plating Material : Gold
-
Compatible With Wire & Cable Type : Discrete Wire
-
Wire Size (AWG): 20
