DEUTSCH PCB Enclosures

DEUTSCH PCB Enclosures-CAT-D485-EN17
  • DEUTSCH
|
  • DEUTSCH HD
    • ,
  • DEUTSCH HD30
DEUTSCH printed circuit board enclosures are available with through hole mounting and optional venting. DEUTSCH DT and DTM snap-in headers are available in 12, 24, 36, or 48 configurations.
More Less

Product Features

  • Protection & Strain Relief Accessory Type: Connector Enclosure

  • Operating Temperature (Max)(°C): 125

  • Operating Temperature Range(°C): -55 – 125

Available from

LADD Inc

Overview

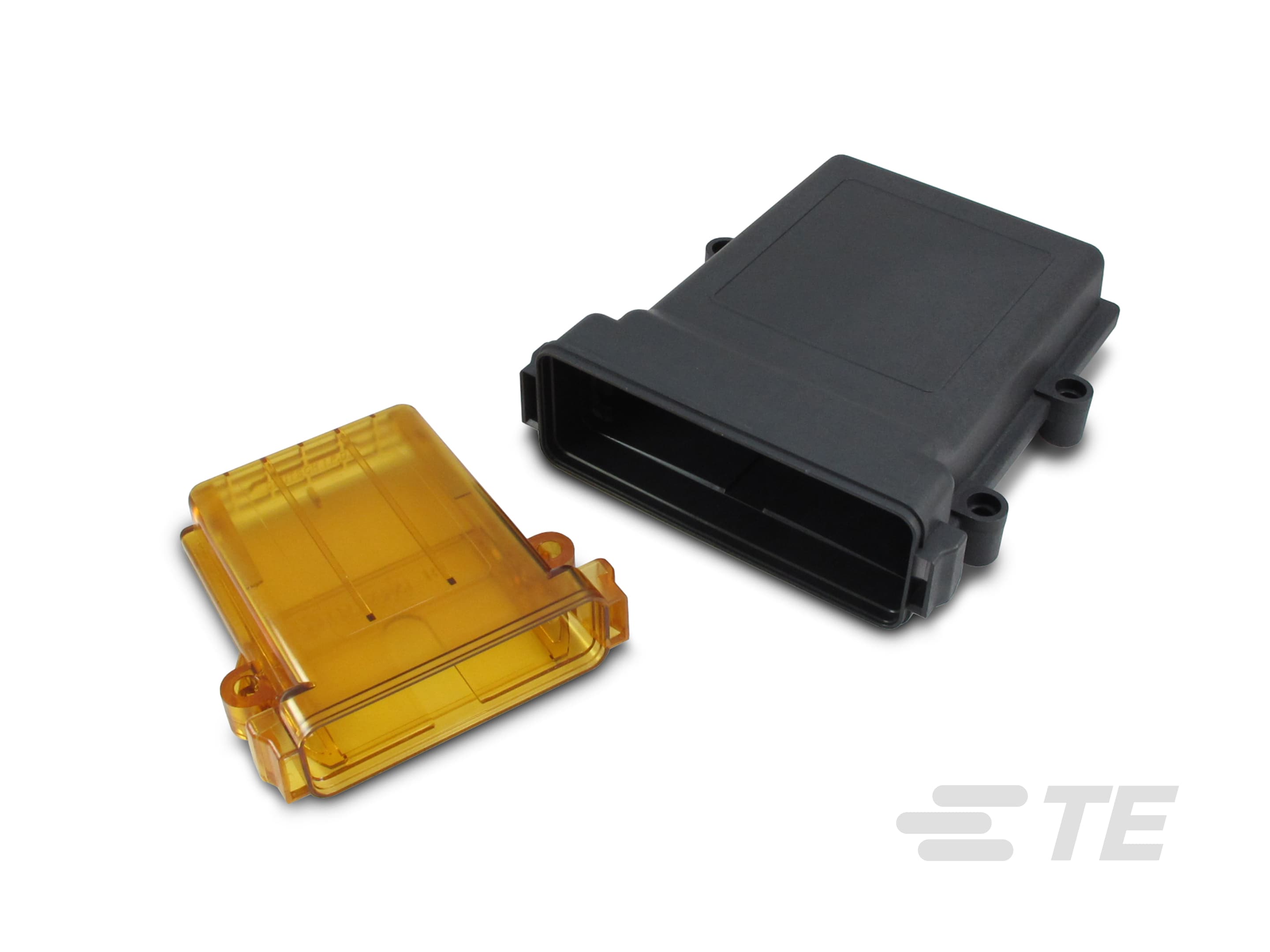

DEUTSCH PCB enclosures are complete off-the-shelf enclosure and header solutions.

DEUTSCH DT Enclosures and Headers

  • Headers accommodate DEUTSCH DT connector interfaces
  • 12, 24, 36, or 48 cavity configurations available
  • Accepts contact size 16 (13 amps)
  • 14-20 AWG (2.50-0.50 mm2)
  • Through hole mounting flange on each side of enclosure
  • Headers feature 90° pins
  • Radial flange seal provides environmental sealing
  • Optional venting

DEUTSCH DTM Enclosures and Headers

  • Headers accommodate DEUTSCH DTM connector interfaces
  • 12 or 24 cavity configurations available
  • Accepts contact size 20 (7.5 amps)
  • 14-22 AWG (2.50-0.35 mm2)
  • Through hole mounting flange on each side of enclosure
  • Headers feature 90° pins
  • Radial flange seal provides environmental sealing
  • Optional venting
  • Transparent PEI enclosures available

Learn more about DEUTSCH DT and DTM

  • VIEW ALL DEUTSCH DT PRODUCTS

    DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.

  • VIEW ALL DEUTSCH DTM PRODUCTS

    DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sealable  No

  • Protection & Strain Relief Accessory Type  Connector Enclosure

Body Features

  • Primary Product Color  Black, Natural

  • Primary Product Material  PA66 GF15, Ultem

Usage Conditions

  • Operating Temperature (Max)  125 °C [ 257 °F ]

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

Industry Standards

Packaging Features

  • Packaging Method  Package

  • Packaging Quantity  1

Reference Number

  • TE Internal Number CAT-D485-EN17
