Controls for Next-Gen Industrial Automation

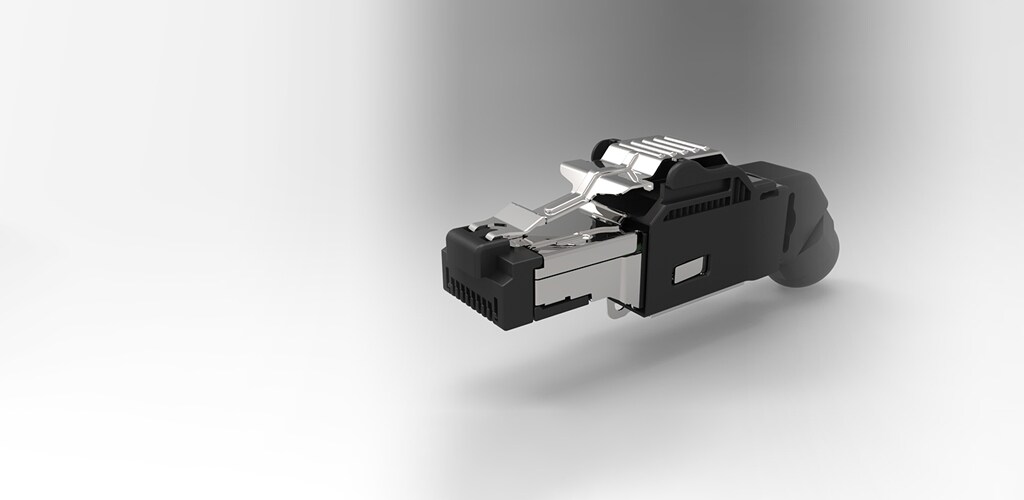

Offered in jack and plug styles and various plug configurations. Specifically engineered to terminate Ethernet cables and connect into computers, routers, LANs, and other types of data communications equipment for demanding industrial applications.

Rectangular connectors that transfer data between devices. Our (IEC 61076-3-122) portfolio consists of various board and cable connectors supporting Power over Ethernet (PoE) and data rates from 10Mbps up to 10Gbps, designed for the stringent demands of industrial environments.

Ranges from right angle and vertical posted connectors, cable connectors to the AMPLIMITE .050 series D-Sub connectors. Designed for multiple applications along with specialized accessories that will provide customers with a flexible and economical d-sub solution.

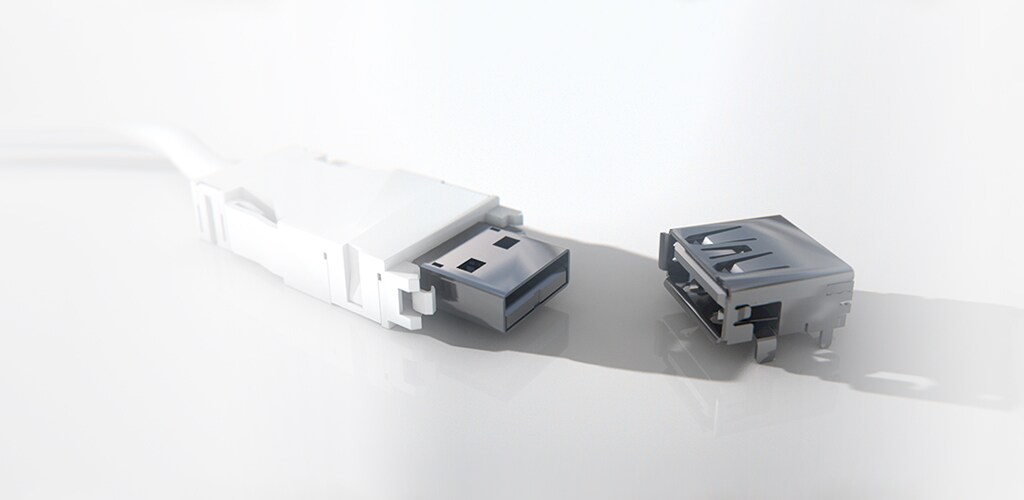

Designed for industrial USB applications where a high locking force or a sealed design is required.

Full metal shell IP67 sealed connector offers reliability, performance and field installable options for high vibration environments. 360˚ cable shield termination helps ensure the best possible data transmission speed while the gold plated crimp contacts and unique torsion free jacket crimping system helps secure a quality connection.

Reliable solution and signal standard for automation controls applications. Designed to reliably and economically meet the packaging and interconnection needs of today’s industrial environments.

Surface-mount connectors designed for parallel board stacking applications. Subminiature connectors that meet today's electronic industry requirements for high density packaging.

Available in numerous configurations depending on requirements and application, our MINIPAK connectors offer a portfolio of board-to-board power connectors designed to dliver more current using less board real estate.

Engineered for high signal integrity on printed circuit boards, our card edge connectors provide performance reliability and design flexibility for the latest PCIe protocol solutions.

Designed for next-generation CPUs for better system application scaling and higher bandwidth, we have provided PCIe Card Electromechanical (CEM) connectors from the first generation to today's 5th generation, which can address PCI-SIG PCIe CEM specifications.

ERNI MicroSpeed power modules are reliable connectors for power supply systems. Its unique property is its high current carrying capacity of up to 18 A/pin in comparison to its small dimensions. MicroSpeed Power is a 5-pin connector system with a contact pitch of 2.0 mm. A broad range of different types (orientation, blind mate option, SMT and THR options) and many different heights (5 to 20 mm) of male and female is available.

The first-class processed, robust SMC connectors with a small grid of 1.27 mm enable compact, safe and reliable connections with a high current rating and outstanding signal integrity. Data rates up to 3 Gbit/s are possible.

With the miniaturized(1 mm pitch), modular MicroSpeed connector system high transmission rates of up to 25 Gbit/s can be realized thanks to outstanding signal integrity. The space-saving, interference-proof connectors are maximally electromagnetically compatible and safe.

MicroCon connectors are predestined for demanding applications and offer high performance in an extremely compact design. These are miniaturized double-row finepitch connectors with a space-saving 0.8 mm grid dimension and available with different numbers of poles from 12 to 100.

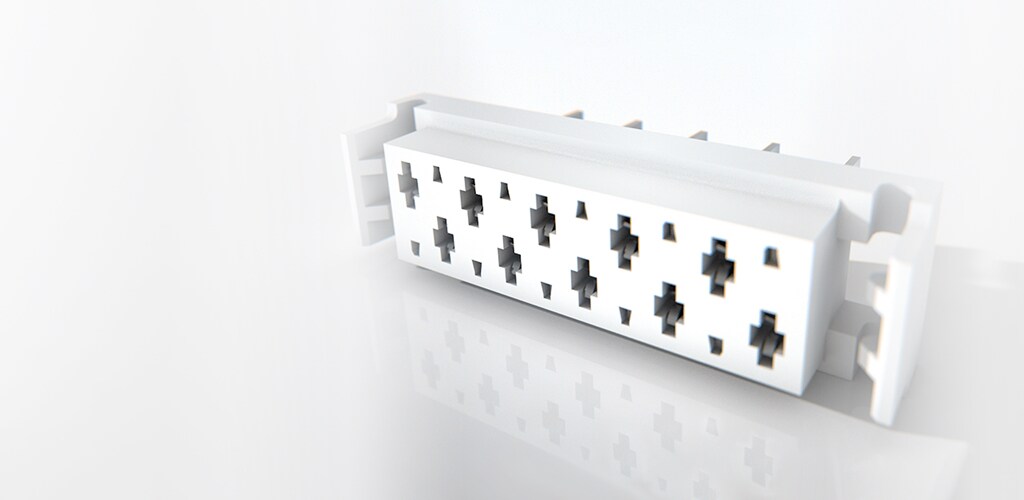

Power connectors can also carry high current by being miniaturized nevertheless. The power connector and MicroSpeed power modules differ on the basis of pins. This unshielded  power connector can provide up to 44 pins and is available in 1- or 2-row versions. Higher operating voltages are possible due to a variable distance between the contacts, providing great flexibility in the applications.

Comprehensive family of modular signal wire-to-board interconnects from 1.00 mm (0.039”) to 3.96 mm (0.156”) centerlines designed to reliably and economically meet a variety of packaging and interconnection requirements.

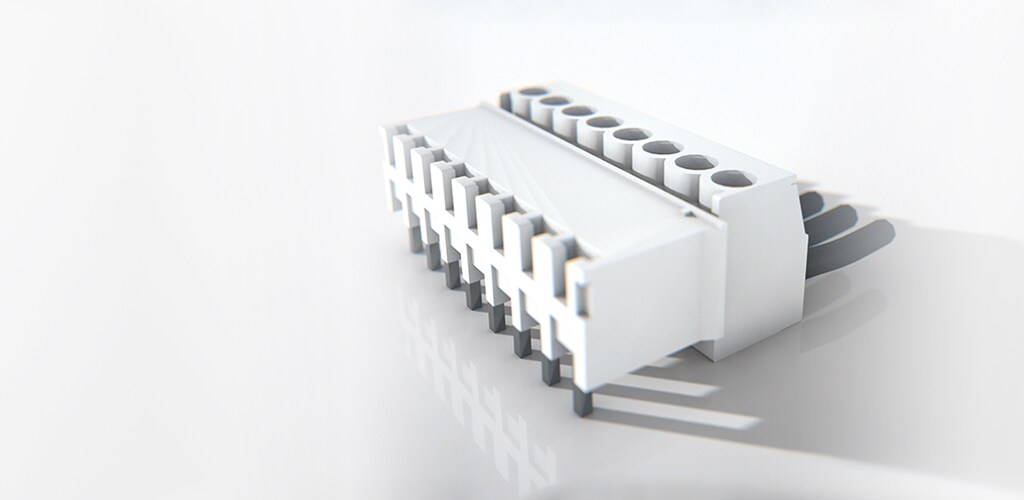

Eurostyle terminal block connectors feature various wire termination methods including rising cage clamp, wire protector, spring, IDC, and crimp snap.

Suitable for narrow spaces in small industrial equipment and machinery applications. The size of the D1000 is 80% smaller than the D1200 series with low interference risk and streamlined design. Keying and the locking feature provide reliability and reduces unexpected unmating and lever breakage in narrow spaces.

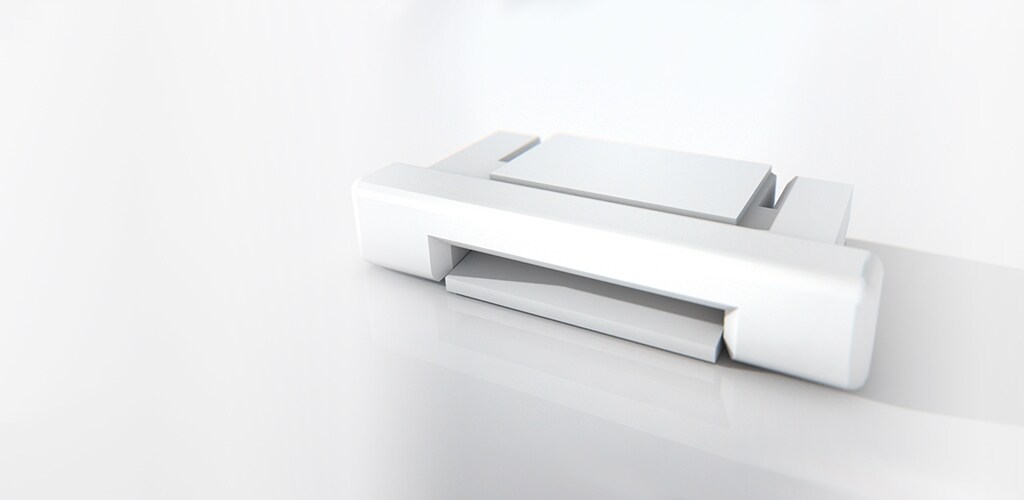

Reliable interconnects that use an actuator to secure the cable termination, and are field terminatable (require no tooling) and are available in centerline spacing of 0.25mm, 0.3mm, 0.5mm, 1.0mm, and 1.25mm, and incorporate a low profile height and light-weight features.

The first-class processed, robust SMC connectors with a small grid of 1.27 mm enable compact, safe and reliable connections with a high current rating and outstanding signal integrity. Data rates up to 3 Gbit/s are possible.

SCHRACK Miniature power PCB RYII & RYII reflow solderable relays offer several pole configurations and low component height and are especially suitable for resistive and inductive loads, seen in timers and interface technology.

SCHRACK Power PCB relays are offered in DC or AC coils with reinforced insulation and reflow versions for through-hole reflow soldering processes. RT relays are typically seen in interface modules and applications.

Miniature power PCB relays from our SCHRACK brand suited to handle high inrush currents, feature reinforced insultation and plastic materials according to IEC 60335-1 and are typically used in automation control technologies such as PLC's and power supplies.

Used in safety circuits in combination with light curtains, interlock switches, and emergency stop switches to control outputs. These are used to expand outputs for safety relay modules and safety controllers. Our SCHRACK force guided relays are engineered for reliably switching low loads by the monitoring circuit.

Insulated connections that fasten two or more wires together and have an insulating frame and a clamping system. Our broad portfolio of terminal blocks and barrier strips includes DIN Rail terminal blocks, panel mount blocks, headers and receptacles.

Engineered solderless solutions to meet your termination needs. Our terminals are offered in a variety of wire sizes from 26 AWG up to 1000 MCM and are available in ring, flag, spade, hook, flange, slotted tongue terminals, as well as parallel, closed end and butt splices.

Designed for the most rigorous use, we offer an array of flexible options including adhesive labels, heat-shrinkable sleeves, markers and hard-/software systems for onsite customization.

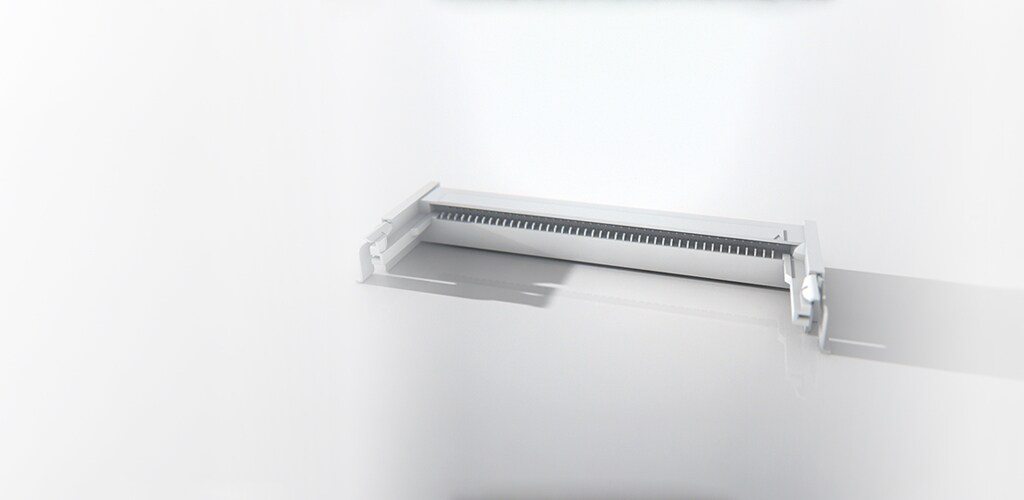

Engineered for reliable interconnection to the standard memory modules in communications equipment. Manufactured to JEDEC industry standards for single in-line memory modules (SIMM) and dual in-line memory modules (DIMM), our memory sockets provide end latches for module retention and ejection as well as mechanical voltage keying.

Cost-effective, reliable, high-performance solutions designed to withstand extreme shock, vibration, temperature, and altitude. Our portfolio includes many types of switches and switch accessories, including knobs, caps, boot seals, and hardware.

Well-established SMD and THT range of precision chip resistors encompass technology in thick film and thin film to provide high reliability and stability. They are offering various power dissipations relating to chip size, low temperature coefficient down to ± 2 PPM / °C and resistance tolerance down to ± 0.01%.
