SMART IoT HEALTH DEVICES
Application
EVERY CONNECTION. EVERY BEAT. ENABLING BETTER HEALTH.
TE supports you to overcome design challenges in miniaturization, component integration and durability.
As a global leader in antennas, connectors and sensors, TE Connectivity (TE) delivers notable wireless connectivity that enables doctors to connect with patients through smart health devices, which must perform seamlessly in critical, life-saving environments. Manufacturers looking to reduce complexity, improve cost-efficiency and optimize performance can look to TE to enable their success with an integrated solution offering and industry-leading expertise.
Flex Connectors
As the market trends towards miniaturization, FPC connectors have been developed to address the challenges of this expanding market, which often demands smaller centerline or pitch spacing, lower profile heights, and lighter interconnect solutions.
Wire-to-Board Connectors
TE’s AMP CT connector system consists of an extensive product offering and broad industry usage., including 1.5mm AMP Mini CT miniature wire-to-board interconnect solutions.
RF Connectors
An RF connector is an electrical connector that is engineered to work at radio frequencies ranging from a few MHz to over 100 GHz. RF connectors are designed to perform in rugged, challenging environments, while maintaining low insertion losses, superb voltage standing wave ratio, and other mechanical and electrical functions.
Board-to-Board: Spring Fingers
Spring fingers can be used for antenna feeds, low voltage electrical connections, or for grounding to prevent EMI noise and static caused by a speaker, motor, microphone, or any other vibration within an application.
Board-to-Board: Eurocard Connectors
Our Eurocard connector line is available in boardto- board, wire-to-board, ribbon cable-to-board and high-current connectors.
Battery Connectors
Our battery interconnects include low profile battery connectors, leaf battery connectors, and floating battery interconnection systems.
Modular Jacks
With TE’s modular jacks and plugs, you can improve EMI performance and expand system bandwidth capabilities with solutions manufactured to operate reliably in the harshest environments.
SIM Card Connectors
SIM card is widely used in a variety of mobile applications, including, billing, security and number storage purposes in mobile devices. Currently SIM card connectors are widely used in IoT related applications. We offer a variety of SIM card connectors to meet different.
USB Type C Connectors
As the next generation solution for current and future USB applications, our USB Type-C connectors are designed to an industry standard that provides a sleek, slim design small enough for handheld devices and small home appliances and robust enough for industrial applications.
Sensors
Sensors enable the Internet of Things (IoT) by collecting the data for smarter decisions. Learn how TE Connectivity (TE) sensors are used in medical applications including remote patient monitoring.
Smart Health Device Design Requirements Supported by TE Products and Expertise
- Rugged Design - Products that can withstand the daily wear and tear of consumer/user life, such as water and shock resistance, high heat, etc.
- Miniaturization - High-performance, notable miniaturized components that can save space for greater functionality within the device.
- Improved Data Connectivity - Quality omni-directional high-performance wireless transmission in a wide variety of frequencies including Bluetooth, WLAN and cellular.
- Operational Lifetime - Products that protect critical functionalities for increased operating efficiency.
- Integrated Solution Offerings - Reduce complexity, helps improve cost-efficiency, optimize performance, and increase reliability.
- Minimized Fault Tolerance - Simpler, faster, and more secure, products to enable operating capability without interruption.
Smart Health Device Applications
Some of the many possible applications
- Assisted living and telecare
- Blood pressure monitors
- Connected weight scales
- Glucose monitors
- Respiratory therapy equipment
- Smart glasses
- Smart hearing
- Smart inhalers
- Smart insulin pens
- Smart thermometers
- Smart watches
- Surveillance cameras
- Tracking tags

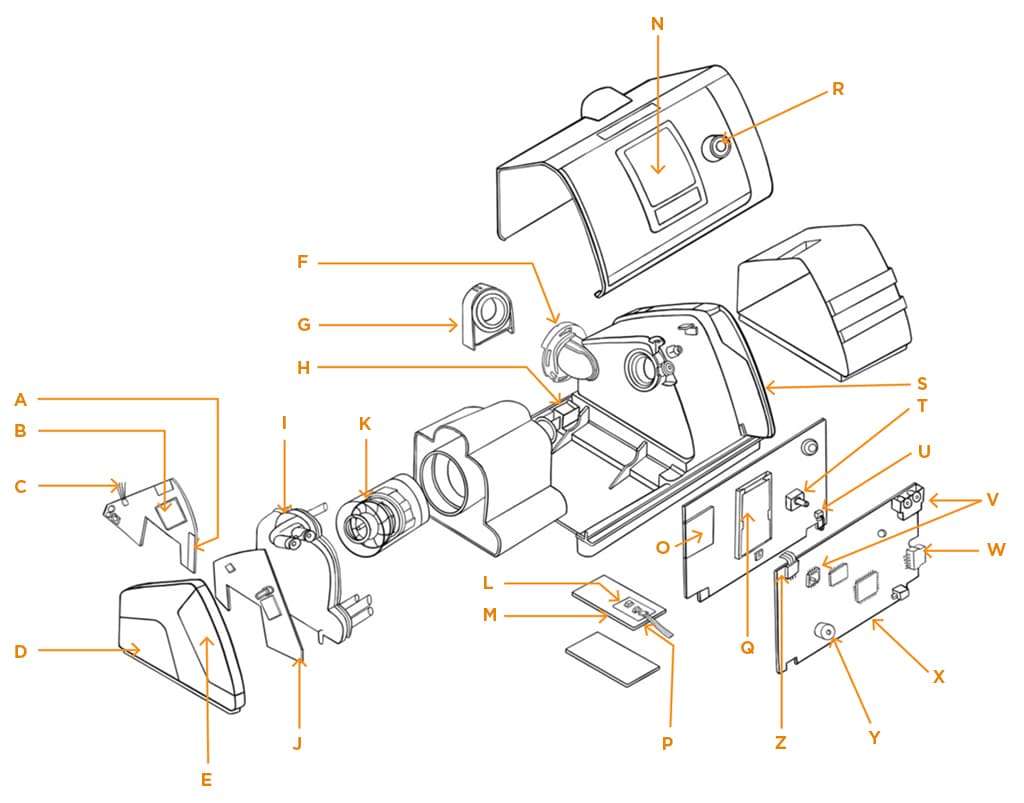

A Deeper Look Inside a Smart Health Device
Device Legend
| A. | Antenna | N. | Adapter Cover |
| B. | Wi-Fi Module |
O. | SD Card Reader |
| C. | Wire-to-Board | P. | Wire-to-Board |
| D. | Air Filter Cover |
Q. | LCD Display |
| E. | SD Card Cover |
R. | Dial |
| F. | Air Outlet |
S. | Water Tub |
| G. | Air Filter Cover |
T. | Selector Switch |
| H. | Power Inlet |
U. | Temperature Sensor Connection |
| I. | Pressure Sensor Connection |
V. | Pressure Sensors |
| J. | Smart Board |
W. | Test Port |
| K. | Fan | X. | Main Control Board |
| L. | Fuse | Y. | Buzzer |
| M. | Temperature Sensor Board |
Z. | FPC Connector |
