Please review product documents or contact us for the latest agency approval information.

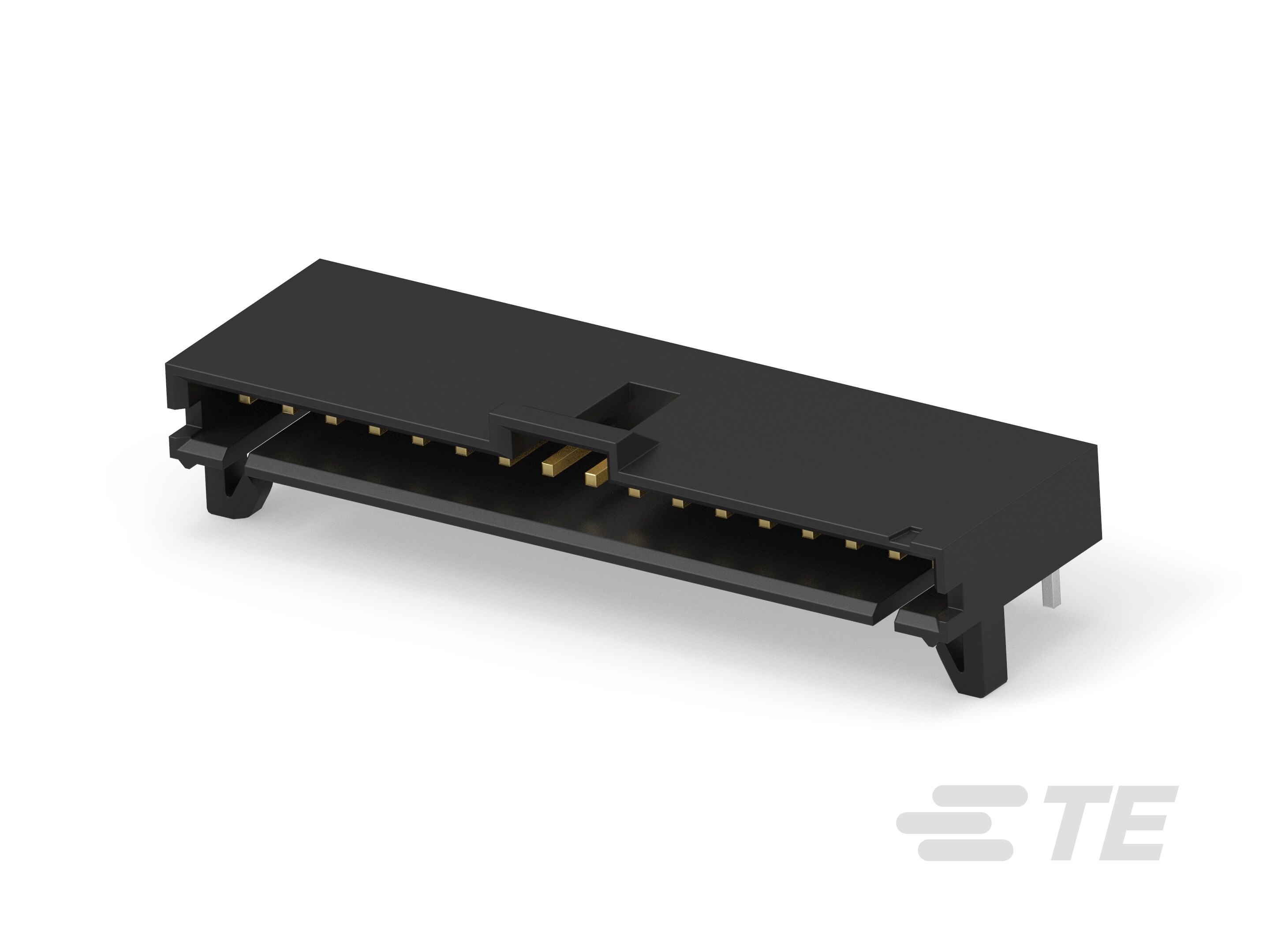

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Connector System : Wire-to-Board

• Number of Rows : 1

• Number of Positions : 17

• PCB Mount Orientation : Right Angle

• Termination Resistance (mΩ): 15

• Dielectric Withstanding Voltage (Max) (V): 600

• Insulation Resistance (MΩ): 5000

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Base Material : Brass

• PCB Contact Termination Area Plating Material : Tin-Lead

• Contact Current Rating (Max) (A): 3

• Contact Type : Pin

• Contact Shape & Form : Square

• Contact Mating Area Length : 5.84 mm [ .23 in ]

• Contact Mating Area Plating Material Thickness : .381 µm [ 15 µin ]

• Contact Mating Area Plating Material : Gold

• Termination Post & Tail Length : 3.3 mm [ .13 in ]

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• PCB Mount Retention Type : Hold-Down

• Mating Alignment Type : Polarization, Latched

• PCB Mount Retention : With

• Mating Alignment : With

• Mating Retention : With

• Mating Retention Type : Hold-Down

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Housing Material : Thermoplastic

• Connector Height : 6.99 mm [ .275 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Connector Length : 45.72 mm [ 1.8 in ]

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Flammability Rating : UL 94V-0
