Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

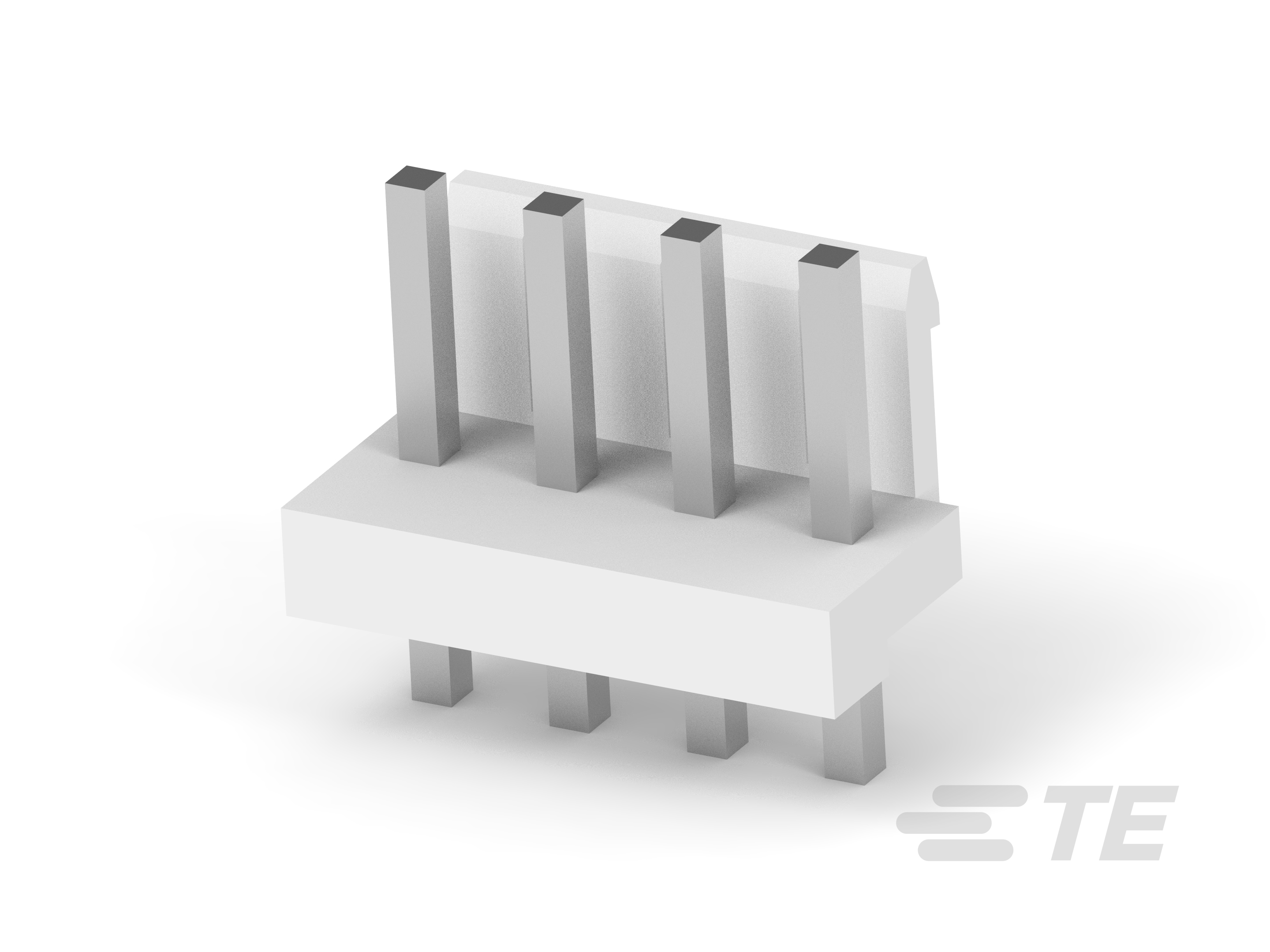

• Connector Shape : Rectangular

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Partially Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Power Positions : 4

• Number of Loaded Positions : 4

• PCB Mount Orientation : Vertical

• Number of Positions : 4

• Number of Rows : 1

• Housing Material : PBT GF

• Centerline (Pitch) : 3.96 mm [ .156 in ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Brass

• Contact Mating Area Length : 7.7 mm [ .303 in ]

• Contact Layout : Inline

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 1 µm [ 39.37 µin ]

• Contact Mating Area Plating Material Thickness : 1 µm [ 39.37 µin ]

• Contact Size : 1.14mm

• Contact Underplating Material Thickness : .8 – 1.8 µm [ 31.5 – 70.86 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Contact Current Rating (Max) (A): 8

• Square Termination Post & Tail Dimension : 1.14 mm [ .045 in ]

• Termination Post & Tail Length : 3.7 mm [ .146 in ]

• Termination Method to PCB : Through Hole - Solder

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Locking Tab

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Connector Profile : Low

• Primary Product Color : Natural

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Glow Wire Rating : Standard Part - Not Glow Wire

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 30

• Packaging Method : Tube

• Connector Length : 15.78 mm [ .621 in ]

• Connector Height : 9.2 mm [ .36 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Connector Width : 8.5 mm [ .334 in ]

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Circuit Application : Power
