1-1337443-0

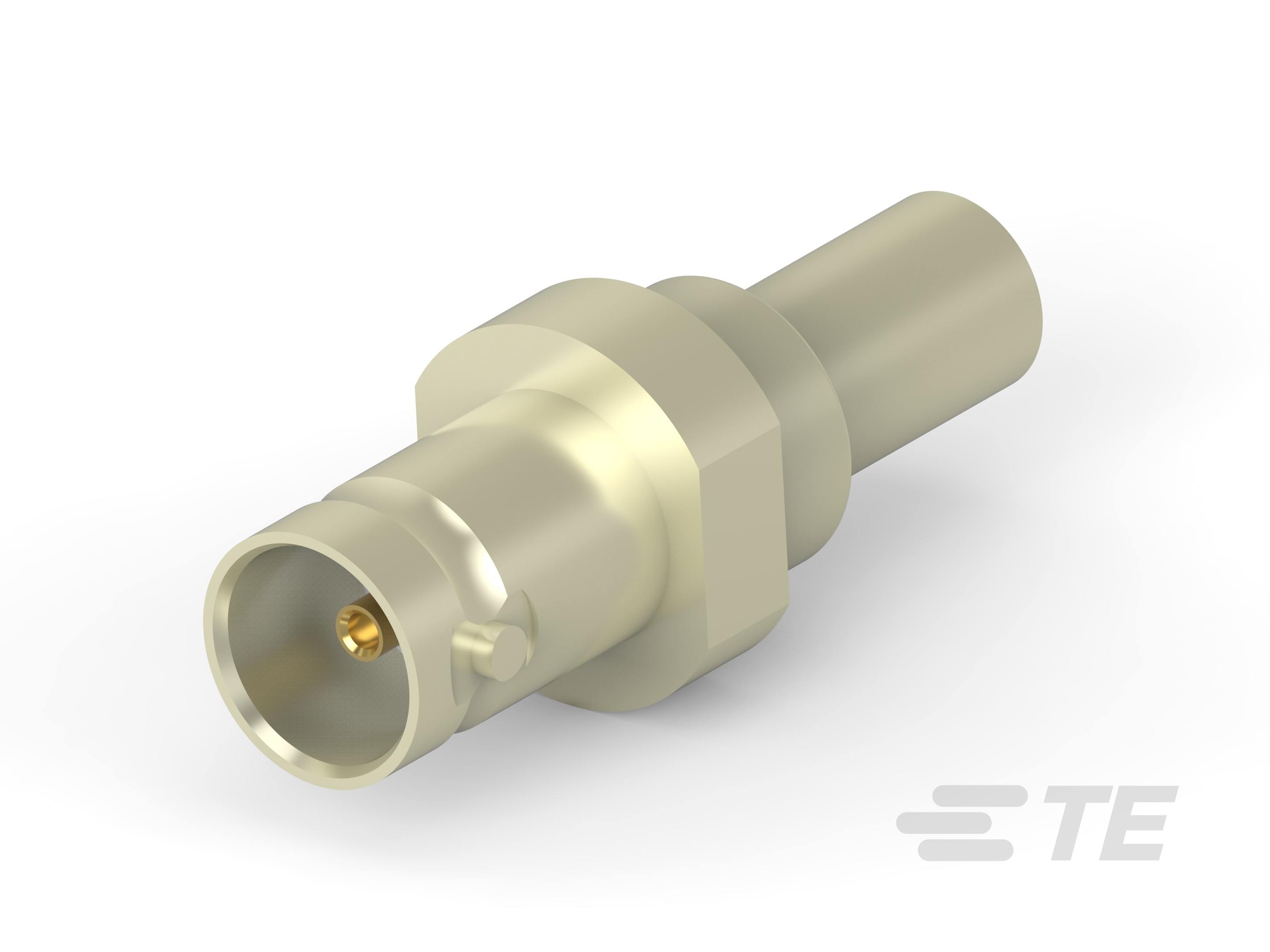

BNC Connector, Jack, 75 ohm, Bayonet, 2 GHz, Cable-to-Cable, 1 Position, Wire & Cable, -65 – 165 °C [-85 – 329 °F], Crimp, Straight, Brass, Nickel
1-1337443-0
BNC Connector, Jack, 75 ohm, Bayonet, 2 GHz, Cable-to-Cable, 1 Position, Wire & Cable, -65 – 165 °C [-85 – 329 °F], Crimp, Straight, Brass, Nickel
- TE Internal #: 1-1337443-0
- TE Internal Description: BNC Str Jk Hex 75Ohm Nickel Pltd RG59B/U
-
RF Interface : BNC
-
RF Connector Style : Jack
-
RF Connector Mated Outer Diameter (Approximate) : 14.53 mm [ .572 in ]
-
Impedance (Ω): 75
-
Compatible With RF Cable Type : RG 59B, RG 210, URM 90, RG 140, Raychem 9524A1311, Raychem 9524A1811, RG 62A
Documents
Product Drawings
- BNC STRAIGHT JACK CRIMP 75 OHM RG59B/U, 62A/U, 140/U, 210/U, URM90, KX6A, KX25, KX52, KX53 English
- BNC STRAIGHT JACK CRIMP 75 OHM RG59B/U, 62A/U, 140/U, 210/U, URM90, KX6A, KX25, KX52, KX53 ENG_CD_1337443_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1337443-0_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1337443-0_C.2d_dxf.zip English
- ENG_CVM_CVM_1-1337443-0_C.3d_igs.zip English
- ENG_CVM_CVM_1-1337443-0_C.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-2462_A.pdf English
