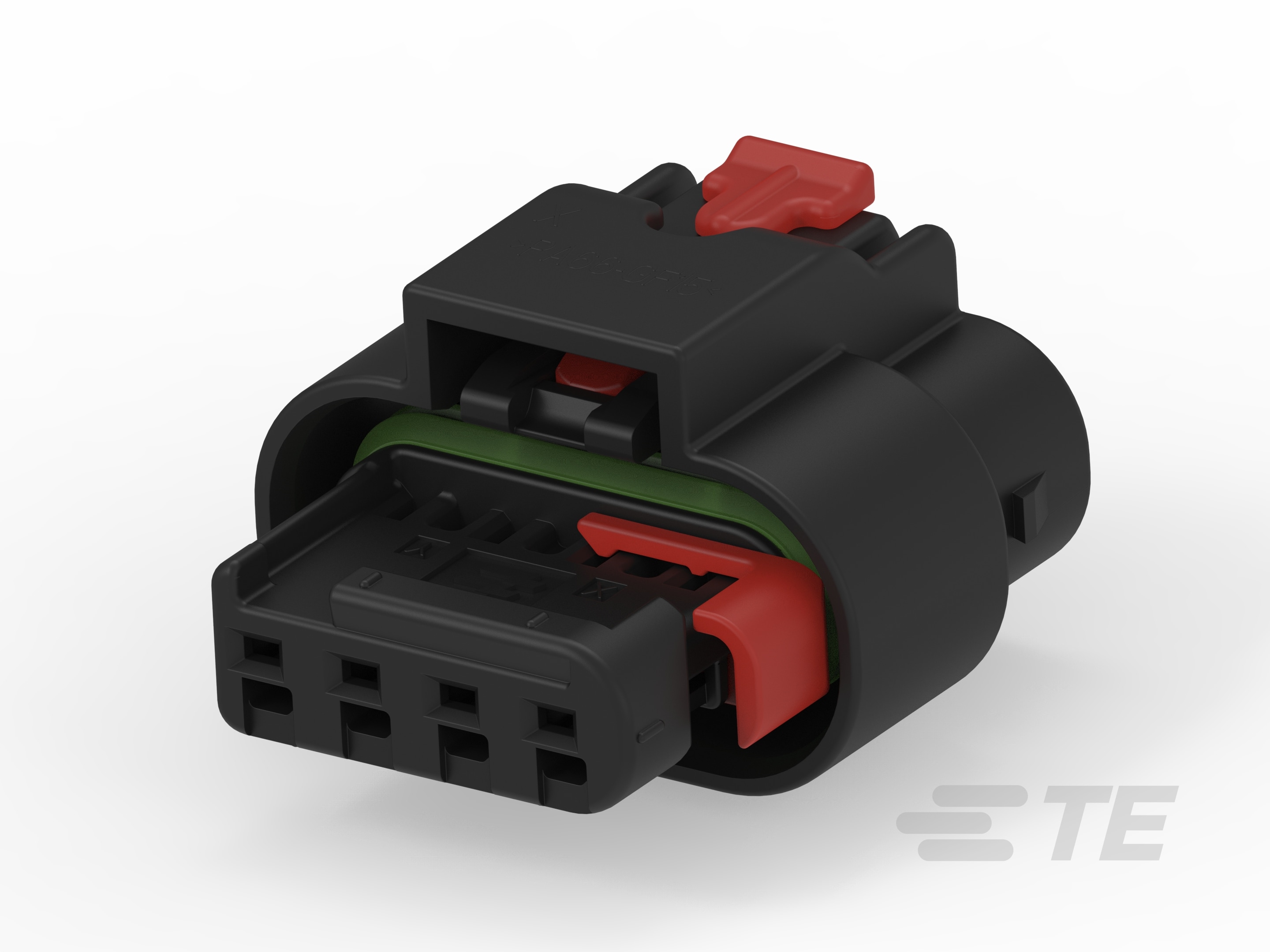

4 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.15 in] Centerline, Sealable, Black, Wire & Cable, Signal, MCON 1.2mm
1-1456426-5
4 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.15 in] Centerline, Sealable, Black, Wire & Cable, Signal, MCON 1.2mm
-
- MCON
- MCON 1.2mm
- TE Internal #: 1-1456426-5
- TE Internal Description: 4POS, MCON 1.2 CB REC 2p TL SEALED
-
Number of Positions : 4
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.2 mm [ .04 in ]
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 4 mm [ .15 in ]
Documents
Product Drawings
- CONNECTOR ASSEMBLY, FEMALE, 4 POSITION SEALED, 1.2mm STANDARD LATCH VERSION ENG_CD_1456426_B6.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1456426-5_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1456426-5_B.2d_dxf.zip English
- ENG_CVM_CVM_1-1456426-5_B.3d_igs.zip English
- ENG_CVM_CVM_1-1456426-5_B.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-8928_E.pdf English
- ENG_SS_408-8968_C.pdf English
