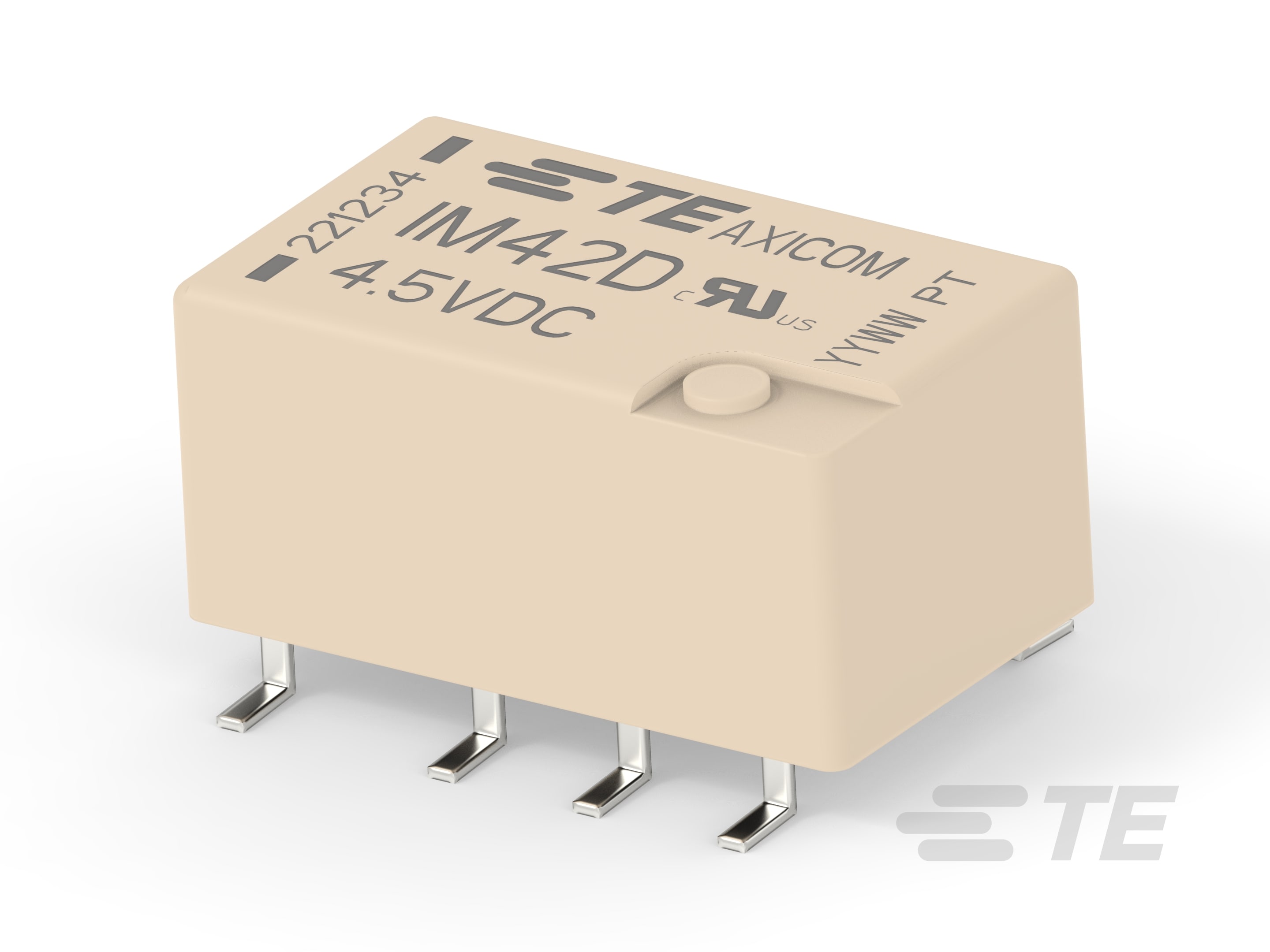

IM42DGR

Active

General Purpose Signal Relay, DC, Bistable, 1 Coil, 2 Form C DPDT-CO, 5 A Contact Rating, 4.5 VDC Coil Voltage, 250 VAC Contact Voltage, Axicom IM

IM42DGR

Active

General Purpose Signal Relay, DC, Bistable, 1 Coil, 2 Form C DPDT-CO, 5 A Contact Rating, 4.5 VDC Coil Voltage, 250 VAC Contact Voltage, Axicom IM

- Axicom
- Axicom IM

TE Internal #: 1-1462039-9
TE Internal Description: IM42DGR=IM RELAY 100mW 4.5V BIS
All Standard Signal Relay 2 Form C,2 CO Cont (72)

Relay & Contactor Type : General Purpose Signal Relay
Current Type : DC
Coil Magnetic System : Bistable, 1 Coil
Contact Arrangement : 2 Form C DPDT-CO
Contact Current Rating (A): 5

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

IM2-G-Relay ENG_CD_1462037-2_A10_1462037-2.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1-1462039-9_F.pdf 3D
3D_CVM_CVM_1462037-2_A.pdf 3D
Customer View Model ENG_CVM_CVM_1462037-2_A.2d_dxf.zip English
ENG_CVM_CVM_1462037-2_A.3d_igs.zip English
ENG_CVM_CVM_1462037-2_A.3d_stp.zip English
ENG_CVM_CVM_1-1462039-9_F.3d_igs.zip English
ENG_CVM_CVM_1-1462039-9_F.3d_stp.zip English
ENG_CVM_CVM_1-1462039-9_F.2d_dxf.zip English

Datasheets & Catalog Pages

Axicom Signal and High Frequency Relays (RF Switches) APPLICATION NOTE #2 ENG_CS_1-1773931-3-Axicom-AppNote2_718.pdf English
IM_Datasheet ENG_DS_108-98001_4.pdf English

Product Specifications

Definitions General Purpose Relays ENG_SS_Definitions_Relays_2.pdf English

Agency Approvals

VDE Certificate ENG_AAD_VDE_CERT_40047930_C1_8.pdf English

UL ENG_AAD_UL_CERT_E214025_20000427_C1_4.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Relay & Contactor Type : General Purpose Signal Relay

Configuration Features

Contact Number of Poles : 2
Relay Options : RF Rated
Contact Special Features : Bifurcated/Twin Contacts, Gull Wing
Contact Arrangement : 2 Form C DPDT-CO

Electrical Characteristics

Insulation Initial Resistance (MΩ): 1000000
Coil Resistance (Ω): 203
Voltage Standing Wave Ration (HF Parameter) : 1.06db @ 100MHz, 1.49db @ 900MHz
Contact Switching Load (Min) : .1mA @ .0001V
Contact Switching Voltage (Max) (VAC): 250
Contact Switching Voltage (Max) (VDC): 220
Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 750
Insulation Initial Dielectric Between Open Contacts (Vrms): 750
Contact Limiting Breaking Current (A): 5
Contact Limiting Continuous Current (A): 5
Contact Limiting Making Current (A): 5
Contact Limiting Short-Time Current (A): 5
Contact Current Rating (A): 5
Coil Voltage Rating (VDC): 4.5
Contact Voltage Rating (VAC): 250
Contact Voltage Rating (VDC): 220
Coil Power Rating DC (W): .1
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 1500

Signal Characteristics

Insertion Loss (HF Parameter) : -.03dB @ 100MHz, -.33dB @ 900MHz
Isolation (HF Parameter) : -18.8dB @ 900MHz, -37dB @ 100MHz

Body Features

Product Weight : .75 g [ .026 oz ]
Enclosure Type : Hermetically Sealed

Contact Features

Contact Material : AgNi
Contact Plating Material : Gold

Termination Features

Main Termination & Connection Type : PCB SMT
Coil Termination & Connection Type : PCB SMT

Mechanical Attachment

Product Mount Type : Board Mount

Dimensions

Product Height : 5.65 mm [ .222 in ]
Product Length : 10 mm [ .393 in ]
Product Width : 6 mm [ .236 in ]

Usage Conditions

Environmental Category of Protection : RTV
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

Operation/Application

Performance Type : High Current
Solder Process : Reflow Solder Capable
Current Type : DC
Coil Magnetic System : Bistable, 1 Coil

Packaging Features

Packaging Method : Reel

Other

Environmental Ambient Temperature Class (°C): 70 – 85
Contact Current Class (A): 0 – 5
Coil Power Rating Class (W): .05 – .3
Height Class (Mechanical) (mm): 0 – 6
Length Class (Mechanical) (mm): 0 – 10
Width Class (Mechanical) (mm): 0 – 6
