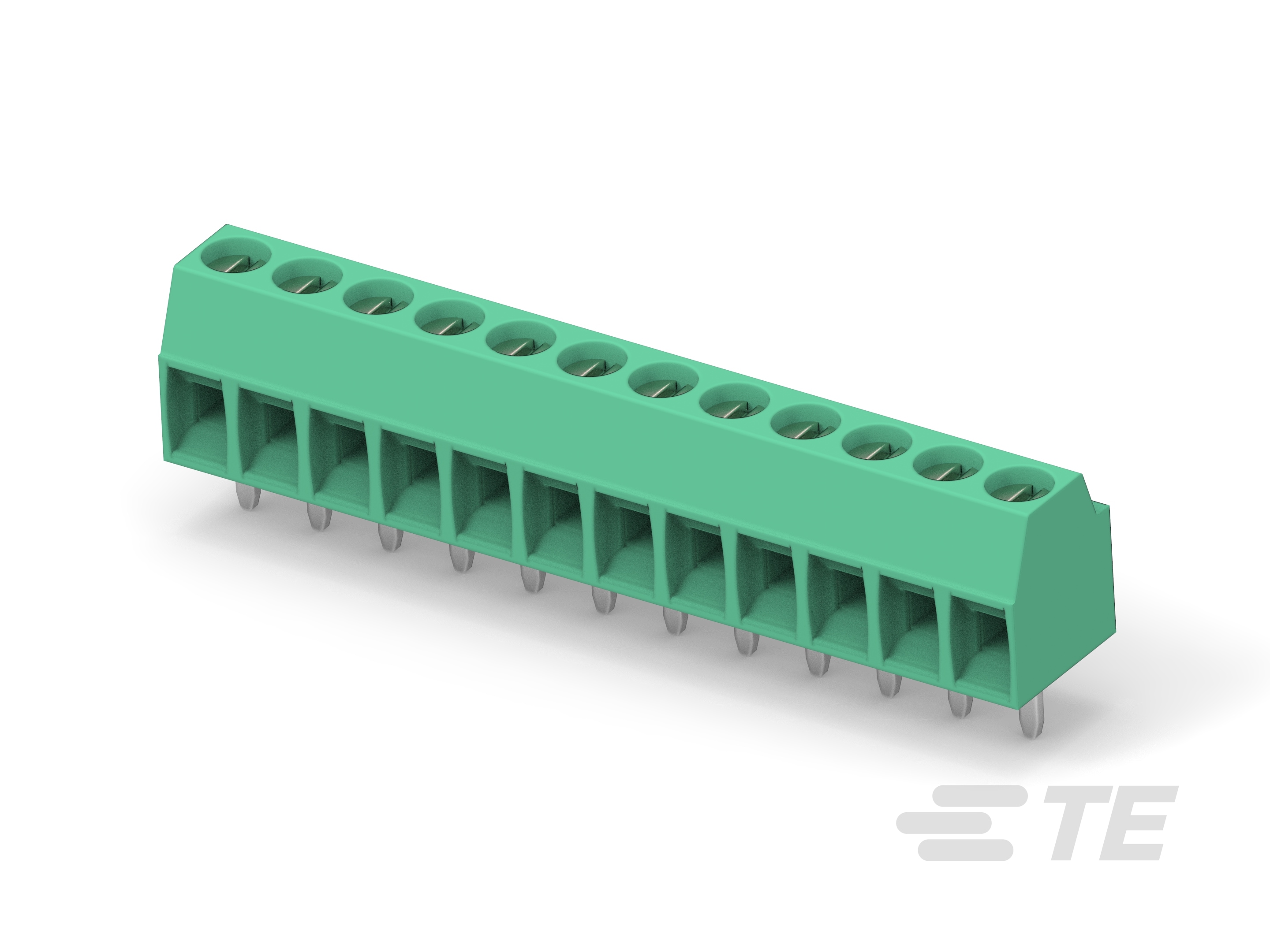

Header, Wire-to-Board, 12 Position, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 16 AWG Wire Size, PCB Terminal Blocks
1-1546551-2
Header, Wire-to-Board, 12 Position, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 16 AWG Wire Size, PCB Terminal Blocks
-
- Buchanan
- TE Internal #: 1-1546551-2
- TE Internal Description: 12P,STRAIGHT,SIDE ENTRY,3.5MM
-
Packaging Method : Tray
-
Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]
-
Primary Product Color : Green
-
Connector & Contact Terminates To : Printed Circuit Board
Documents
Product Drawings
- TERMINAL BLOCK, PCB MOUNT, STRAIGHT, 8.5mm PROFILE, SIDE WIRE ENTRY, 3.5mm PITCH ENG_CD_1546551_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1546551-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1546551-2_B.2d_dxf.zip English
- ENG_CVM_CVM_1-1546551-2_B.3d_igs.zip English
- ENG_CVM_CVM_1-1546551-2_B.3d_stp.zip English
Datasheets & Catalog Pages
- 1-1773458-1_EURO_STYLE_TERMINAL_BLOCKS_QRG ENG_DS_1-1773458-1_EURO_STYLE_QRG_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-20079_F.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
