Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

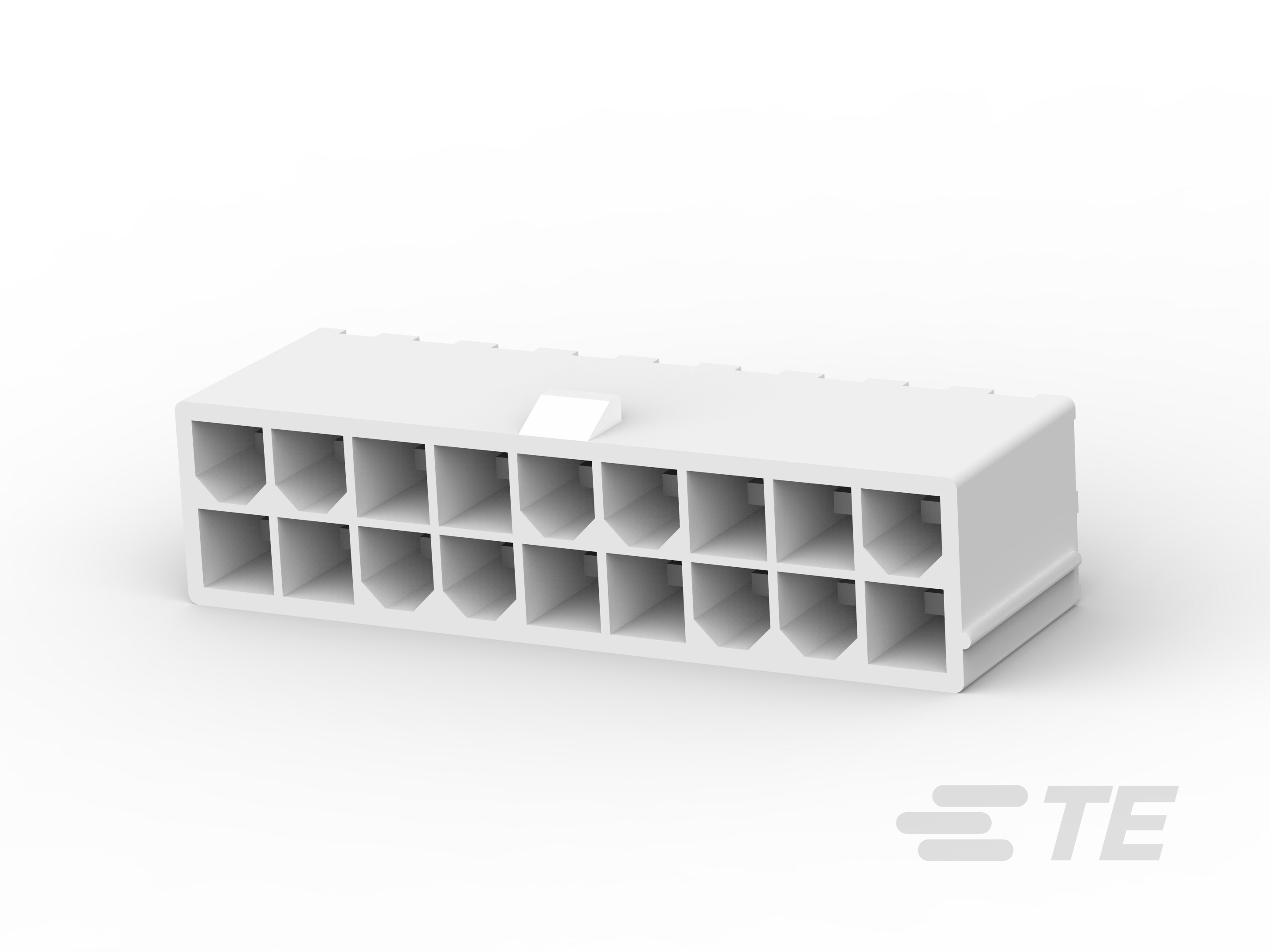

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Connector Shape : Rectangular

• Connector System : Wire-to-Board

• Number of Loaded Positions : 18

• Number of Rows : 2

• Number of Power Positions : 18

• Number of Positions : 18

• PCB Mount Orientation : Vertical

• Operating Voltage (VAC): 600

• Primary Product Color : Natural

• PCB Contact Termination Area Plating Material Thickness : 2.03 µm [ 80 µin ]

• Contact Underplating Material Thickness : .381 µm [ 15 µin ]

• Contact Base Material : Brass Alloy

• PCB Contact Termination Area Plating Material : Tin

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 9

• Contact Type : Tab

• Contact Layout : Matrix

• Contact Mating Area Plating Material Thickness : 2.03 µm [ 80 µin ]

• Contact Mating Area Plating Material : Tin

• Termination Post & Tail Length : 3.5 mm [ .138 in ]

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• Mating Alignment Type : Keyed

• PCB Mount Retention : Without

• Mating Alignment : With

• Mating Retention : With

• Mating Retention Type : Locking Tab

• Centerline (Pitch) : 4.2 mm [ .165 in ]

• Housing Material : Nylon

• Connector Height : 12.8 mm [ .504 in ]

• Row-to-Row Spacing : 4.2 mm [ .165 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Connector Length : 39 mm [ 1.535 in ]

• Connector Width : 9.75 mm [ .384 in ]

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Circuit Application : Power

• Compatible With Approved Standards Products : UL E28476

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-2

• Glow Wire Rating : Standard Part - Not Glow Wire

• UL Rating : Recognized
