Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

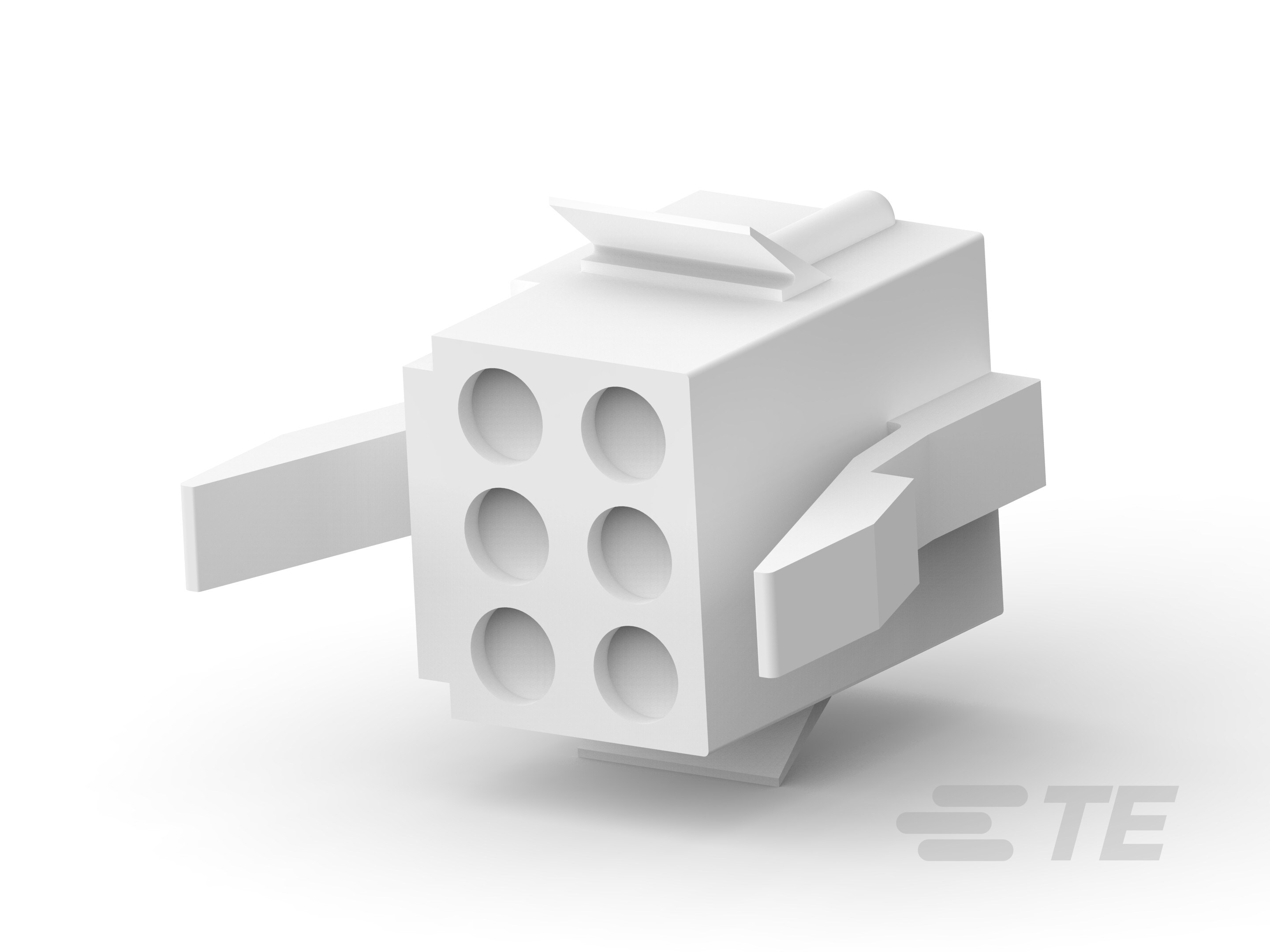

• Connector Product Type : Housing

• Connector & Housing Type : Plug

• Connector System : Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 6

• Number of Rows : 2

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Natural

• Contact Type : Socket

• Contact Retention Within Housing : Without

• Termination Method to Wire & Cable : Crimp

• Panel Mount Feature Type : Locking Leg

• Panel Mount Feature : With

• Connector Mounting Type : Panel Mount

• Housing Material : Nylon

• Centerline (Pitch) : 5.1 mm [ .202 in ]

• Connector Length (mm): 19.4

• Connector Height (mm): 21.6

• Connector Width (mm): 16.51

• Panel Thickness (Recommended) : .64 – 1.65 mm [ .025 – .065 in ]

• Row-to-Row Spacing : 6.1 mm [ .24 in ]

• Operating Temperature Range : 0 – 105 °C [ 32 – 221 °F ]

• Circuit Application : Power & Signal

• Circuit Identification Feature : With

• Glow Wire Rating : Standard Part - Not Glow Wire

• CSA Rating : LR 16455

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Certified, Recognized

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-2
