1-1718485-3

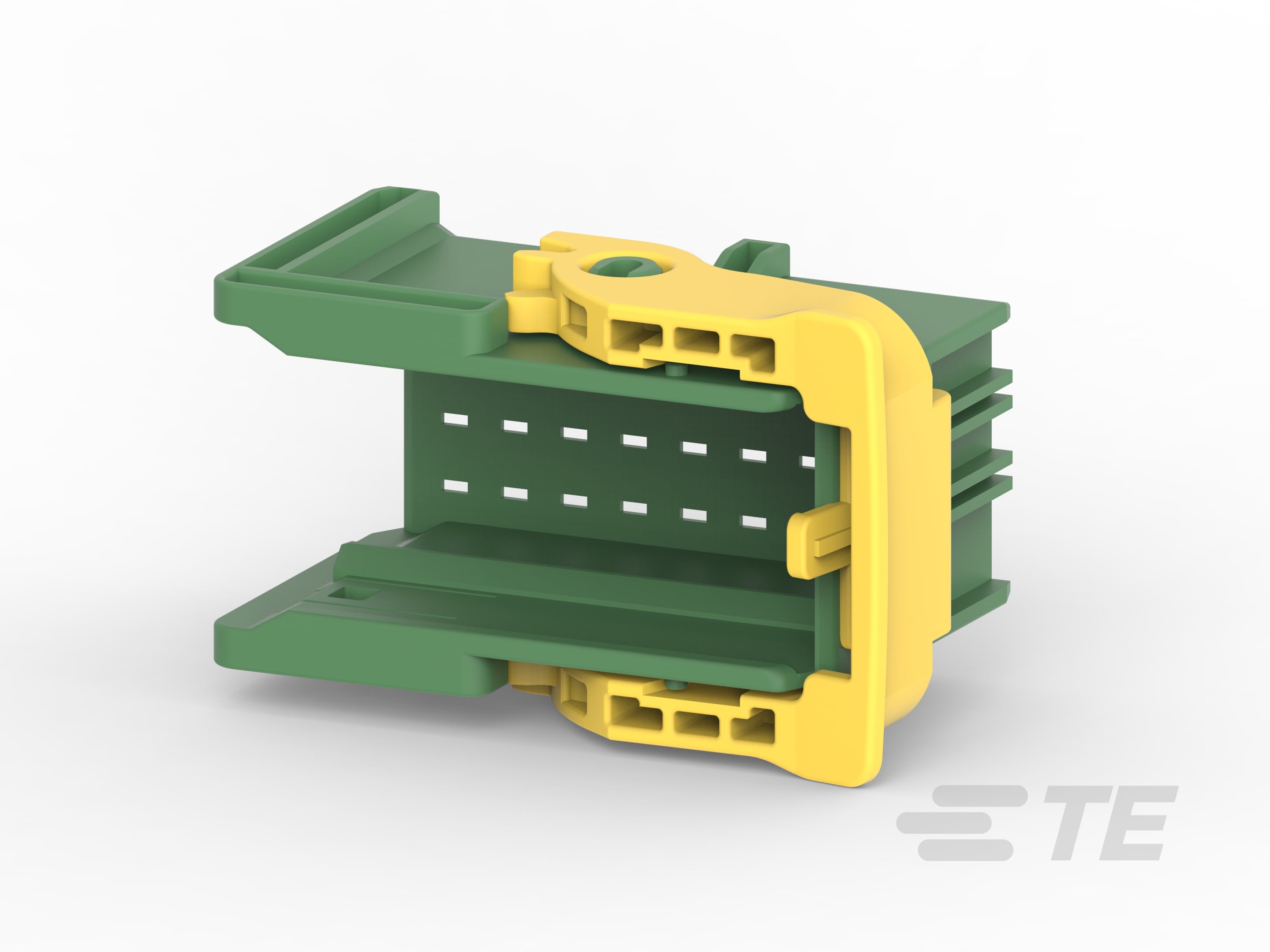

Cover Assembly, Cable Exit Angle 180°, Green, PBT GF, 36 Position, AMP MCP Connector System, Automotive Connector Caps & Covers
1-1718485-3
Cover Assembly, Cable Exit Angle 180°, Green, PBT GF, 36 Position, AMP MCP Connector System, Automotive Connector Caps & Covers
-
- AMP
- AMP MCP Connector System
- TE Internal #: 1-1718485-3
- TE Internal Description: CARRIER FOF RECEPT INSERTS 36 POS
- All AMP Carrier for Receptacle Inserts (14)
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
-
Primary Product Color : Green
-
Primary Product Material : PBT GF
-
Operating Temperature (Max) (°C): 100, 110, 90, 80, 75, 70, 120, 105, 85
-
Operating Temperature (Max) (°F): 158, 185, 176, 167, 194, 212, 248, 230, 221
Documents
Product Drawings
- CARRIER FOR AMP MCP1.5K RECEPTACLE INSERTS , 36POS. ENG_CD_1718485_D2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1718485-3_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1718485-3_D.2d_dxf.zip English
- ENG_CVM_CVM_1-1718485-3_D.3d_igs.zip English
- ENG_CVM_CVM_1-1718485-3_D.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18663_B.pdf German
- Product Specification ENG_SS_108-18957_B.pdf English
