1-172163-9

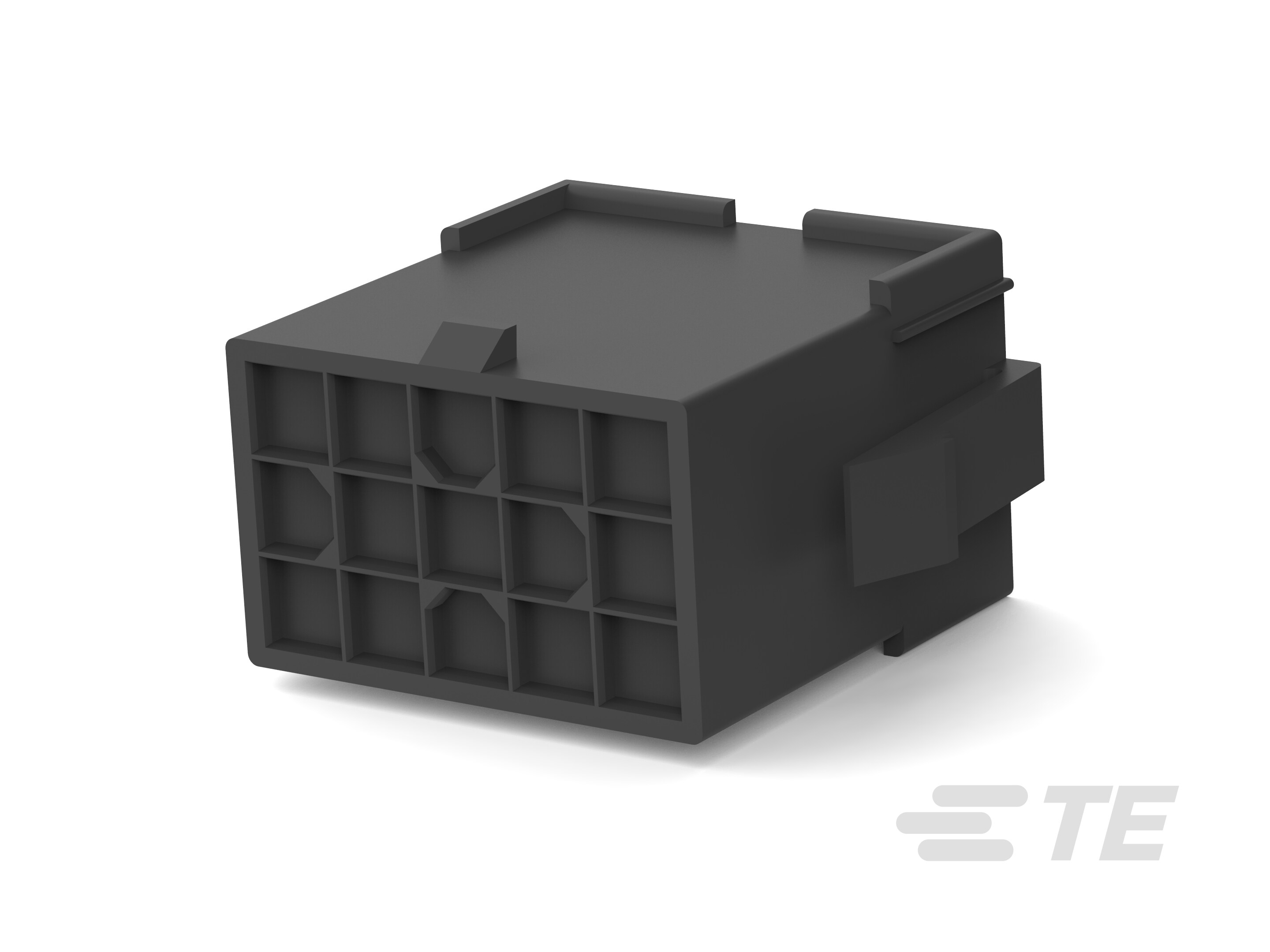

Housing, Receptacle, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, Mini-Universal MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
1-172163-9
Housing, Receptacle, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, Mini-Universal MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
-
- MATE-N-LOK
- Mini-Universal MATE-N-LOK
- TE Internal #: 1-172163-9
- TE Internal Description: MINI UNIVERSAL M-N-L CAP 15P
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Panel, Wire-to-Wire
-
Contact Retention Within Housing : Without
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-172163-9_L.pdf 3D
- Customer View Model ENG_CVM_CVM_1-172163-9_L.2d_dxf.zip English
- ENG_CVM_CVM_1-172163-9_L.3d_igs.zip English
- ENG_CVM_CVM_1-172163-9_L.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-16017_R.pdf English
- Engineering Report ENG_SS_502-160177_C.pdf English
- Product Specification S_108-5138_J2.tif English
- ENG_SS_108-5138_J2.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-16017_A.pdf English
- Instruction Sheet (non U.S.) JPN_SS_411-5105_A1.pdf Japanese
- JPN_SS_411-5105_A1.tif Japanese
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_19801202_C1_5.pdf English
- CSA Certificate ENG_AAD_CSA_CERT_164196_6233_1839066_C1_B1.pdf English
