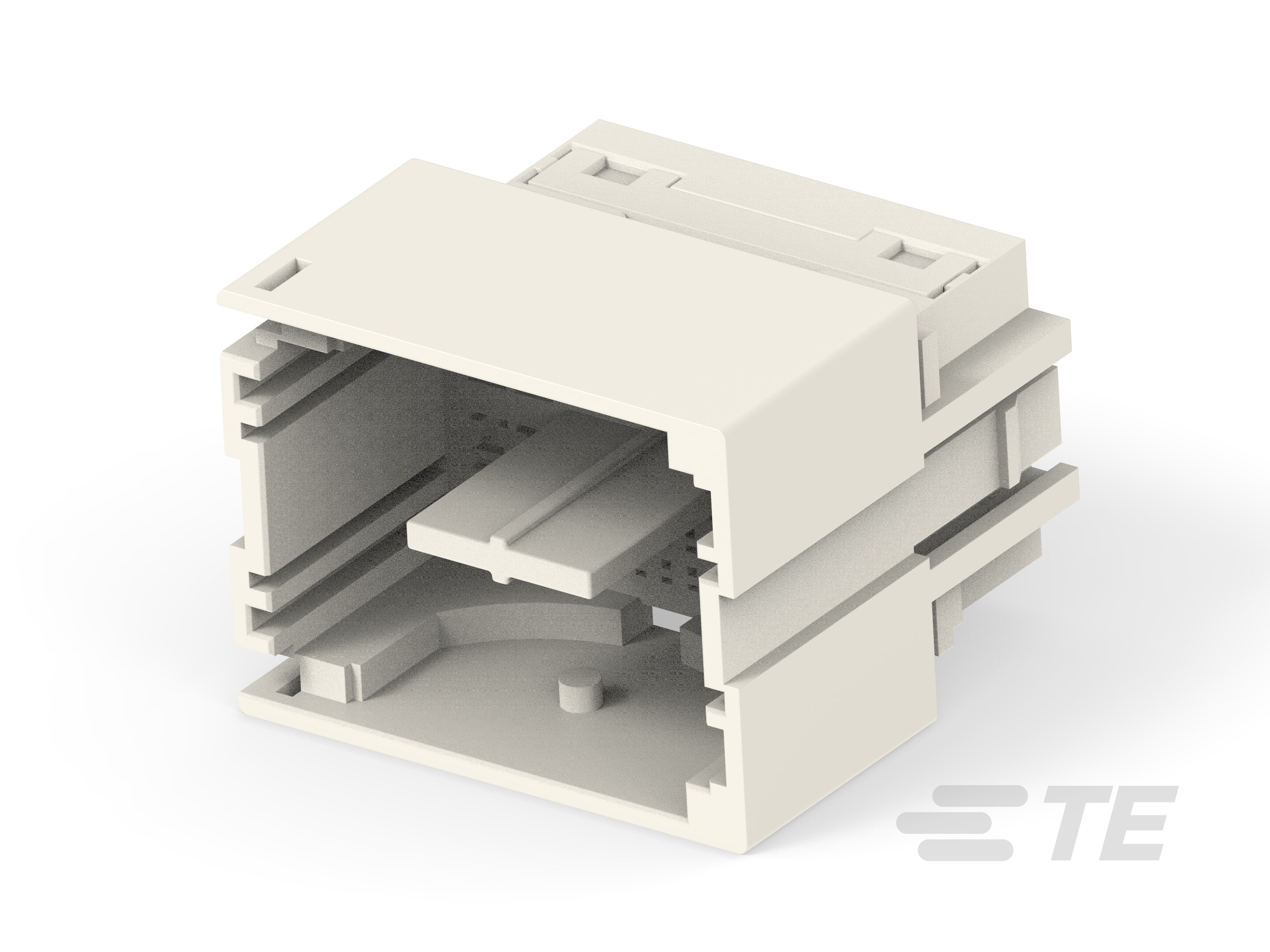

56 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.2 mm / 4 mm [.087 in / .157 in] Centerline, White, Wire & Cable, Power & Signal
1-1897551-1
56 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.2 mm / 4 mm [.087 in / .157 in] Centerline, White, Wire & Cable, Power & Signal
- TE Internal #: 1-1897551-1
- TE Internal Description: 025/090 HYB 56P CAP ASSY(TH)
-
Number of Positions : 56
-
Connector & Housing Type : Housing for Male Terminals
-
Mating Tab Width (mm): .64, 2.3
-
Mating Tab Width (in): .025, .09
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) (mm): 2.2, 4
-
Centerline (Pitch) (in): .087, .157
Documents
Product Drawings
- 025/090 HYB 56P CAP ASS'Y(LIF) English
- 025/090 HYB 56P CAP ASS'Y(LIF) ENG_CD_1897551_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1897551-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1897551-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1-1897551-1_A.3d_igs.zip English
- ENG_CVM_CVM_1-1897551-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-61030_B4.pdf English
