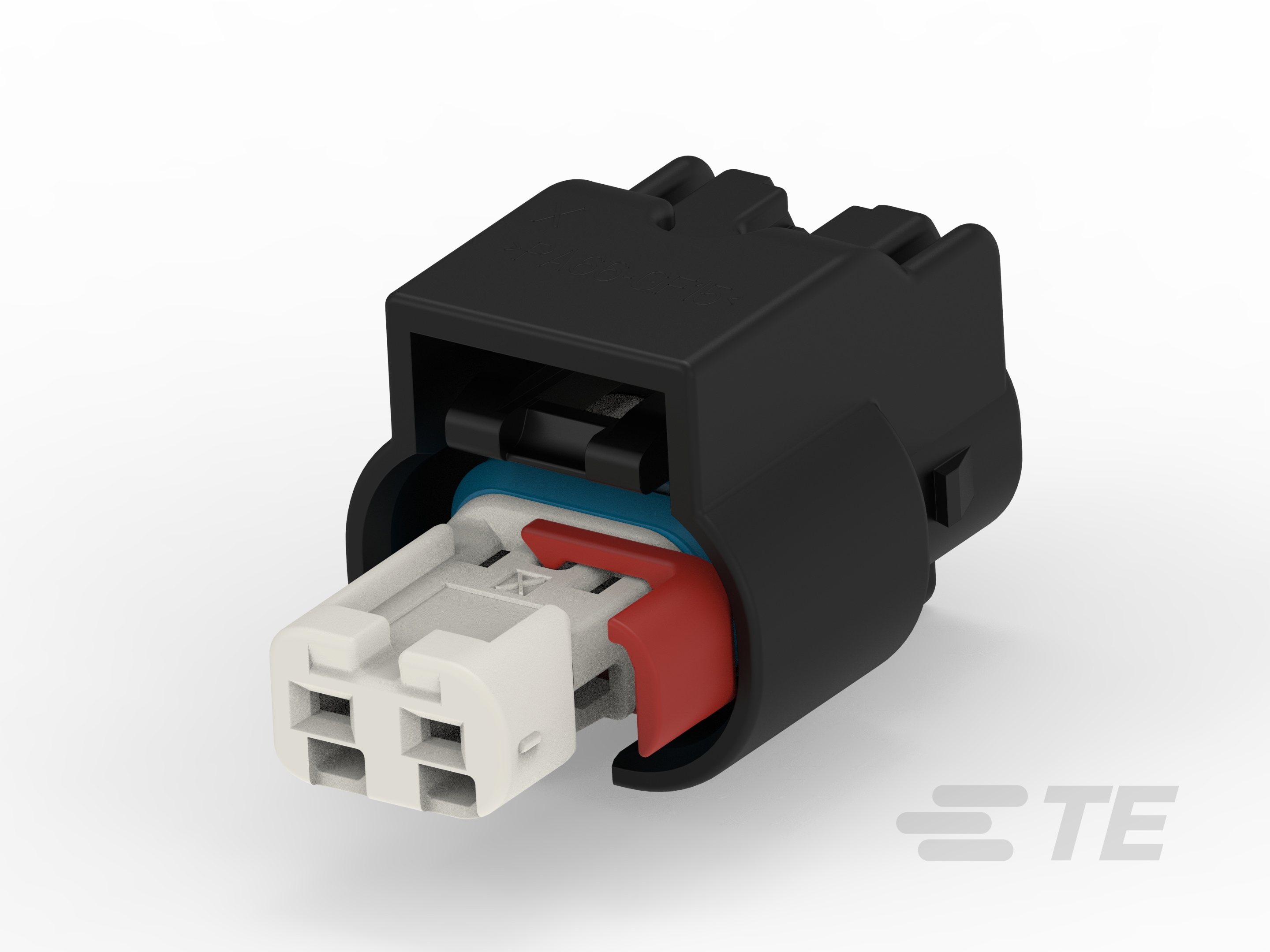

Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 2 Position, 4 mm [.157 in] Centerline, Sealable, Black, MCON 1.2mm
1-1924067-2
Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 2 Position, 4 mm [.157 in] Centerline, Sealable, Black, MCON 1.2mm
-
- MCON
- MCON 1.2mm
- TE Internal #: 1-1924067-2
- TE Internal Description: 2POS, MCON 1.2 CB REC 2p TL SEALED
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Primary Product Color : Black
-
Product Width : 26.5 mm [ 1.043 in ]
-
Operating Temperature (Max) (°C): 110, 100, 70, 125, 120, 105, 85, 90, 80, 75
-
Operating Temperature (Max) (°F): 158, 185, 194, 248, 257, 176, 212, 221, 230, 167
-
Connector Shape : Rectangular
Documents
Product Drawings
- CONNECTOR ASSEMBLY, FEMALE, 2 POSITION SEALED, 1.2mm STANDARD LATCH VERSION ENG_CD_1924067_B9.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1924067-2_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1924067-2_C.2d_dxf.zip English
- ENG_CVM_CVM_1-1924067-2_C.3d_igs.zip English
- ENG_CVM_CVM_1-1924067-2_C.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-8928_E.pdf English
- ENG_SS_408-8968_C.pdf English
