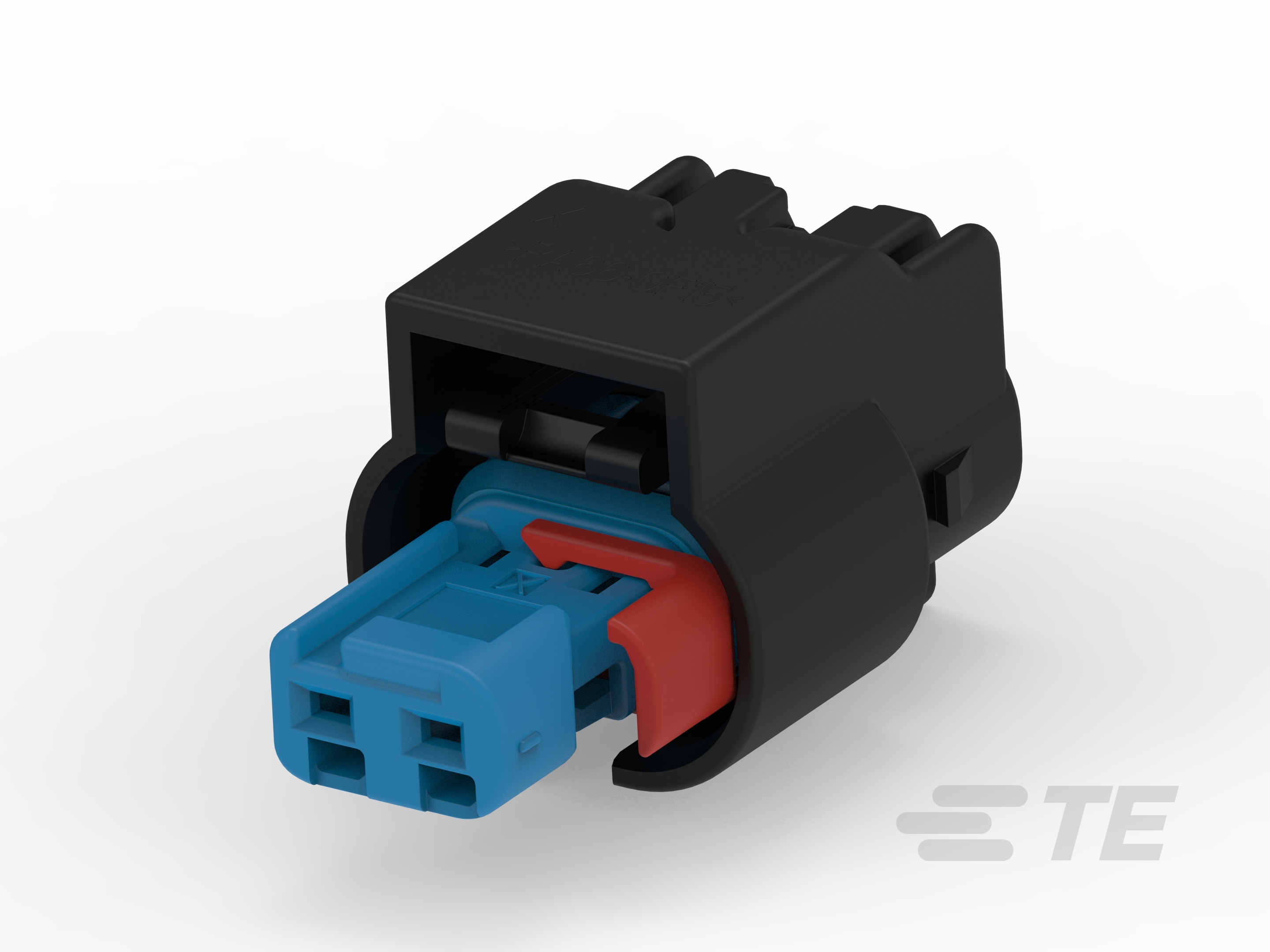

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Contact Type : Receptacle

• Contact Size : 1.2mm

• Mating Tab Width : 1.2 mm [ .047 in ]

• Housing Material : PA GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Connector Height : 15.8 mm [ .622 in ]

• Product Length : 15 mm [ .591 in ]

• Product Width : 26.5 mm [ 1.043 in ]

• IP Rating : IP67

• Number of Positions : 2

• Number of Rows : 1

• Primary Product Color : Black

• Connector & Keying Code : C

• Operating Temperature (Max) (°C): 125

• Operating Temperature (Max) (°F): 248, 221, 158, 167, 230, 176, 194, 185, 212, 257

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
