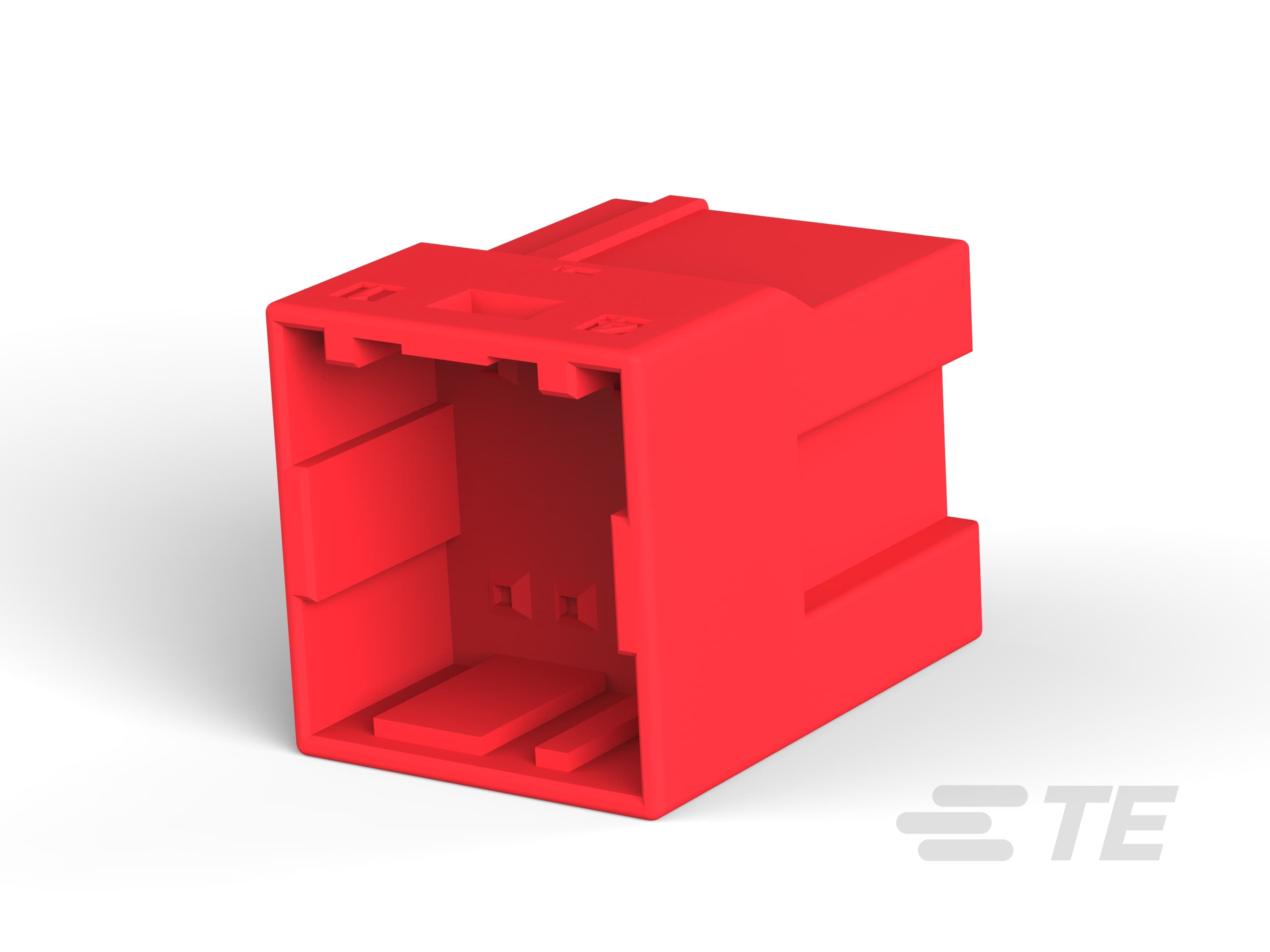

Wire-to-Wire, 8 Position, 2.5 mm [.098 in] Centerline, 2 Row, PBT GF, Receptacle, Tab, Wire & Cable, GRACE INERTIA 2.5, Rectangular Connector Housings
1-1981971-2
Wire-to-Wire, 8 Position, 2.5 mm [.098 in] Centerline, 2 Row, PBT GF, Receptacle, Tab, Wire & Cable, GRACE INERTIA 2.5, Rectangular Connector Housings
-
- GRACE INERTIA 2.5
- TE Internal #: 1-1981971-2
- TE Internal Description: GIC2.5W CAP HOUSING 8POS (2-ROW) RED
- All STD Temp Sig GRACE INERTIA Cap (20)
-
Packaging Method : Bag
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Product Width : 14.4 mm [ .567 in ]
-
Connector & Contact Terminates To : Wire & Cable
-
Contact Layout : Matrix
Documents
Product Drawings
- 2.5MM PITCH CONN W-W WITH KEYING CAP HSG 8P ENG_CD_1981971_E.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-1981971-2_E_c-1-1981971-2-e-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1-1981971-2_E_c-1-1981971-2-e.2d_dxf.zip English
- ENG_CVM_CVM_1-1981971-2_E_c-1-1981971-2-e.3d_igs.zip English
- ENG_CVM_CVM_1-1981971-2_E_c-1-1981971-2-e.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5203_E1.pdf English
- Product Specification ENG_SS_108-78350_G_108_78350.pdf English
- Qualification Test Report JPN_SS_501-78264_C.pdf Japanese
