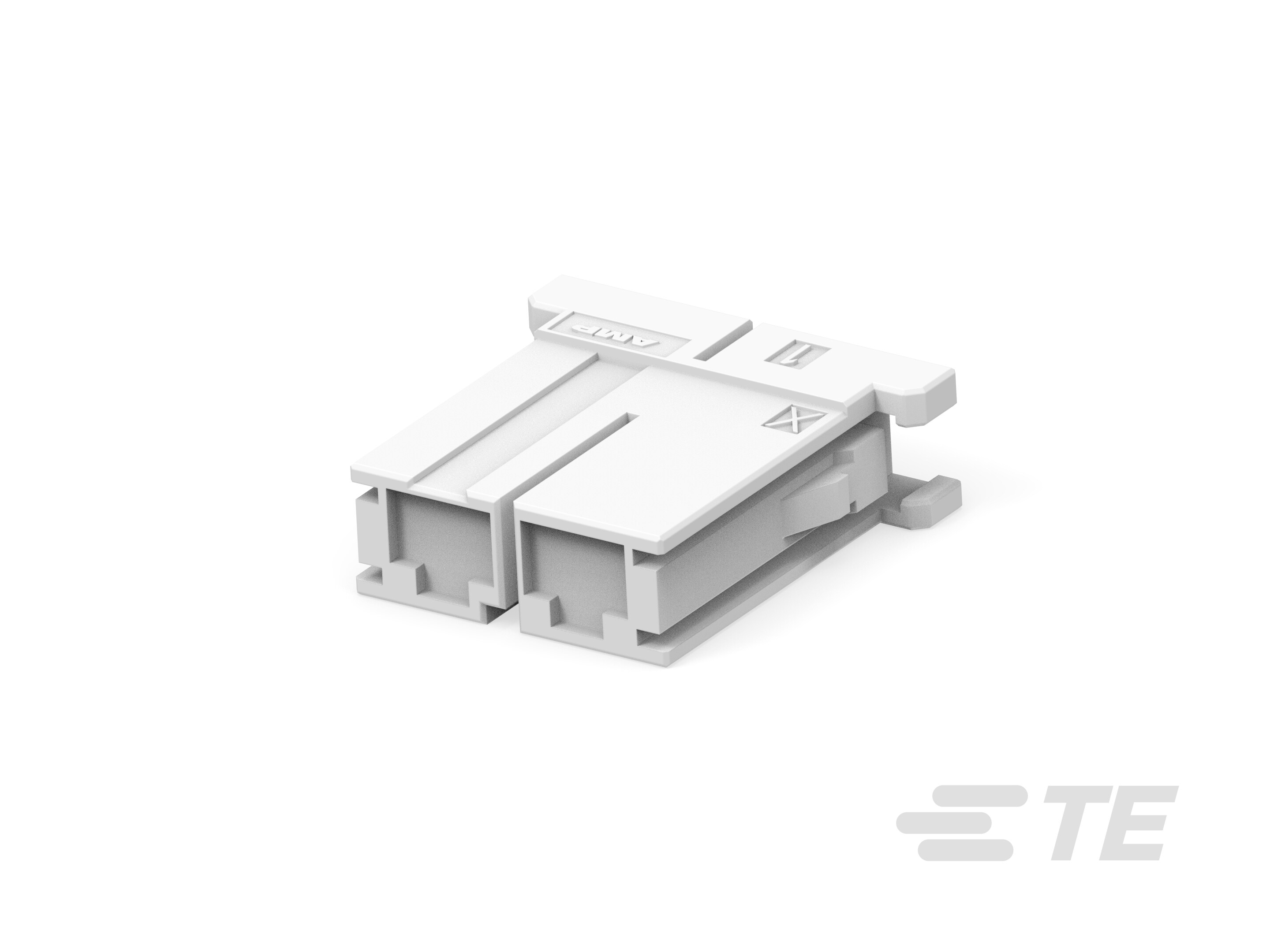

1-2040021-2
Housing, Receptacle, Crimp, Wire-to-Board, 2 Position, Dynamic 5000 Series, Rectangular Wire & Cable Connectors & Housings
1-2040021-2
Housing, Receptacle, Crimp, Wire-to-Board, 2 Position, Dynamic 5000 Series, Rectangular Wire & Cable Connectors & Housings
-
- Dynamic Series
- Dynamic 5000 Series
- TE Internal #: 1-2040021-2
- TE Internal Description: DYNAMIC D-5200S DUMMY REC HSG 2P CUTTING
- All DYNAMIC 5000 REC AND TAB HSG (56)
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Mating Retention : With
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Board
Documents
Product Drawings
- SINGLE ROW DUMMY REC HSG WITH CUTTING OUT LOCK LEVER. DYNAMIC D-5200S JPN_CD_2040021_D.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2040021-2_E.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2040021-2_E.2d_dxf.zip English
- ENG_CVM_CVM_1-2040021-2_E.3d_igs.zip English
- ENG_CVM_CVM_1-2040021-2_E.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-5453_F.pdf English
