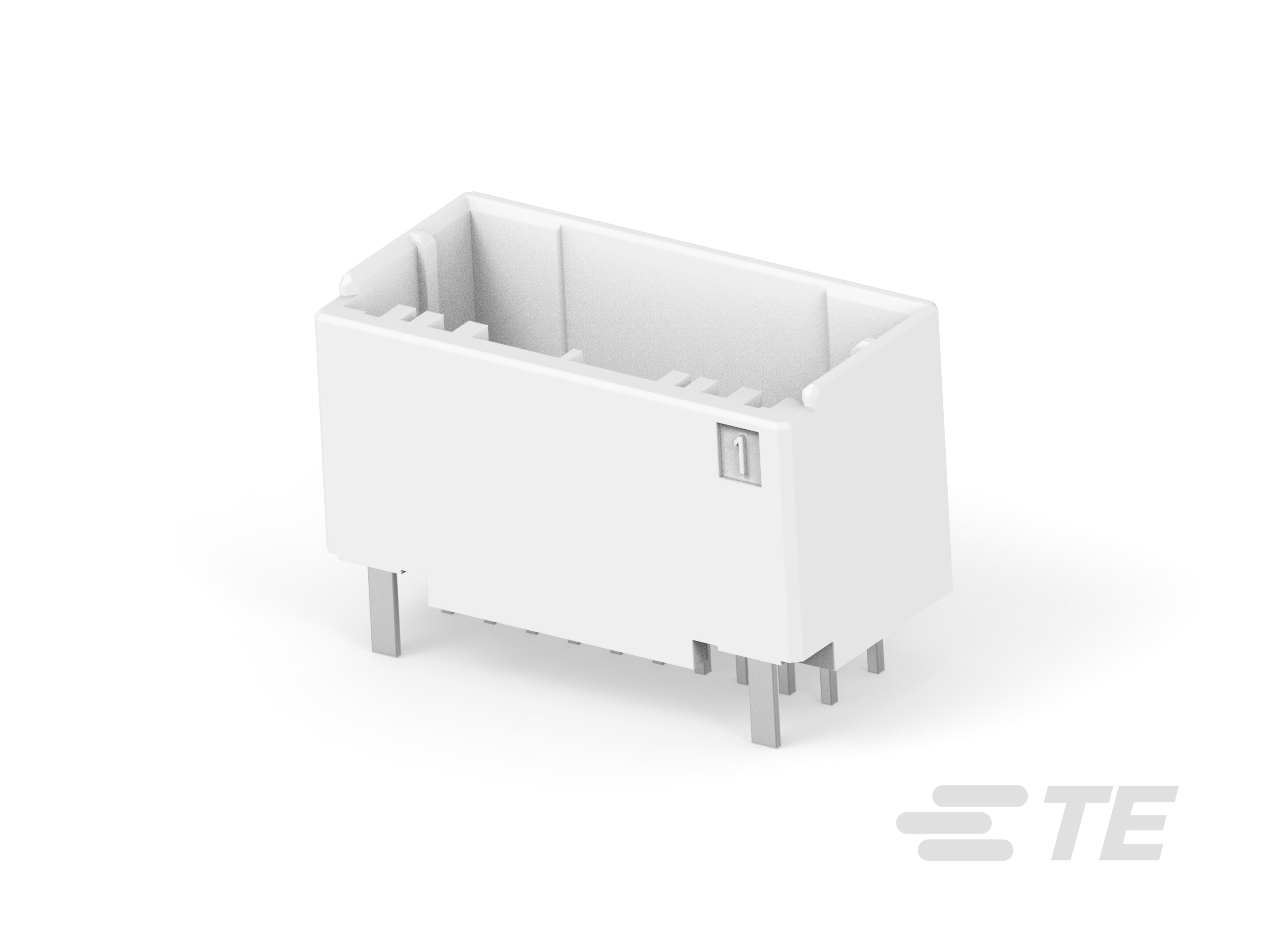

• Connector Contact Load Condition : Fully Loaded

• PCB Mount Orientation : Vertical

• Number of Positions : 20

• Number of Rows : 2

• Mating Entry Location : Top

• Housing Material : Polyester - GF

• Centerline (Pitch) : 2 mm [ .079 in ]

• Mating Tab Width : .7 mm [ .028 in ]

• Mating Tab Thickness : .5 mm [ .02 in ]

• Contact Base Material : Copper Alloy

• Contact Layout : Matrix

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Contact Current Rating (Max) (A): 5

• Square Termination Post & Tail Dimension : .5 mm [ .02 in ]

• Termination Method to PCB : Through Hole - Solder

• Mating Alignment Type : Keyed

• PCB Mount Retention Type : Retention Leg

• Mating Retention : With

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-0

• Row-to-Row Spacing : 3.3 mm [ .129 in ]

• Connector Width (in): .444

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Primary Product Color : Natural

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Signal

• Packaging Method : Tube
