Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

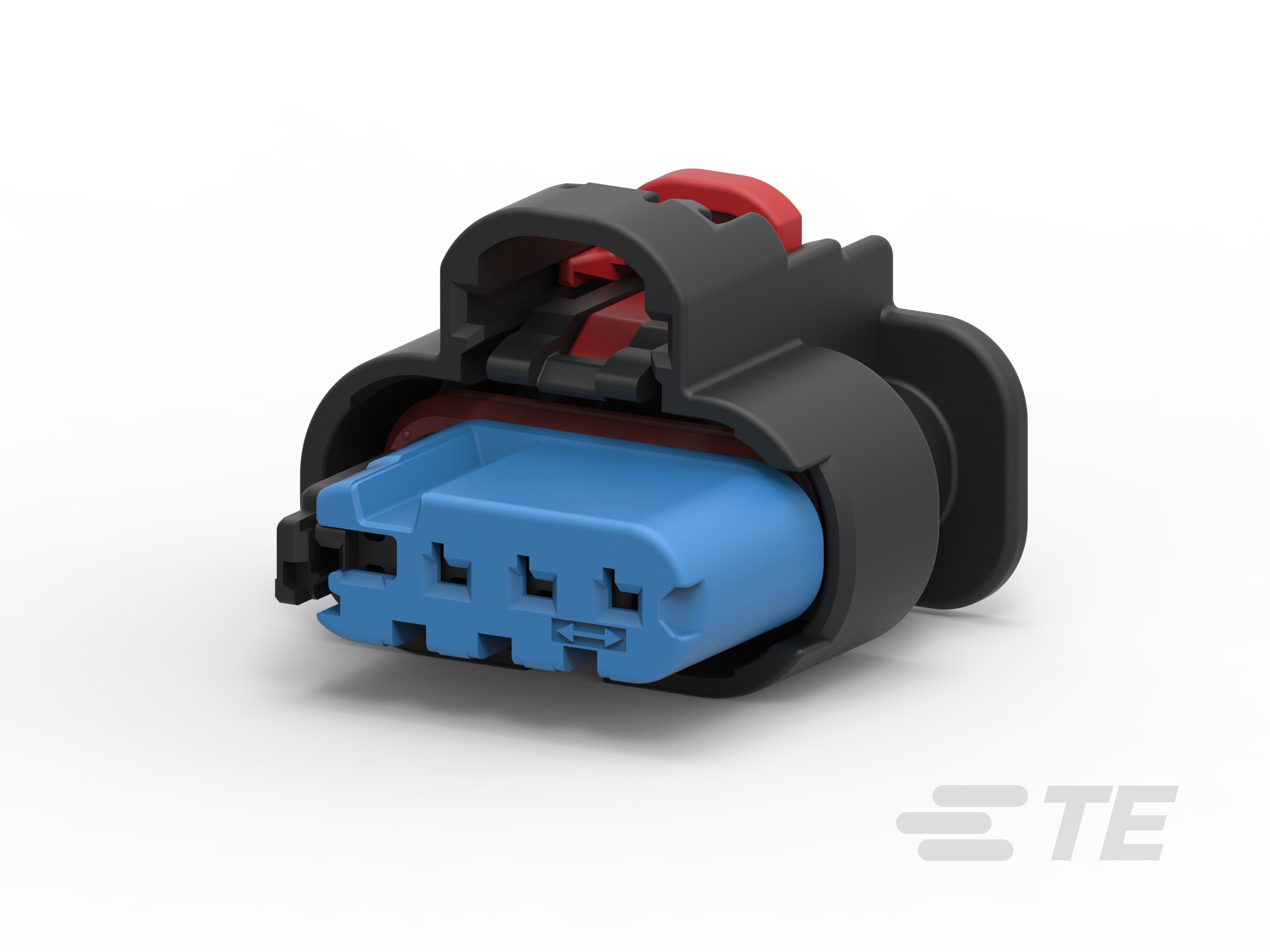

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 4

• Number of Rows : 1

• Cable Exit Angle : 180°

• Primary Product Color : Blue

• Connector & Keying Code : A

• Contact Type : Receptacle

• Contact Size : 1.2mm

• Mating Tab Width : 1.2 mm [ .04 in ]

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT

• Centerline (Pitch) : 4 mm [ .16 in ]

• Connector Height : 19.5 mm [ .767 in ]

• Product Length : 24.7 mm [ .947 in ]

• Product Width : 26.5 mm [ 1.04 in ]

• Operating Temperature (Max) : 150 °C [ 302 °F ]

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Circuit Application : Power

• Packaging Method : Bulk

• Packaging Quantity : 1
