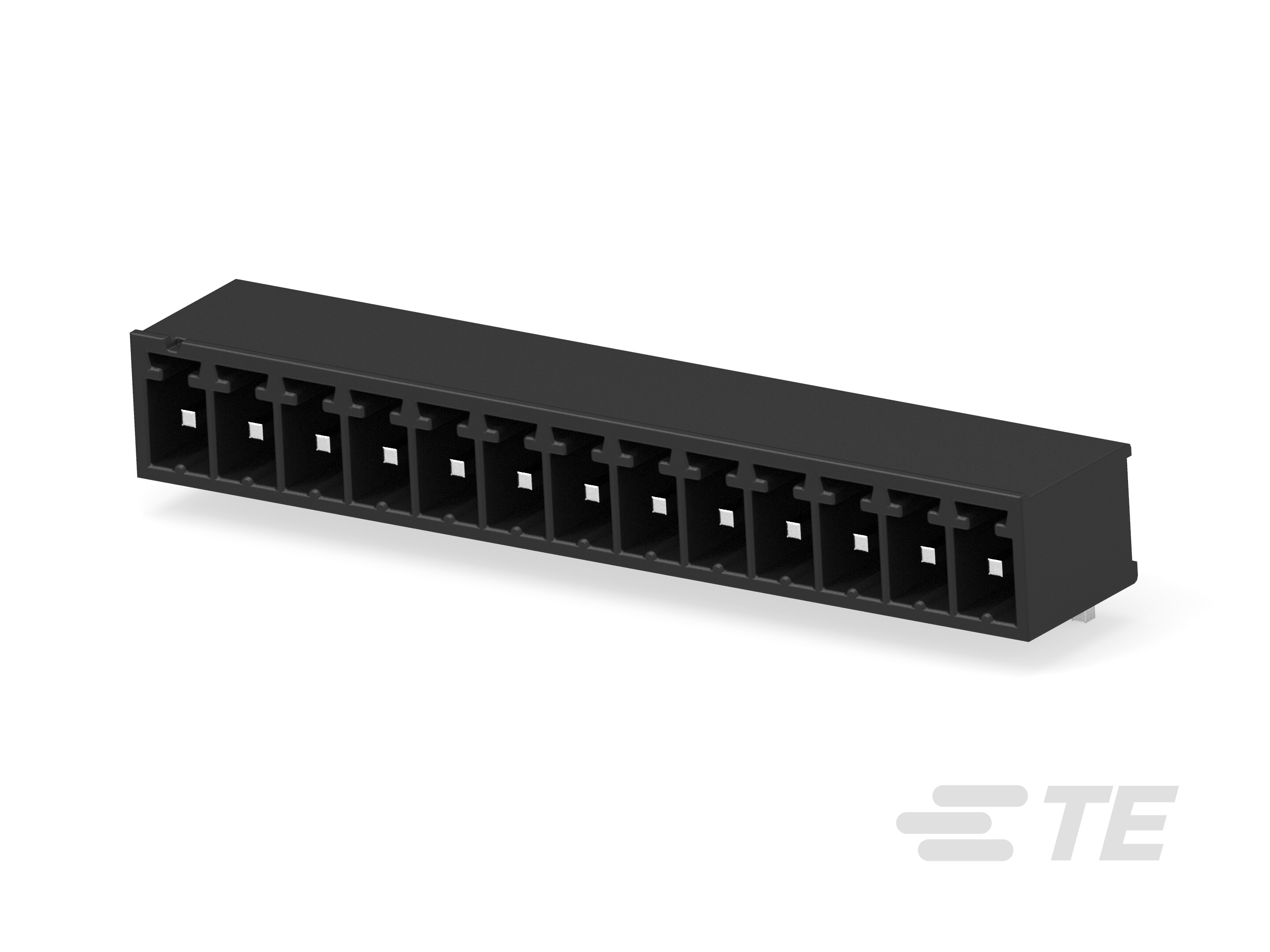

13 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
1-2342077-3
13 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
-
- Buchanan
- TE Internal #: 1-2342077-3
- TE Internal Description: 13POS HDR 90 DEG,HT,3.81MM PITCH,TL1.9MM
-
Number of Positions : 13
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3.81 mm [ .15 in ]
-
Number of Rows : 1
Documents
Product Drawings
- HEADER 90 DEG, HIGH TEMPERATURE, 3.81MM PITCH, TAIL LENGTH 1.9mm ENG_CD_2342077_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2342077-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2342077-3_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2342077-3_A.3d_igs.zip English
- ENG_CVM_CVM_1-2342077-3_A.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
