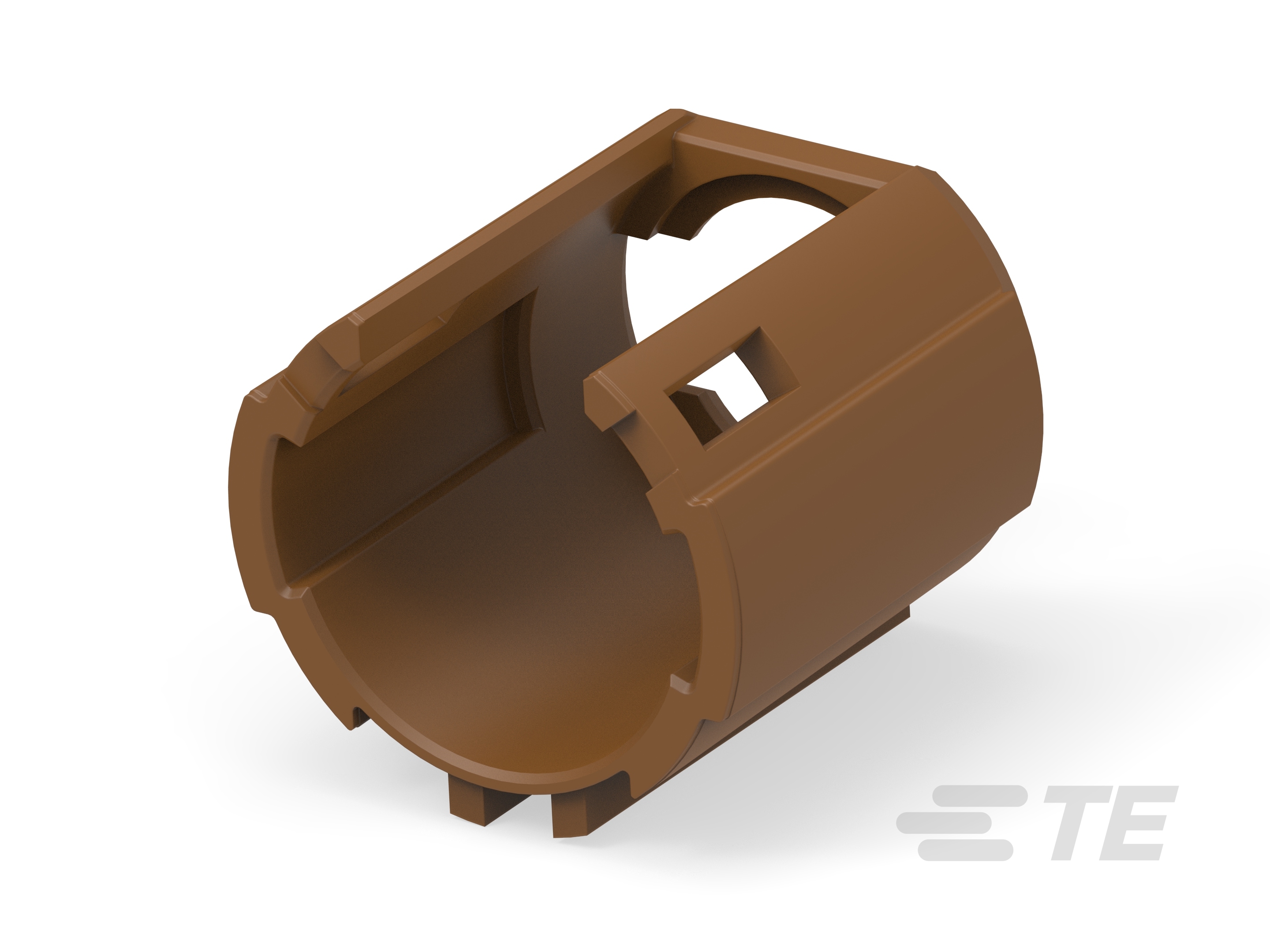

1-2394114-2
TPA, PA GF, Nut Brown, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1000, Other Automotive Connector Accessories
1-2394114-2
TPA, PA GF, Nut Brown, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1000, Other Automotive Connector Accessories
-
- PowerTube
- PowerTube HVP-HD 1000
- TE Internal #: 1-2394114-2
- TE Internal Description: Plug TPA Code L
- All PowerTube HVP-HD 1000 Accessories and Plug Components (29)
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Nut Brown
-
Primary Product Material : PA GF
-
Number of Positions : 1
-
Automotive Connector Accessory Type : TPA
Documents
Product Drawings
- PLUG TPA HVP-HD1000 ENG_CD_2394114_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2394114-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2394114-2_A.3d_stp.zip English
- ENG_CVM_CVM_1-2394114-2_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2394114-2_A.3d_igs.zip English
Datasheets & Catalog Pages
- HIVONEX CONNECTORS & CHARGING SOLUTIONS ENG_CS_3-1773983-4_A.pdf English
