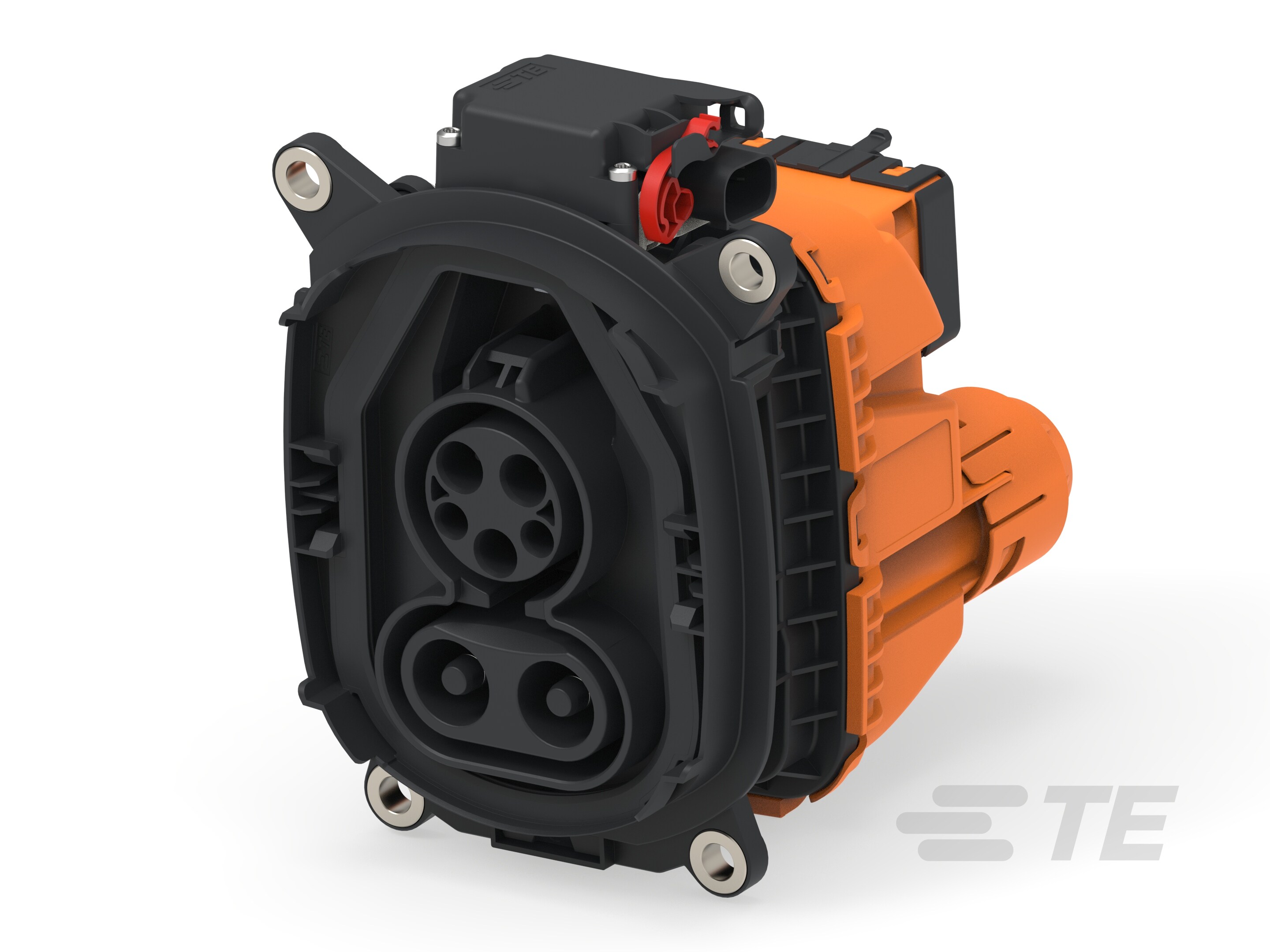

Sealing Cover, Cable Exit Angle 180°, Black - Orange, PA GF, 7 Position, Charging Inlets, Automotive Connector Caps & Covers
1-2430432-2
Sealing Cover, Cable Exit Angle 180°, Black - Orange, PA GF, 7 Position, Charging Inlets, Automotive Connector Caps & Covers
-
- Charging Inlets
- TE Internal #: 1-2430432-2
- TE Internal Description: COMBO 1,CHARGE INLET KIT120SQMM, W/O LED
- All High-Power Charging CCS1 and CCS2 Inlet Kits (47)
-
Packaging Method : Bag & Box
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Primary Product Color : Black - Orange
-
Primary Product Material : PA GF
-
Operating Temperature (Max) : 85 °C [ 185 °F ]
Documents
Product Drawings
- CCS1-KIT ASSY_120SQMM-80A ENG_CD_2430432_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2430432-2_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2430432-2_A1.3d_stp.zip English
- ENG_CVM_CVM_1-2430432-2_A1.2d_dxf.zip English
- ENG_CVM_CVM_1-2430432-2_A1.3d_igs.zip English
Product Specifications
- Application Specification ENG_SS_114-94785_A2.pdf English
- Product Specification ENG_SS_108-94890_A1.pdf English
