Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

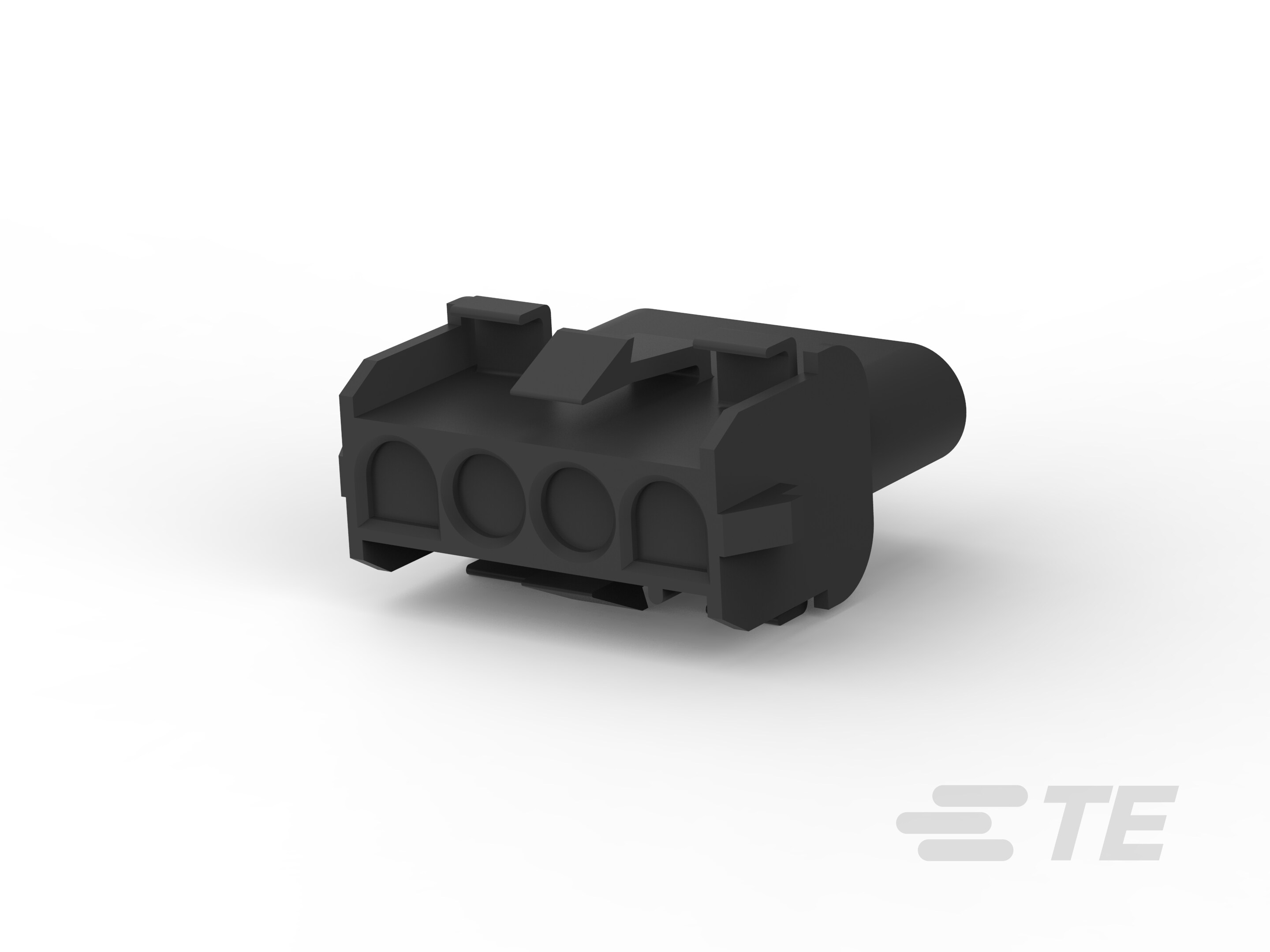

• Connector Product Type : Housing

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Power Positions : 0

• Number of Signal Positions : 0

• Number of Positions : 4

• Number of Rows : 1

• Operating Voltage (VAC): 600

• Primary Product Color : Black

• Contact Type : Pin

• Contact Layout : Inline

• Multiple Contact Types : Without

• Contact Retention Within Housing : Without

• Termination Method to Wire & Cable : Crimp

• Panel Mount Feature Type : Patch & Tabs

• Panel Mount Feature : With

• Connector Mounting Type : Panel Mount

• Housing Material : Nylon

• Centerline (Pitch) : 6.35 mm [ .25 in ]

• Connector Length (in): 1.05

• Connector Height (in): 1.08

• Connector Width (in): .3

• Panel Thickness (Recommended) : .76 – 2.29 mm [ .03 – .09 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal

• Glow Wire Rating : Standard Part - Not Glow Wire

• CSA Rating : Certified, LR 7189

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL, VDE

• UL Flammability Rating : UL 94V-0
