Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

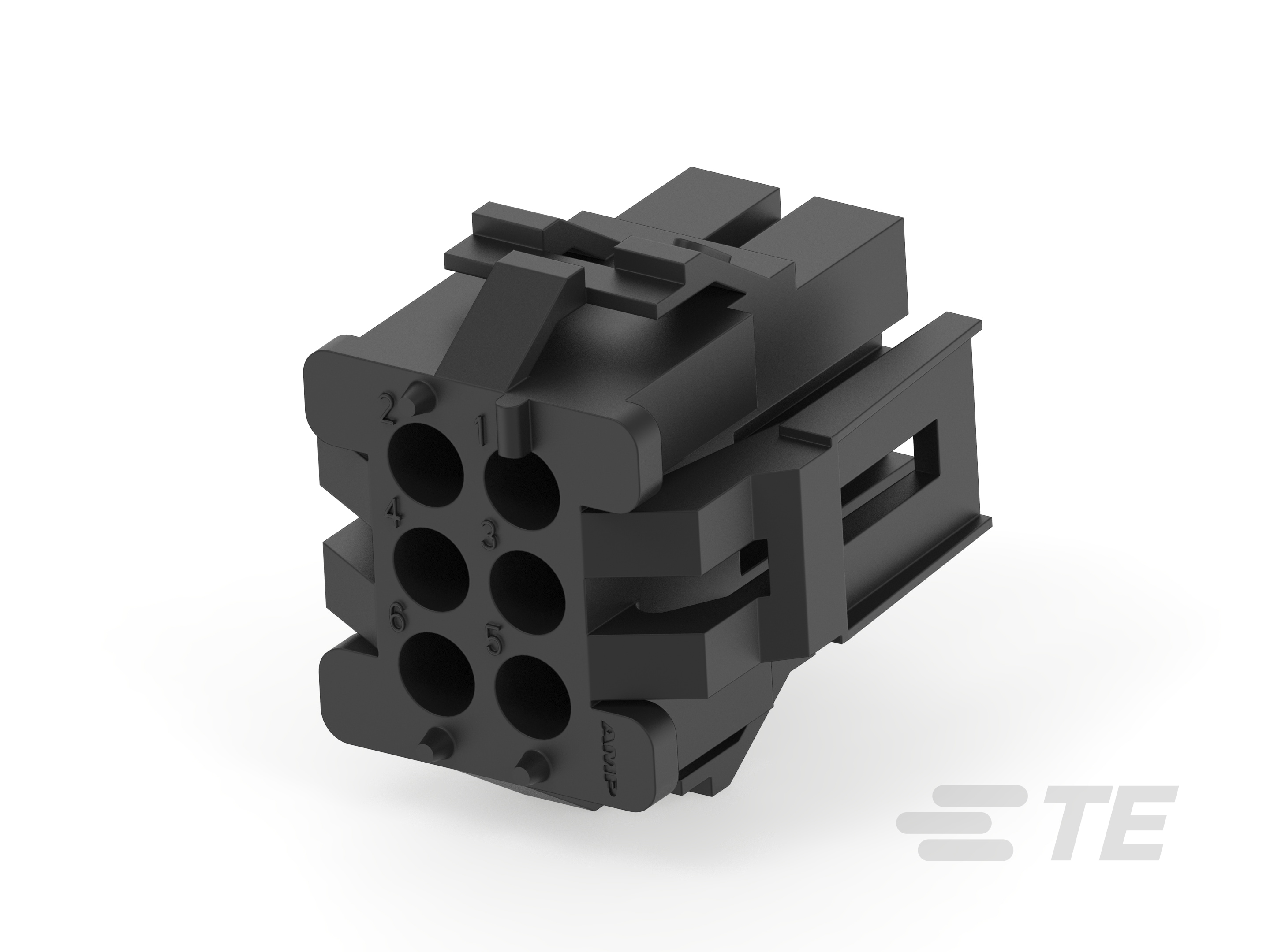

• Connector Product Type : Housing

• Connector & Housing Type : Plug

• Connector System : Wire-to-Board, Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Power Positions : 0

• Number of Signal Positions : 6

• Number of Positions : 6

• Number of Rows : 3

• Operating Voltage (VAC): 250

• Primary Product Color : Black

• Contact Type : Socket

• Contact Layout : Matrix

• Contact Retention Within Housing : With

• Contact Current Rating (Max) (A): 9

• Termination Method to Wire & Cable : Crimp

• Panel Mount Feature : Without

• Mating Alignment : With

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Positive Lock

• Connector Mounting Type : Panel Mount

• Housing Material : PA 66

• Centerline (Pitch) : 4.2 mm [ .165 in ]

• Connector Length : 21.34 mm [ .84 in ]

• Wire Size (AWG): 26 – 18

• Wire Size (mm²): .12 – .8

• Connector Height : 12.95 mm [ .51 in ]

• Connector Width : 21.34 mm [ .84 in ]

• Compatible Insulation Diameter Range : 2.92 mm [ .115 in ]

• Panel Thickness (Recommended) : 1.73 mm [ .068 in ]

• Row-to-Row Spacing : 4.19 mm [ .165 in ]

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• Circuit Application : Power & Signal

• Glow Wire Rating : Standard Part - Not Glow Wire

• CSA Rating : LR 7189

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0
