Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

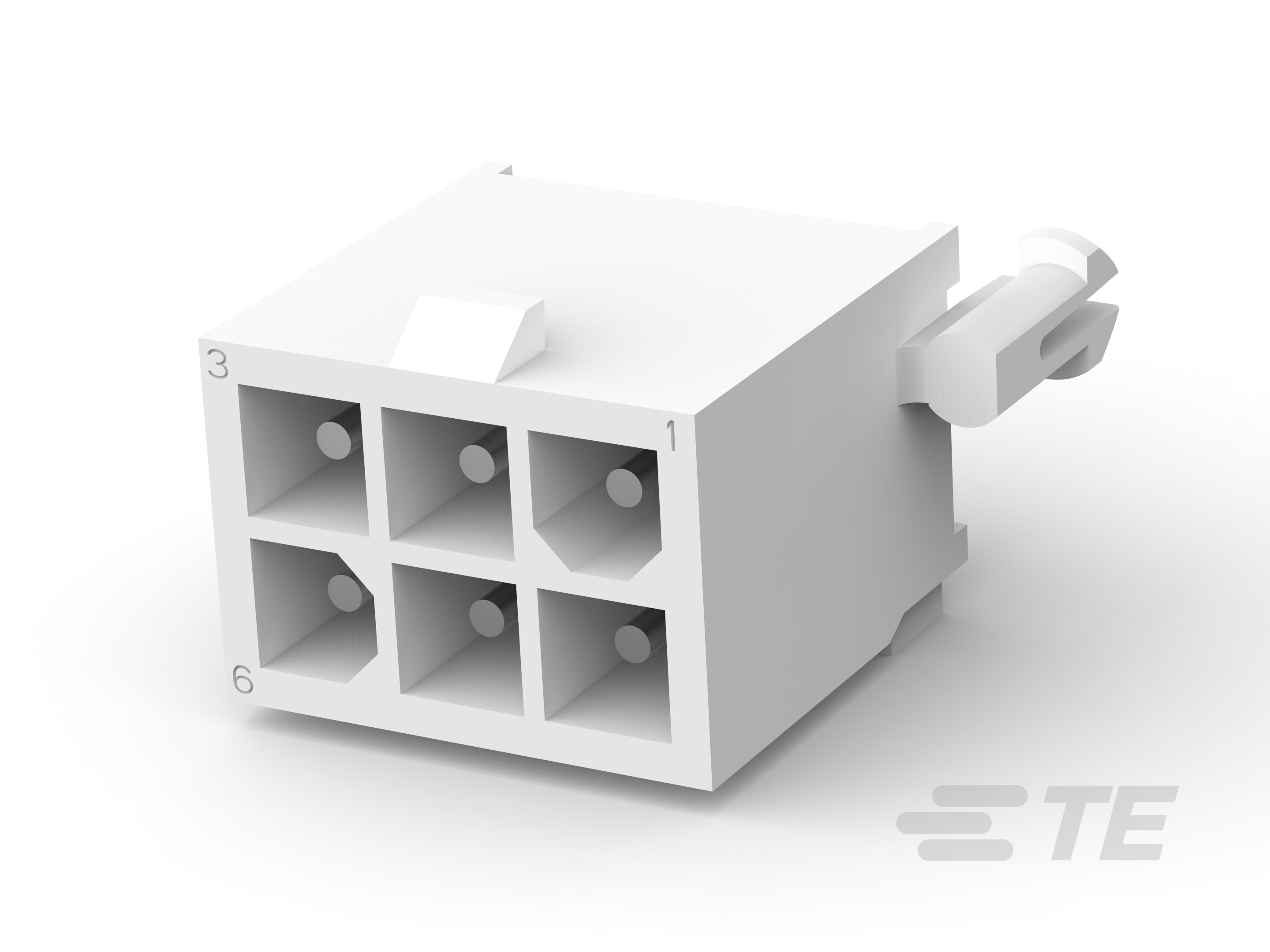

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : No

• Connector Shape : Rectangular

• Connector System : Wire-to-Board

• Connector Contact Load Condition : Fully Loaded

• Number of Loaded Positions : 6

• Number of Columns : 3

• Number of Rows : 2

• Number of Power Positions : 6

• Number of Positions : 6

• PCB Mount Orientation : Vertical

• Operating Voltage (VDC): 600

• Operating Voltage (VAC): 600

• Primary Product Color : White

• PCB Retention Feature Material : Nylon

• PCB Contact Termination Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 8.89 µm [ 150 – 350 µin ]

• Mating Pin Diameter : 1 mm [ .039 in ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Base Material : Brass

• PCB Contact Termination Area Plating Material : Tin

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 9.5

• Contact Type : Pin

• Contact Shape & Form : Round

• Contact Layout : Matrix

• Contact Mating Area Plating Material Thickness : 3.81 – 8.89 µm [ 150 – 350 µin ]

• Contact Mating Area Plating Material Finish : Matte

• Contact Mating Area Plating Material : Tin

• Contact Size : 1mm

• Termination Post & Tail Length : 3.69 mm [ .145 in ]

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• PCB Mount Retention Type : Boardlock

• Mating Alignment Type : Chamfered Edges

• PCB Mount Retention : With

• Mating Alignment : With

• Panel Mount Feature : Without

• Mating Retention : With

• Mating Retention Type : Locking Tab

• Centerline (Pitch) : 4.14 mm [ .162 in ]

• Housing Material : Nylon

• Mating Entry Location : Top

• Connector Height : 13.49 mm [ .531 in ]

• Row-to-Row Spacing : 4.14 mm [ .162 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Profile Height from PCB : 14.25 mm [ .56 in ]

• Connector Length : 19.15 mm [ .754 in ]

• Connector Width : 11.88 mm [ .468 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Circuit Application : Power

• Compatible With Approved Standards Products : UL E28476

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0

• Glow Wire Rating : Standard Part - Not Glow Wire

• UL Rating : Recognized
