Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

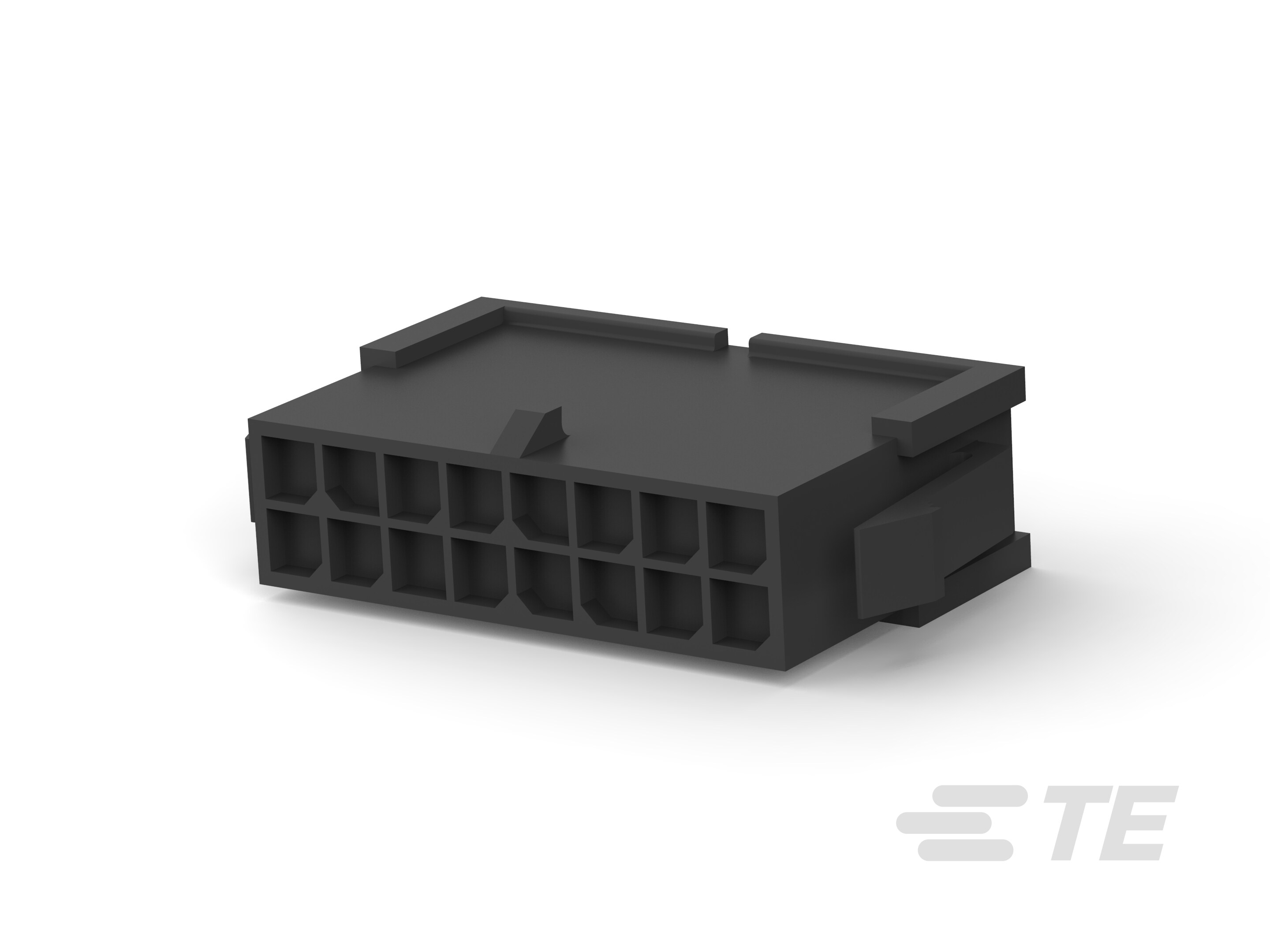

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Plug

• Sealable : No

• Connector System : Wire-to-Panel, Wire-to-Wire

• Rectangular Power Connector Type : Housing

• Number of Positions : 16

• Number of Rows : 2

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Contact Retention Within Housing : Without

• Contact Type : Pin

• Termination Method to Wire & Cable : Crimp

• Connector Mounting Type : Panel Mount

• Mating Alignment Type : Polarization

• Panel Mount Feature Type : Locking Latch

• Mating Alignment : With

• Panel Mount Feature : With

• Mating Retention : With

• Strain Relief : Without

• Mating Retention Type : Locking Tab

• Housing Material : Nylon

• Centerline (Pitch) : 3 mm [ .118 in ]

• Housing Color : Black

• Product Width (mm): 16.89

• Connector Height (mm): 8.71

• Panel Thickness (Recommended) : 1.57 – 2.3 mm [ .062 – .091 in ]

• Row-to-Row Spacing : 3 mm [ .118 in ]

• Compatible Insulation Diameter (Max) : 1.52 mm [ .06 in ]

• Product Length (mm): 15.85

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94V-0

• Glow Wire Rating : Standard Part - Not Glow Wire
