Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

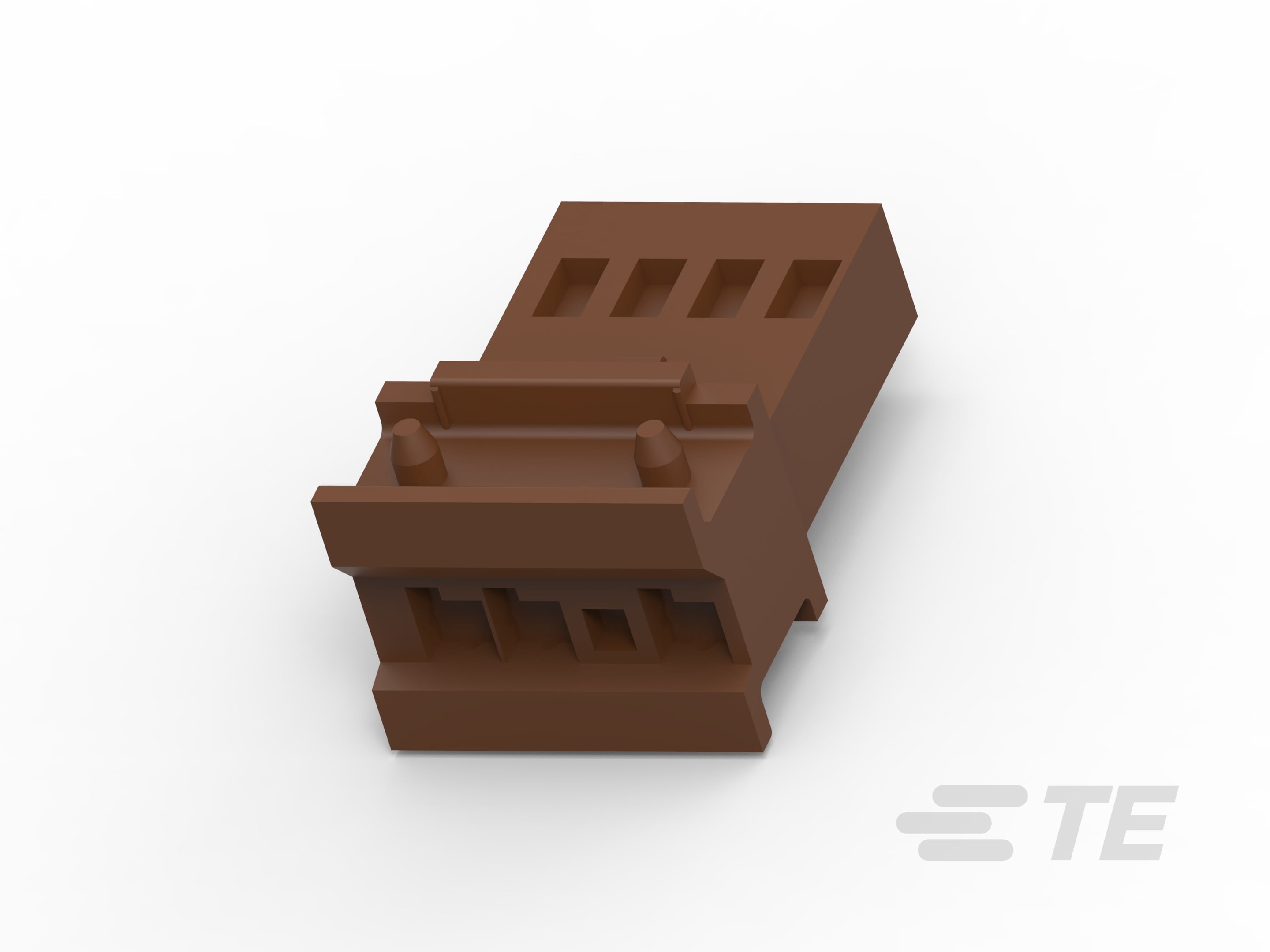

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : On the Terminal

• Sealable : No

• Connector System : Wire-to-Device

• Mixed & Hybrid Connector : No

• Number of Positions : 4

• Number of Rows : 1

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Brown

• Connector & Keying Code : V

• Cable Exit Angle : 180°

• Mating Tab Width : .63 mm [ .025 in ]

• Contact Size : .63mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Product Width : 17.7 mm [ .696 in ]

• Product Length : 12.2 mm [ .48 in ]

• Operating Temperature Range : -40 – 135 °C [ -40 – 275 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85

• Operating Temperature (Max) (°F): 158, 167, 176, 185

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 3500
