1-967067-1

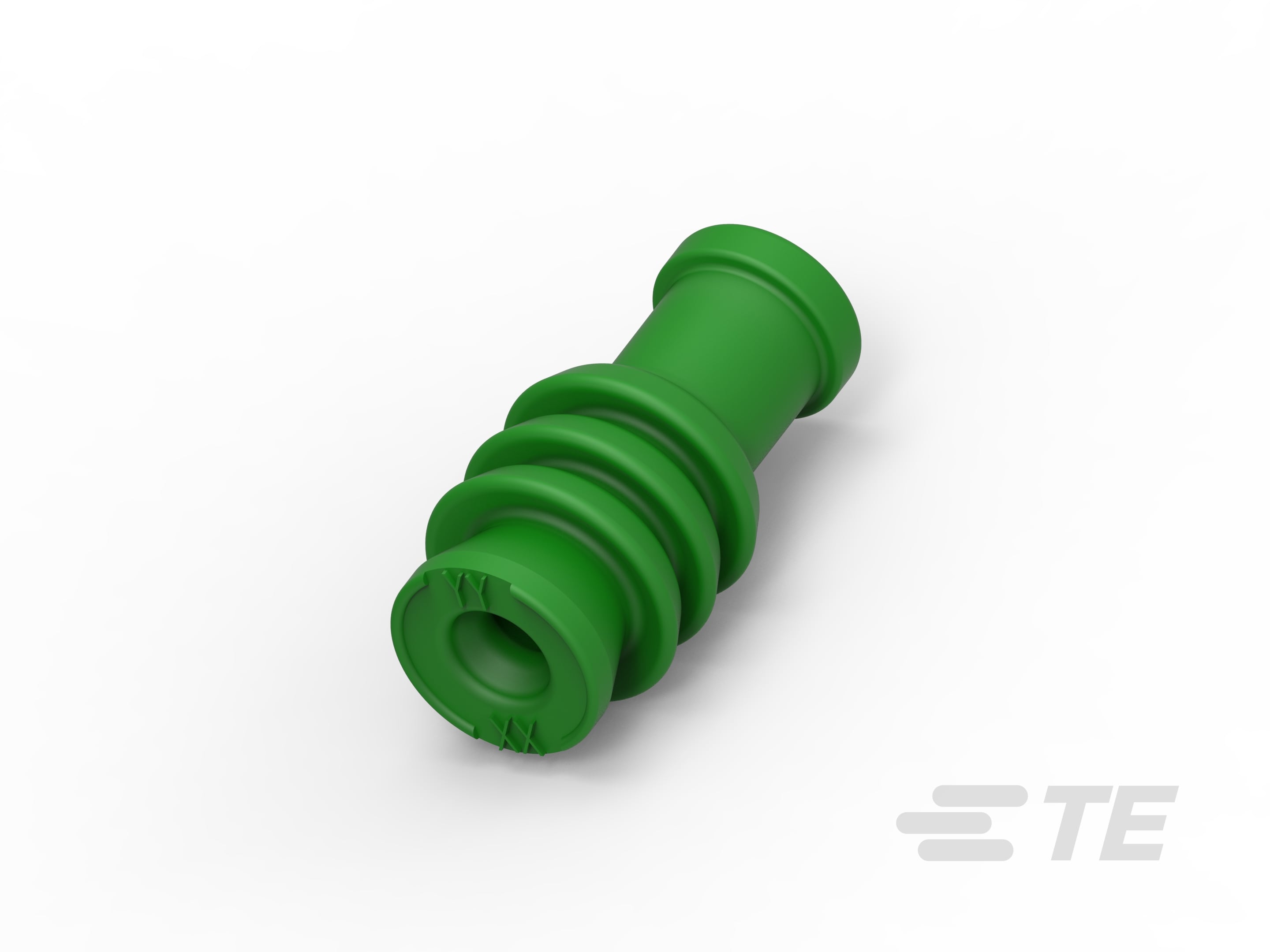

Single Wire Seal (SWS), Silicone, Green, 3.45 mm [.136 in] Cavity Diameter, 1.4 – 2.1 mm [.055 – .083 in] Insulation Diameter
1-967067-1
Single Wire Seal (SWS), Silicone, Green, 3.45 mm [.136 in] Cavity Diameter, 1.4 – 2.1 mm [.055 – .083 in] Insulation Diameter
-
- MQS
- TE Internal #: 1-967067-1
- TE Internal Description: MQS SGL WIRE SEAL
-
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
-
Primary Product Color : Green
-
Primary Product Material : Silicone
-
Resistance to Hydrocarbons : Poor
-
Operating Temperature (Max) (°C): 65, 80, 75, 105, 85, 100, 120, 90, 130, 125, 110, 70
-
Operating Temperature (Max) (°F): 194, 149, 185, 221, 248, 230, 266, 257, 167, 212, 158, 176
Documents
Product Drawings
- Micro Quadlock System SINGLE WIRE SEAL for cavity DIA 3.45mm ENG_CD_967067_A11.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-967067-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-967067-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1-967067-1_A.3d_igs.zip English
- ENG_CVM_CVM_1-967067-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18025_Y1.pdf English
