Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

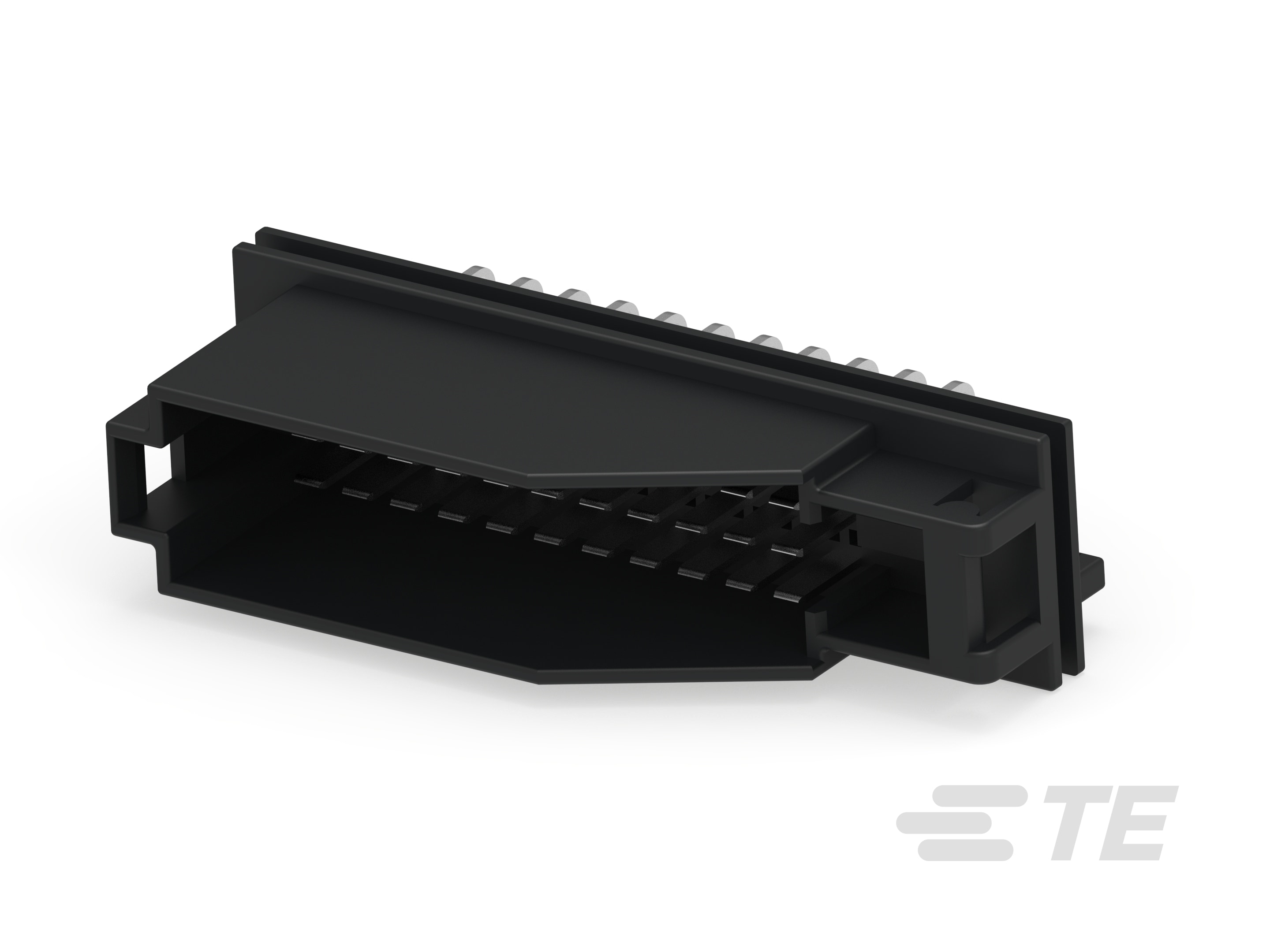

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• PCB Mount Orientation : Horizontal

• Number of Positions : 33

• Number of Rows : 3

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Size : 3mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• PCB Mount Retention Type : Solder Tail

• Mating Retention : With

• Mounting Holes : Without

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Mating Alignment : With

• Shielded : No

• Circuit Application : Power & Signal

• Operating Temperature (Max) (°C): 80, 105, 100, 90, 85, 65, 75, 70

• Operating Temperature (Max) (°F): 221, 167, 158, 176, 194, 185, 212, 149

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Packaging Quantity : 24

• Packaging Method : Tray

• Nominal Voltage Architecture (V): 24, 240, 42, 12, 48

• Voltage Rating (Max) (VDC): 24

• Operating Voltage (VAC): 240

• Connector Width : 83.71 mm [ 3.296 in ]

• Primary Product Color : Black

• Termination Method to PCB : Through Hole - Solder

• Centerline (Pitch) : 5 mm [ .197 in ]
