1052098-1

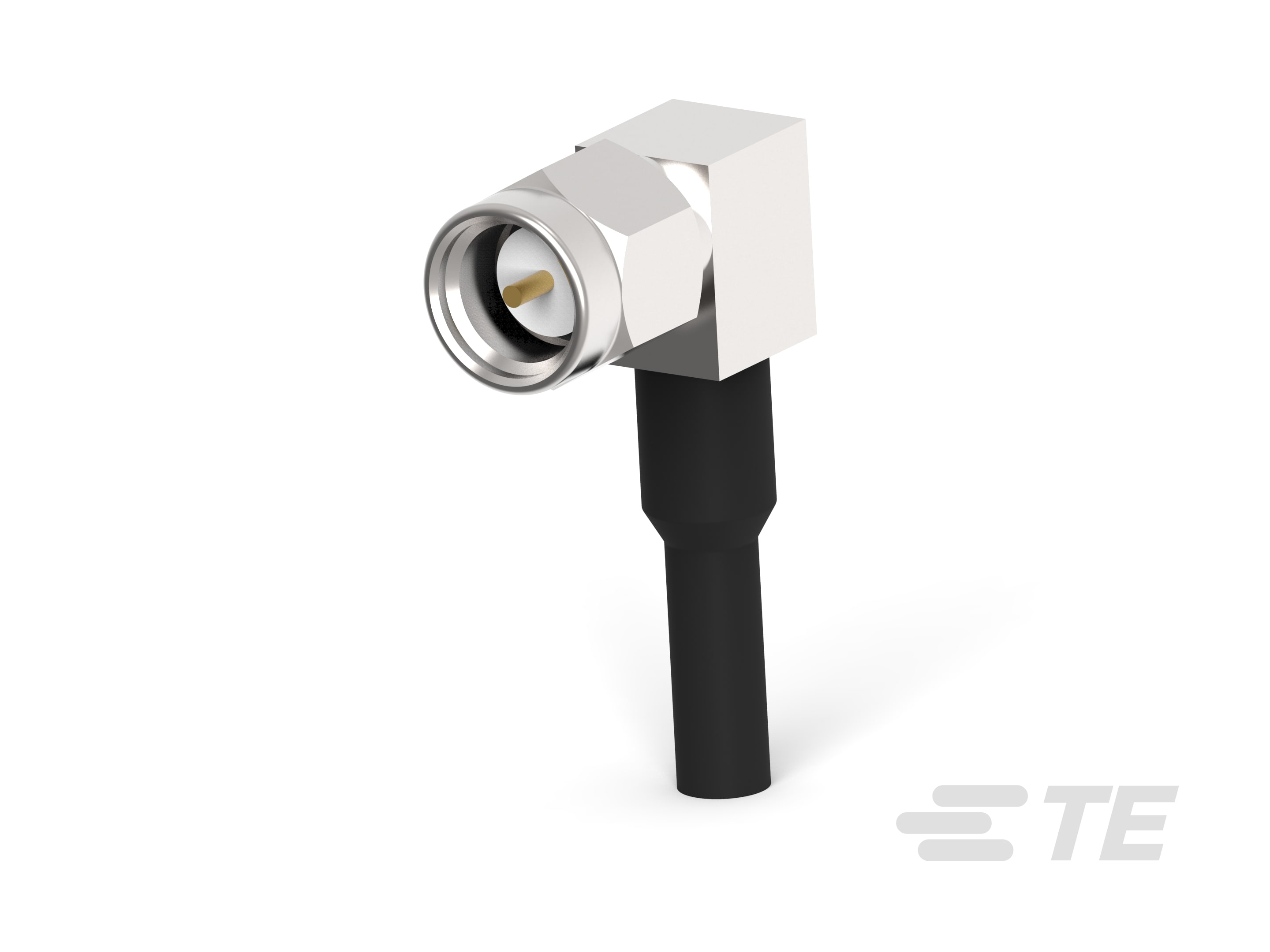

SMA Connector, Plug, 50 ohm, Threaded, Cable-to-Cable, 1 Position, Sealable, Wire & Cable, Cable Mount (Free-Hanging), SMA
1052098-1
SMA Connector, Plug, 50 ohm, Threaded, Cable-to-Cable, 1 Position, Sealable, Wire & Cable, Cable Mount (Free-Hanging), SMA
-
- AMP
- SMA
- TE Internal #: 1052098-1
- TE Internal Description: 2037 5100 02
- Alias #: 2037-5100-02
-
RF Interface : SMA
-
RF Connector Style : Plug
-
RF Connector Mated Outer Diameter (Approximate) : 6.35 mm [ .25 in ]
-
Impedance (Ω): 50
-
Compatible With RF Cable Type : RG 178
Documents
Product Drawings
- OSM RIGHT ANGLE CABLE PLUG-CRIMP ATTACHMENT English
- OSM RIGHT ANGLE CABLE PLUG-CRIMP ATTACHMENT ENG_CD_1052098_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1052098-1_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1052098-1_D.2d_dxf.zip English
- ENG_CVM_CVM_1052098-1_D.3d_igs.zip English
- ENG_CVM_CVM_1052098-1_D.3d_stp.zip English
Datasheets & Catalog Pages
- SMA Connectors ENG_CS_1307191_SMA_Connectors_0307.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-4801_A.pdf English
