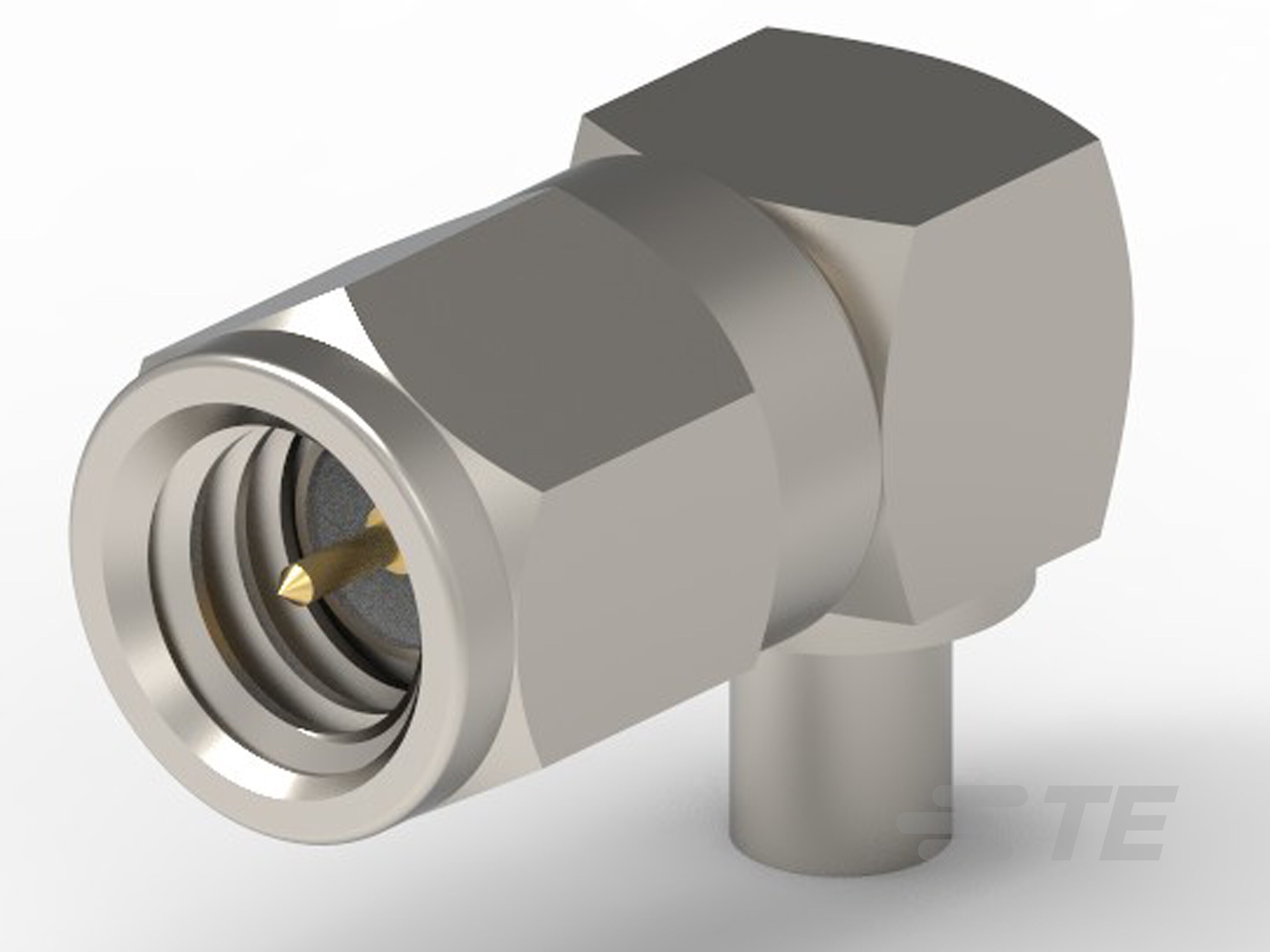

OSMM Connector, Plug, 50 ohm, Threaded, 18 GHz, 1 Position, Wire & Cable, -65 – 125 °C [-85 – 257 °F], Solder, Right Angle, Stainless Steel, OSMM
1058993-1
OSMM Connector, Plug, 50 ohm, Threaded, 18 GHz, 1 Position, Wire & Cable, -65 – 125 °C [-85 – 257 °F], Solder, Right Angle, Stainless Steel, OSMM
-
- OSSM
- OSMM
- TE Internal #: 1058993-1
- TE Internal Description: 4007 7947 00
- Alias #: 4007-7947-00
-
RF Interface : OSMM
-
RF Connector Style : Plug
-
RF Connector Mated Outer Diameter (Approximate) : 5.49 mm [ .216 in ]
-
Impedance (Ω): 50
-
Compatible With RF Cable Type : .047 Semi-Rigid
