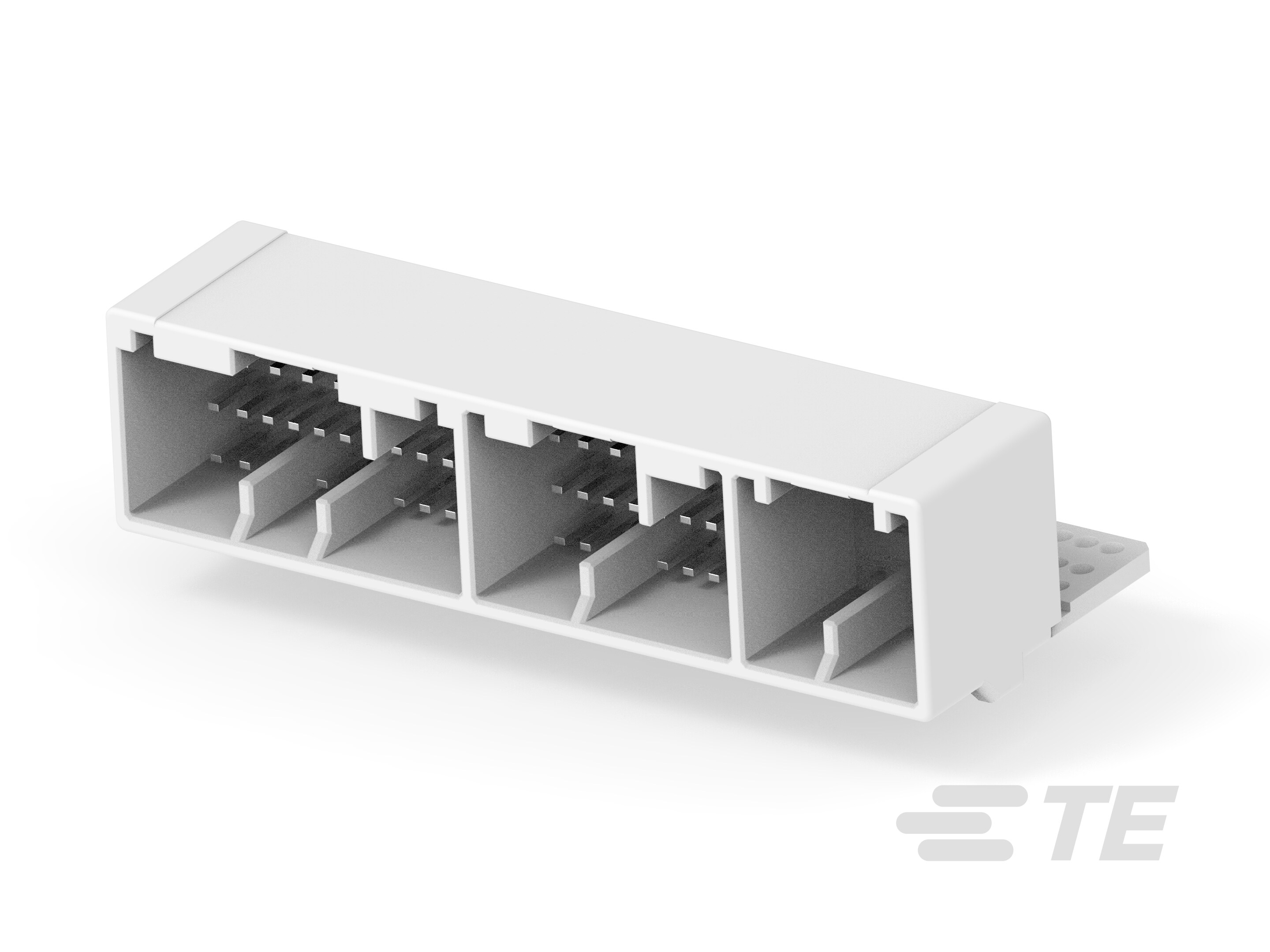

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : No

• Connector Shape : Rectangular

• Connector System : Wire-to-Board

• Number of Rows : 3

• Number of Sections : 3

• Number of Positions : 72

• Number of Signal Positions : 55

• PCB Mount Orientation : Horizontal

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Voltage Rating (Max) (VDC): 12

• Primary Product Color : Natural

• Mating Tab Thickness : .64 mm [ .025 in ]

• Contact Type : Tab

• Mating Tab Width : 1 mm [ .039 in ]

• Contact Mating Area Plating Material : Tin

• Contact Size : .64mm

• PCB Mount Alignment : Without

• PCB Mount Retention Type : Mounting Hole

• Mounting Holes : With

• PCB Mount Retention : With

• Mating Alignment : With

• Panel Mount Feature : Without

• Mating Retention : With

• Mating Retention Type : Locking Interface

• Centerline (Pitch) (mm): 2.5, 3.1

• Centerline (Pitch) (in): .098, .122

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Profile Height from PCB : 22.5 mm [ .886 in ]

• Connector Length : 33.85 mm [ 1.333 in ]

• Connector Width : 79.4 mm [ 3.126 in ]

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105

• Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221

• Shielded : No

• Circuit Application : Signal
