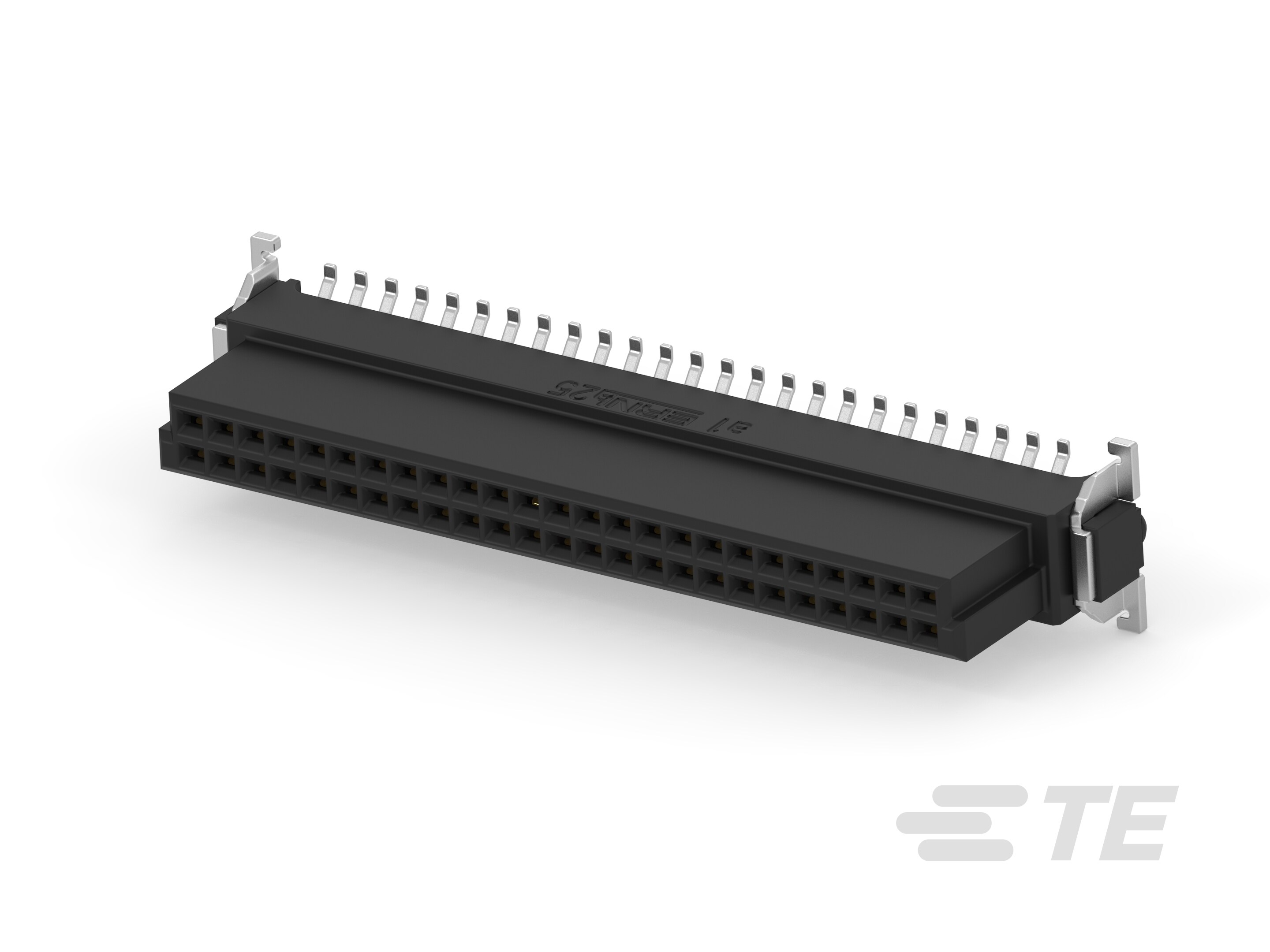

PCB Mount Receptacle, Vertical, Board-to-Board, 50 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC
124045-E
PCB Mount Receptacle, Vertical, Board-to-Board, 50 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC
-
- ERNI
- ERNI SMC
- TE Internal #: 124045-E
- TE Internal Description: SMCB 50 F AB VV 6-03 CLHD * H007 137 E00
-
PCB Connector Type : PCB Mount Receptacle
-
PCB Mount Orientation : Vertical
-
Connector System : Board-to-Board
-
Number of Positions : 50
-
Number of Rows : 2
