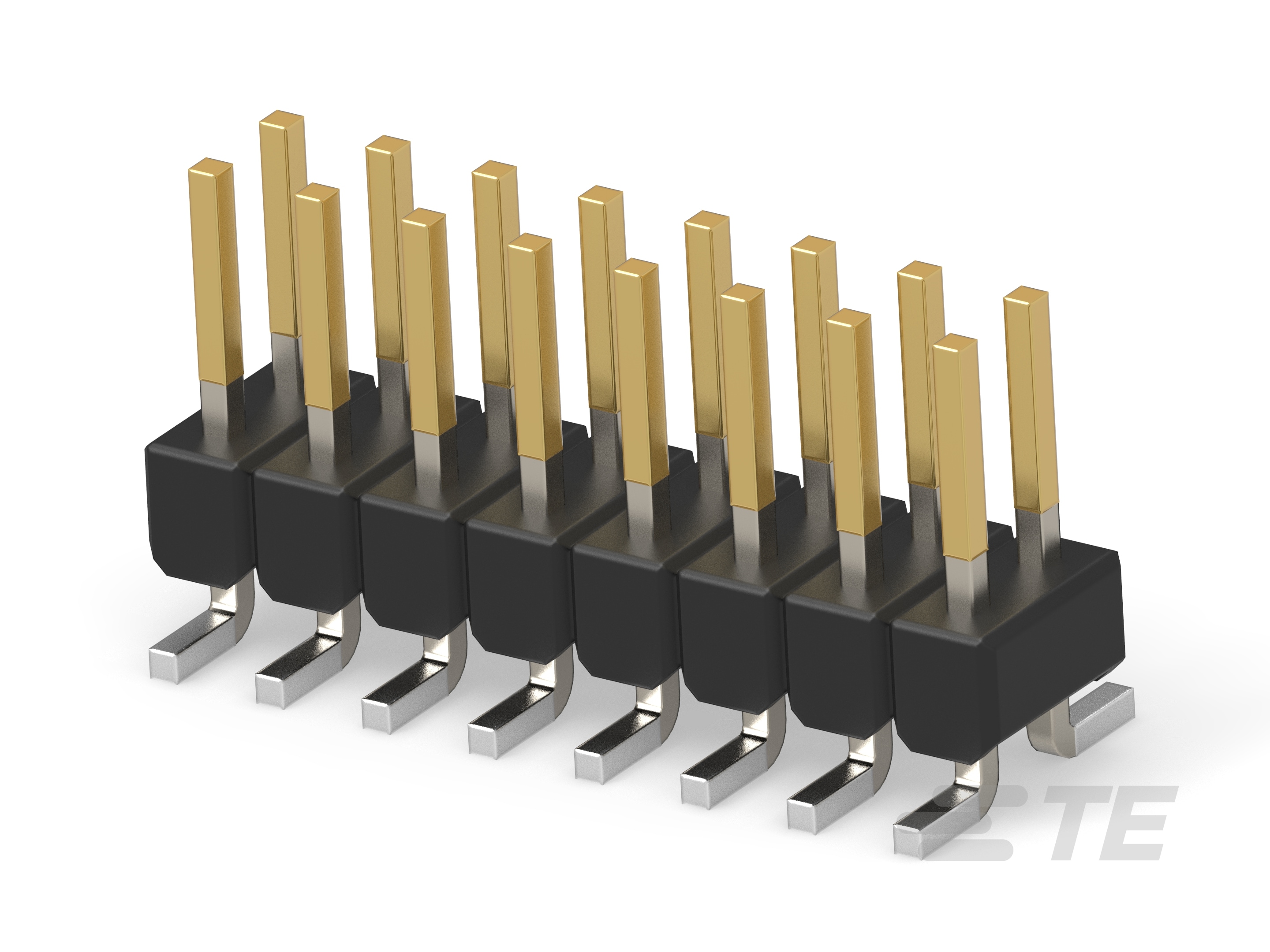

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Header Type : Breakaway

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Parallel

• Connector Contact Load Condition : Fully Loaded

• PCB Mount Orientation : Vertical

• Number of Positions : 16

• Number of Rows : 2

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Zinc, Phosphor Bronze

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness (µm): 3

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : .8 µm [ 31.5 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 5

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Termination Method to PCB : Surface Mount

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : PCT GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Housing Temperature Rating : Standard

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
