Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

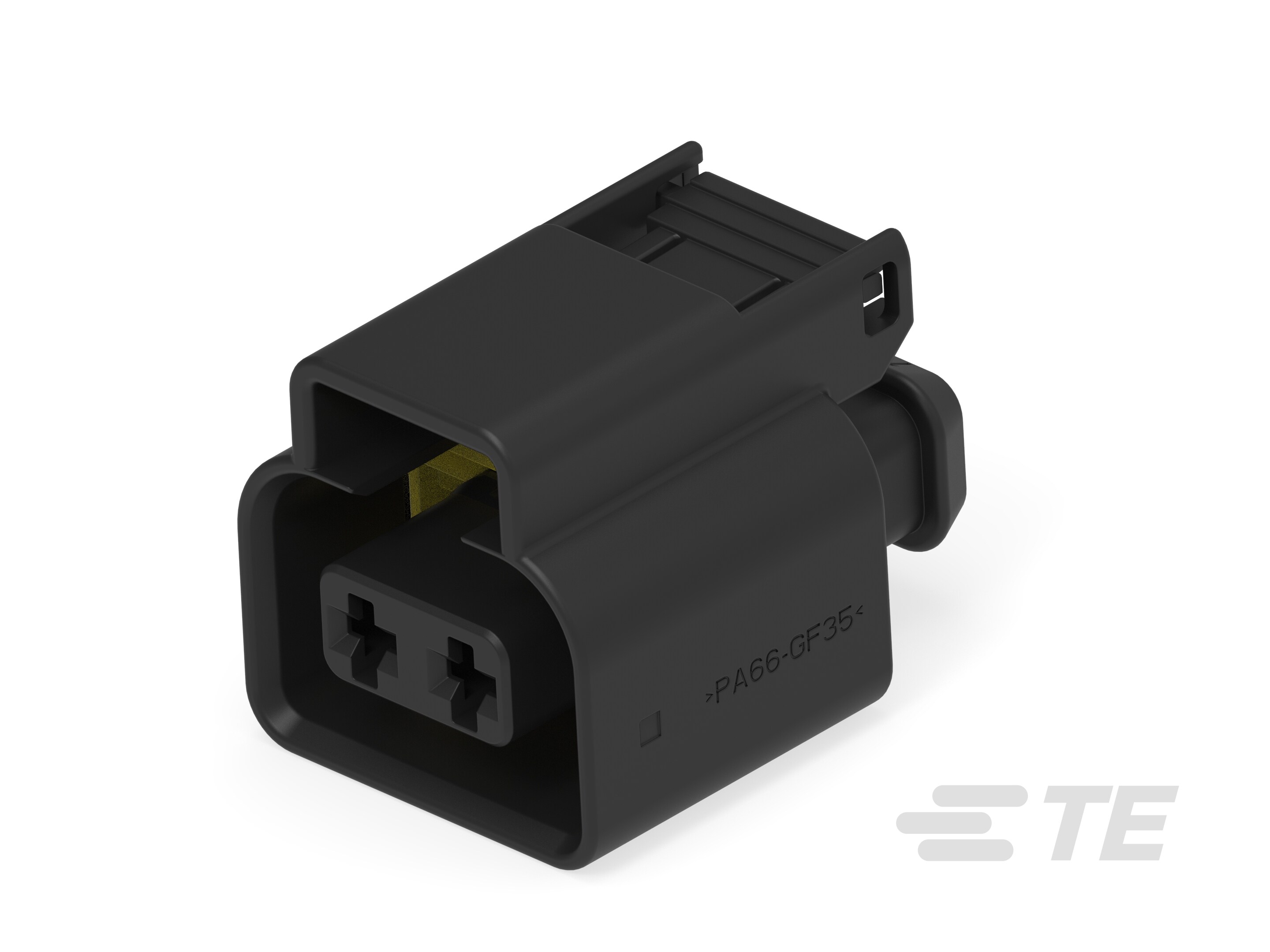

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Contact Type : Receptacle

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Housing Material : PA GF

• Centerline (Pitch) : 6.5 mm [ .256 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 24, 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Package

• Packaging Quantity : 600

• Connector Height : 22.8 mm [ .898 in ]

• Product Length : 31 mm [ 1.22 in ]

• Product Width : 22.9 mm [ .902 in ]

• UL Flammability Rating : UL 94HB

• IP Rating : IP67

• Number of Positions : 2

• Number of Rows : 1

• Operating Temperature (Max) (°C): 80, 85, 75, 70

• Operating Temperature (Max) (°F): 167, 158, 176, 185

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
