Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

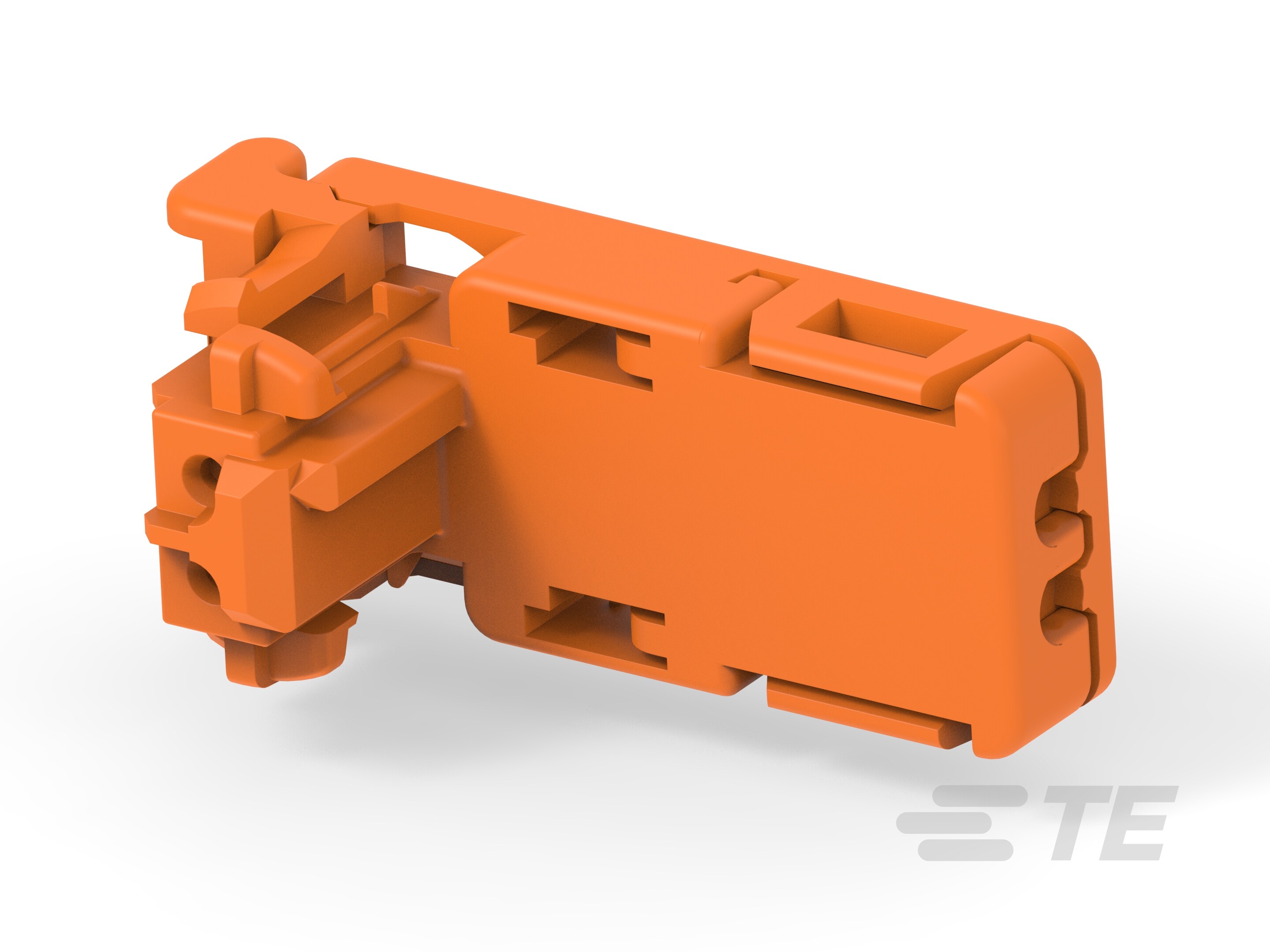

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device

• Sealable : No

• Number of Positions : 2

• Number of Rows : 1

• Cable Exit Angle : 90°

• Primary Product Color : Orange

• Connector & Keying Code : C

• Contact Type : Socket

• Contact Size : 1mm

• Mating Pin Diameter : 1 mm [ .039 in ]

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT

• Centerline (Pitch) : 3.1 mm [ .122 in ]

• Connector Height : 29.5 mm [ 1.161 in ]

• Product Length : 16.6 mm [ .654 in ]

• Product Width : 11.8 mm [ .465 in ]

• Operating Temperature (Max) (°C): 70, 75, 80

• Operating Temperature (Max) (°F): 158, 167, 176

• Operating Temperature Range : -30 – 80 °C [ -22 – 176 °F ]

• UL Flammability Rating : UL 94HB

• Packaging Method : Bag
