Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

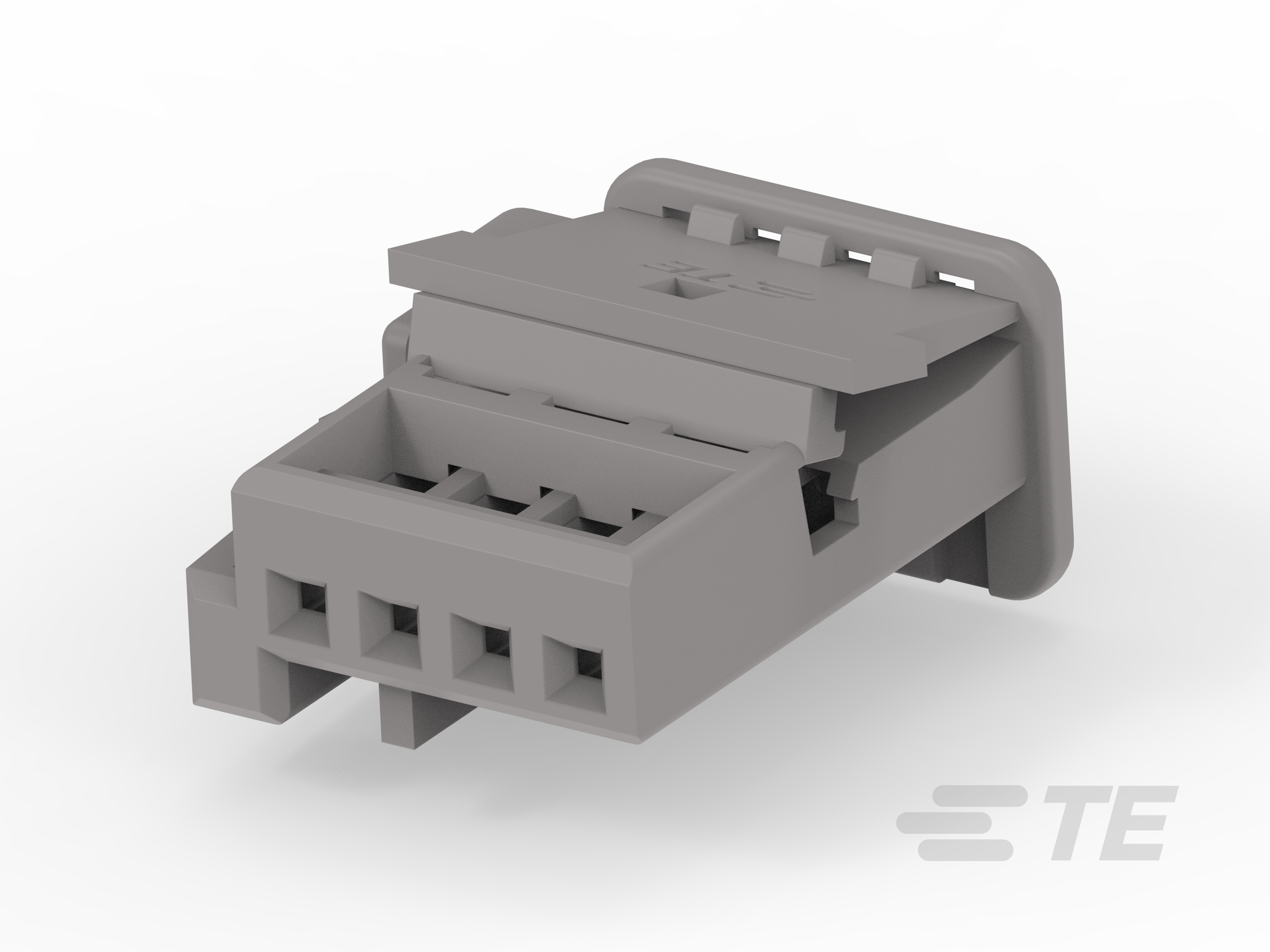

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Device

• Sealable : No

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : .63mm

• Mating Tab Width : .63 mm [ .025 in ]

• Housing Material : PBT GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Gray

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Connector Height : 10.7 mm [ .421 in ]

• Product Length : 16.5 mm [ .65 in ]

• Product Width : 17.6 mm [ .693 in ]

• UL Flammability Rating : UL 94HB

• Operating Voltage (VDC): 24

• Number of Positions : 4

• Number of Rows : 1
