Please review product documents or contact us for the latest agency approval information.

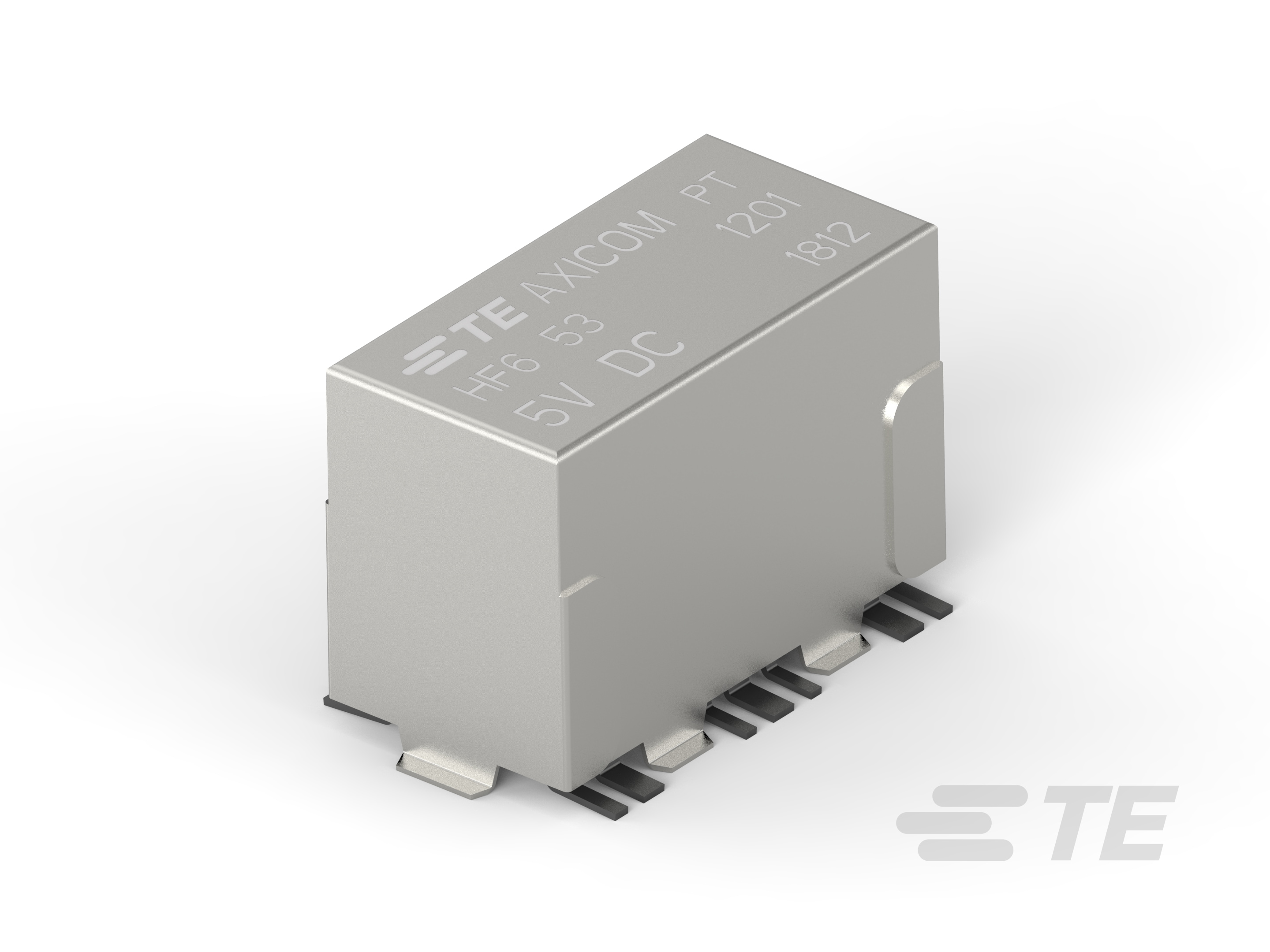

• Relay & Contactor Type : RF Relay

• Contact Number of Poles : 1

• Relay Options : Power Switching, RF Rated

• Contact Special Features : Gull Wing

• Contact Arrangement : 1 Form C SPDT-CO

• Insulation Initial Resistance (MΩ): 1000000

• Coil Resistance (Ω): 178

• Voltage Standing Wave Ration (HF Parameter) : 1.07db @ 100MHz, 1.45db @ 900MHz

• Contact Switching Voltage (Max) (VAC): 250

• Contact Switching Voltage (Max) (VDC): 220

• Insulation Initial Dielectric Between Open Contacts (Vrms): 600

• Contact Limiting Breaking Current (A): 2

• Contact Limiting Continuous Current (A): 2

• Contact Limiting Making Current (A): 2

• Contact Limiting Short-Time Current (A): 2

• Contact Current Rating (A): 2

• Coil Voltage Rating (VDC): 5

• Contact Voltage Rating (VAC): 30

• Contact Voltage Rating (VDC): 30

• Coil Power Rating DC (W): .14

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 1000

• Insertion Loss (HF Parameter) : -.05dB @ 900MHz, -.15dB @ 3GHz, -.8dB @ 6GHz

• Isolation (HF Parameter) : -30dB @ 6GHz, -60dB @ 3GHz, -80dB @ 900MHz

• Product Weight (oz): 3

• Enclosure Type : Flux Resistant Automatic Solder Capable & Washable

• Contact Material : Nickel

• Contact Plating Material : Gold

• Main Termination & Connection Type : PCB SMT

• Coil Termination & Connection Type : PCB SMT

• Product Mount Type : Board Mount

• Product Height : 10.5 mm [ .413 in ]

• Product Length : 14.9 mm [ .586 in ]

• Product Width : 7.5 mm [ .295 in ]

• Environmental Category of Protection : RTIII

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

• Solder Process : Reflow Solder Capable

• Current Type : DC

• Coil Magnetic System : Monostable

• Packaging Method : Box & Carton, Reel
