Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

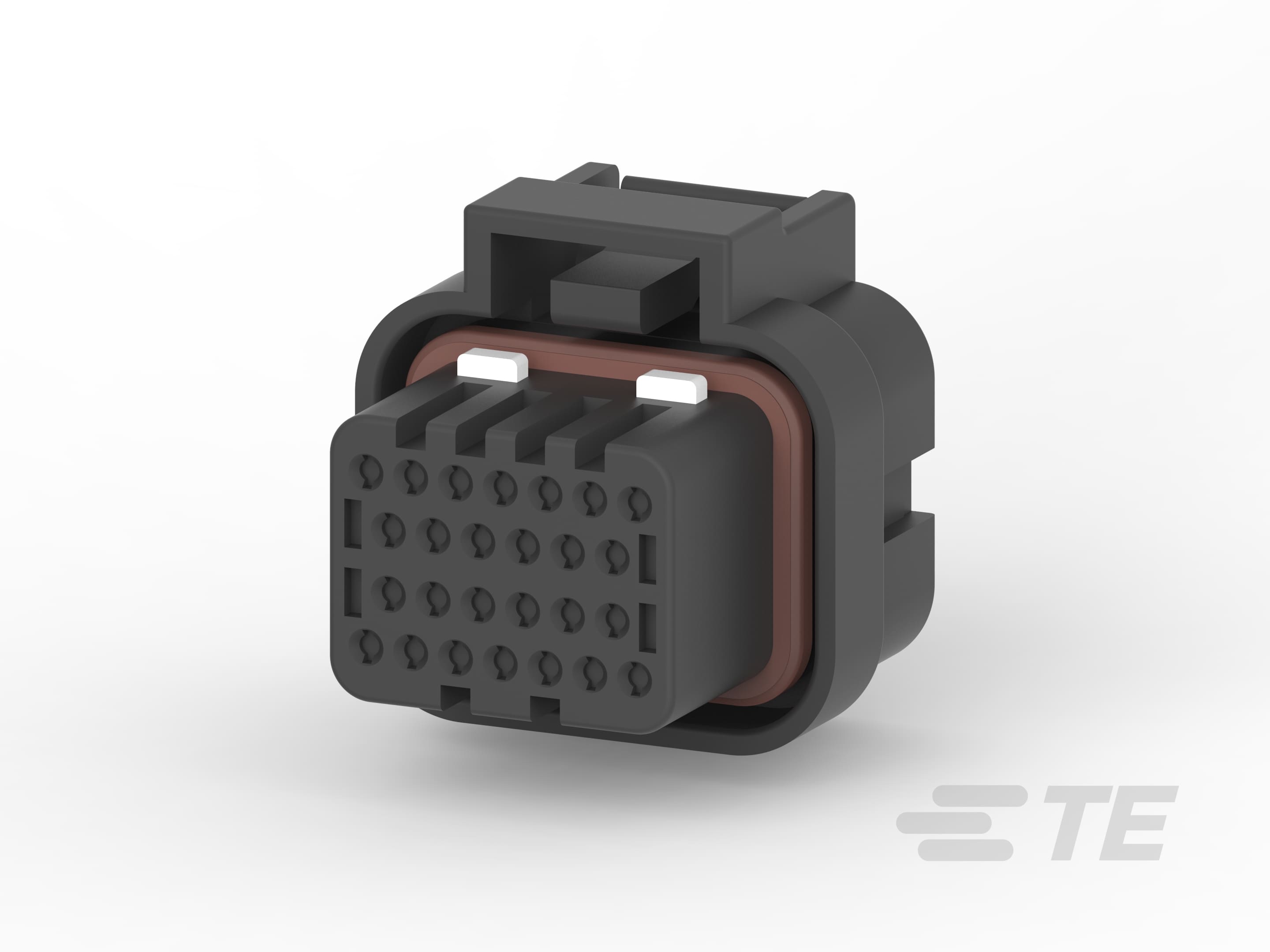

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Plug

• Connector System : Wire-to-Board

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1mm

• Mating Pin Diameter : 1 mm [ .039 in ]

• Housing Material : PBT GF30

• Centerline (Pitch) : 3 mm [ .118 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : 4

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : Without

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Tube

• Packaging Quantity : 20

• Connector Height : 32.1 mm [ 1.26 in ]

• Product Length : 32.2 mm [ 1.26 in ]

• Product Width : 34.5 mm [ 1.35 in ]

• Row-to-Row Spacing (mm): 3.5, 4

• Row-to-Row Spacing (in): .157, .137

• UL Flammability Rating : UL 94V-2

• IP Rating : JIS D0203

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Number of Positions : 26

• Number of Rows : 4

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
