Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

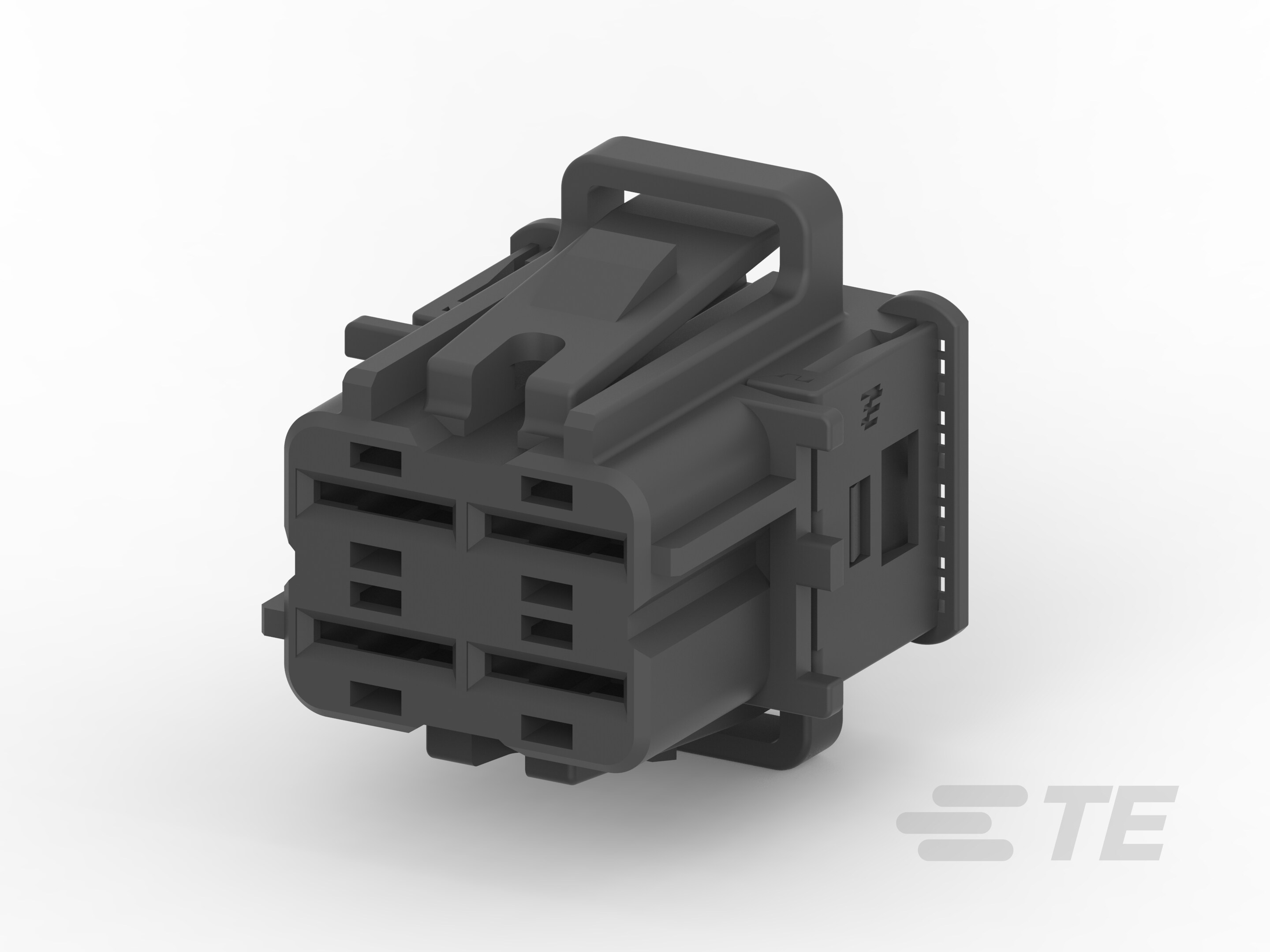

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Sealable : No

• Primary Locking Feature : On the Terminal

• Contact Type : Receptacle

• Contact Size : 6.3mm

• Mating Tab Width : 6.3 mm [ .248 in ]

• Housing Material : PBT GF

• Centerline (Pitch) : 6 mm [ .236 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : A

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 24

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Carton

• Packaging Quantity : 1200

• Connector Height : 22.8 mm [ .898 in ]

• Product Length : 25 mm [ .984 in ]

• Product Width : 24.36 mm [ .959 in ]

• Row-to-Row Spacing : 4.24 mm [ .167 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 4

• Number of Rows : 2

• Operating Temperature (Max) (°C): 80, 85, 75, 70

• Operating Temperature (Max) (°F): 158, 167, 176, 185

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
