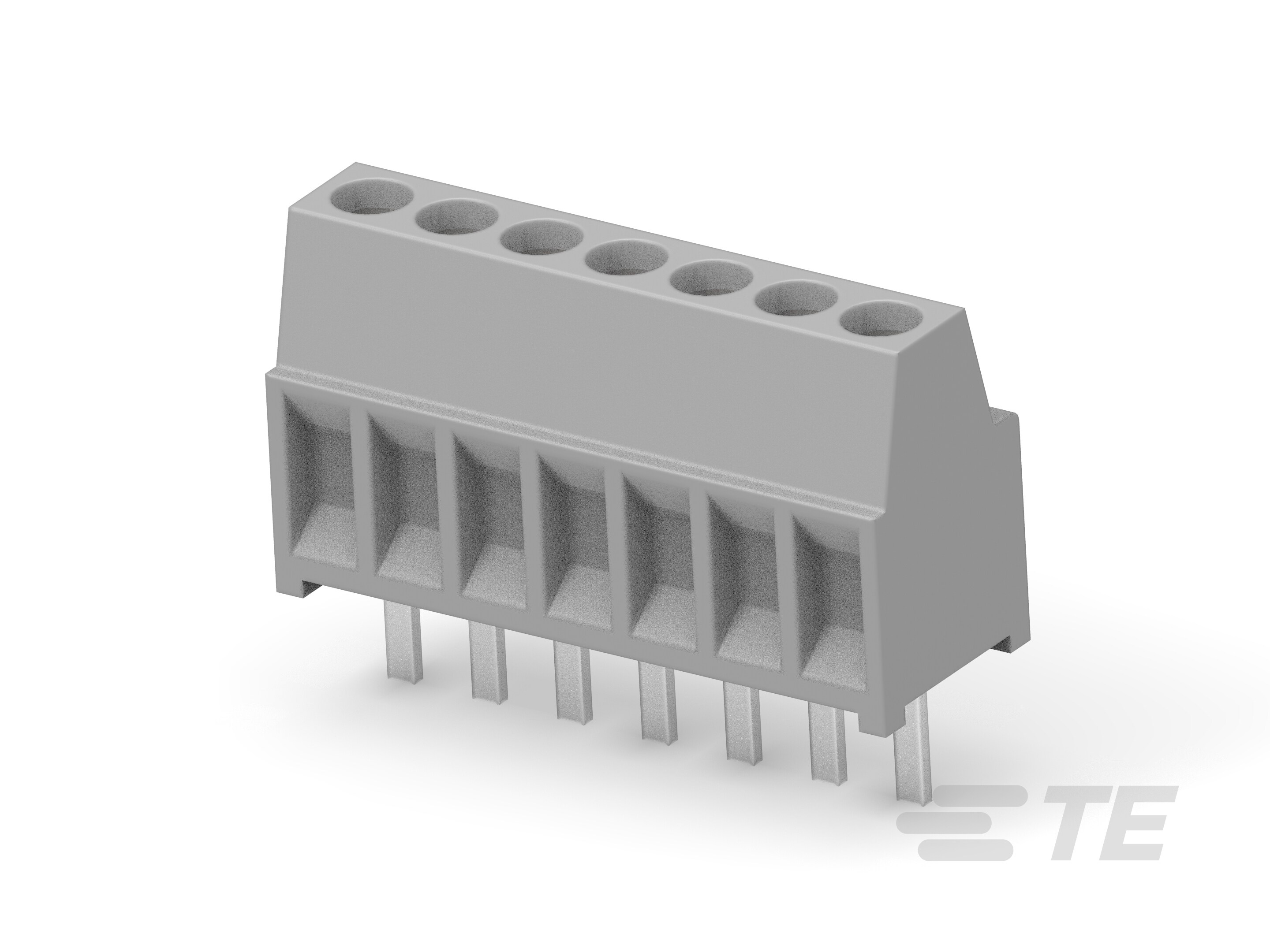

PCB Terminal Block Header, Wire-to-Board, 7 Position, 2.54 mm [.1 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG Wire Size
1546215-7
PCB Terminal Block Header, Wire-to-Board, 7 Position, 2.54 mm [.1 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG Wire Size
-
- Buchanan
- TE Internal #: 1546215-7
- TE Internal Description: TERMI-BLOK PCB MOUNT, 90 7P.
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Number of Positions : 7
-
Centerline (Pitch) : 2.54 mm [ .1 in ]
-
Number of Rows : 1
