Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

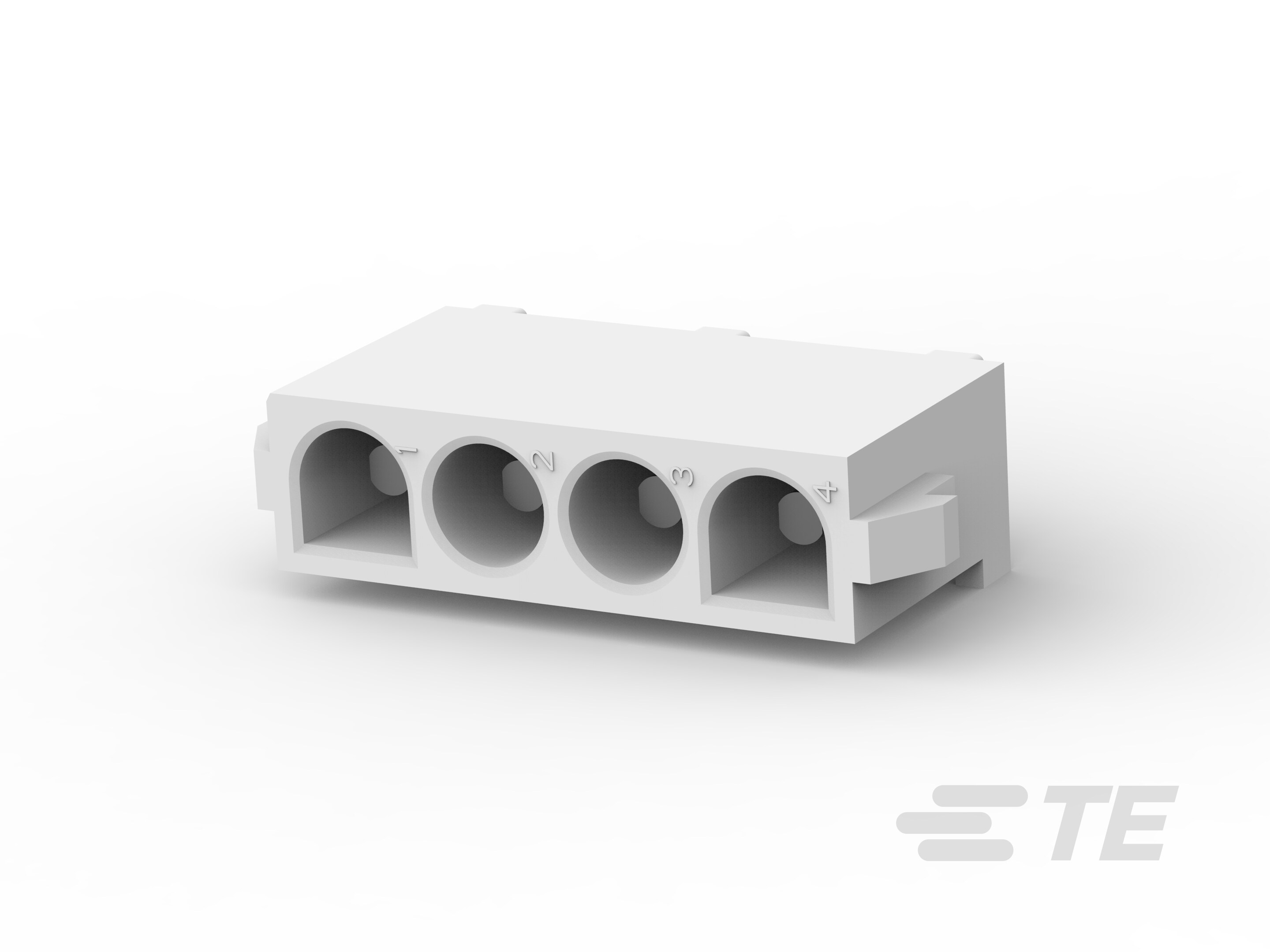

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Contact Load Condition : Fully Loaded

• Number of Power Positions : 4

• Number of Loaded Positions : 4

• Number of Columns : 4

• PCB Mount Orientation : Vertical

• Number of Positions : 4

• Number of Rows : 1

• Operating Voltage (VAC): 600

• Primary Product Color : Natural

• PCB Contact Termination Area Plating Material : Pre-Tin

• Contact Base Material : Phosphor Bronze

• Contact Layout : Inline

• Contact Shape & Form : Round

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 5.08 µm [ 150 – 200 µin ]

• Contact Mating Area Plating Material Thickness : 3.81 – 5.08 µm [ 150 – 200 µin ]

• Contact Size : 2.2mm

• Contact Underplating Material Thickness : 1.27 – 1.79 µm [ 50 – 70 µin ]

• Mating Pin Diameter : 2.2 mm [ .087 in ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Pre-Tin

• Contact Type : Pin

• Contact Current Rating (Max) (A): 12

• Termination Post & Tail Length : 3.56 mm [ .14 in ]

• Termination Post & Tail Diameter : 1.57 mm [ .062 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Alignment Type : Standard Polarized Tail

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Locking Tab

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : Nylon

• Mating Entry Location : Top

• Centerline (Pitch) : 6.35 mm [ .25 in ]

• Profile Height from PCB : 14.73 mm [ .58 in ]

• Connector Length : 26.67 mm [ 1.05 in ]

• Connector Height : 13.97 mm [ .55 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Connector Width : 7.62 mm [ .3 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application : Power

• Glow Wire Rating : Standard Part - Not Glow Wire

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL, VDE

• UL Flammability Rating : UL 94V-0
