1586359-6

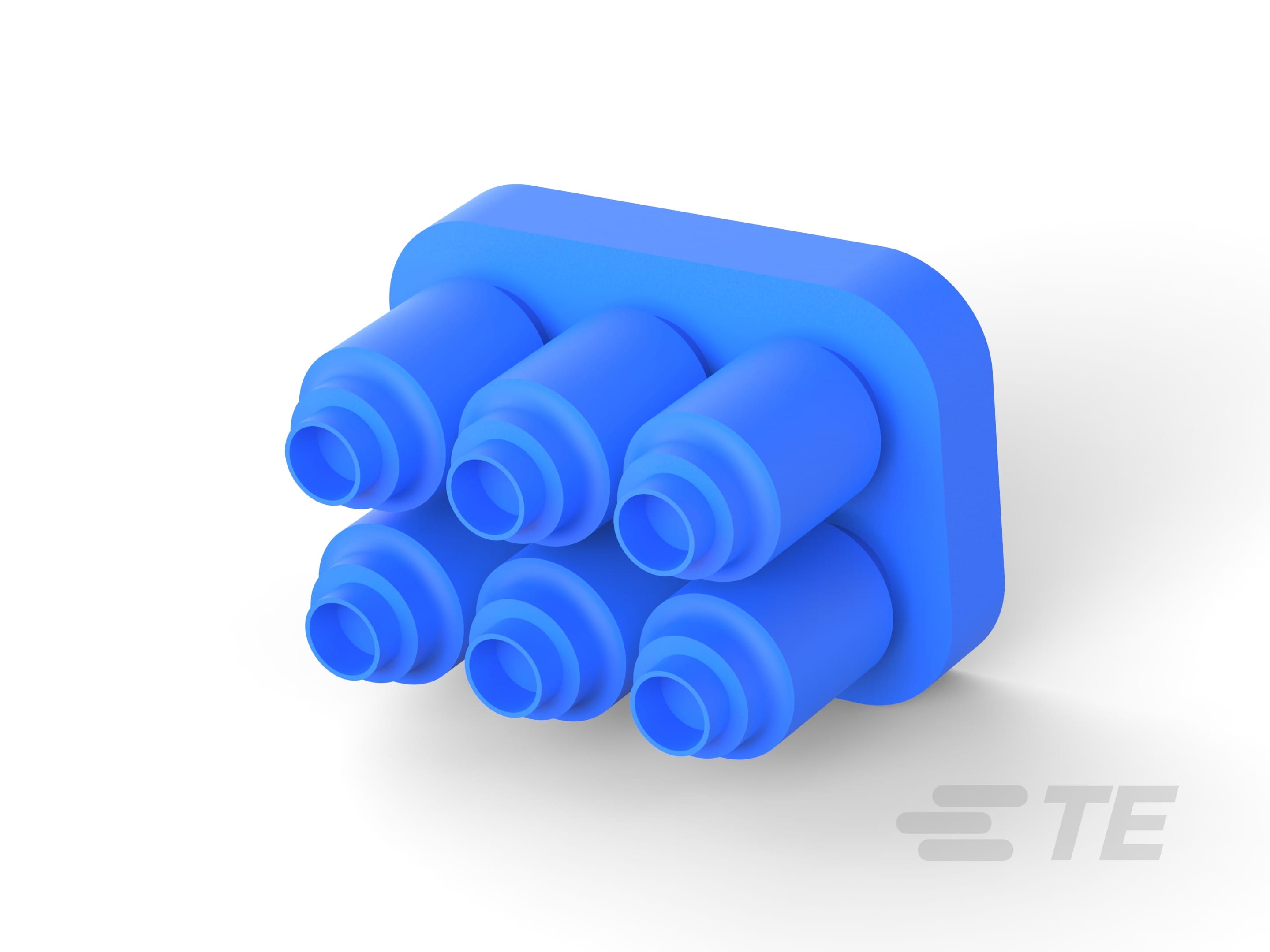

Gang Wire Seal, Silicone Rubber, Blue, 1.27 – 2.11 mm [.05 – .083 in] Insulation Diameter, Mini-Universal MATE-N-LOK
1586359-6
Gang Wire Seal, Silicone Rubber, Blue, 1.27 – 2.11 mm [.05 – .083 in] Insulation Diameter, Mini-Universal MATE-N-LOK
-
- MATE-N-LOK
- Mini-Universal MATE-N-LOK
- TE Internal #: 1586359-6
- TE Internal Description: 06P MINIUMNL GANG WIRE SEAL DR
-
Packaging Method : Package
-
Operating Temperature Range : -40 – 90 °C [ -40 – 194 °F ]
-
Primary Product Color : Blue
-
Primary Product Material : Silicone Rubber
-
Operating Temperature (Max) : 90 °C [ 194 °F ]
Documents
Product Drawings
- GANG WIRE SEAL, MINI UNIVERSAL MATE-N-LOK(TM) ENG_CD_1586359_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1586359-6_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1586359-6_D.2d_dxf.zip English
- ENG_CVM_CVM_1586359-6_D.3d_igs.zip English
- ENG_CVM_CVM_1586359-6_D.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG ENG_CS_82181_SOFTSHELL_HIGH_DENSITY_0508.pdf English
Product Specifications
- Application Specification ENG_SS_114-1010_V2.pdf English
- Product Specification ENG_SS_108-1031-1_C.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-16017_A.pdf English
