Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

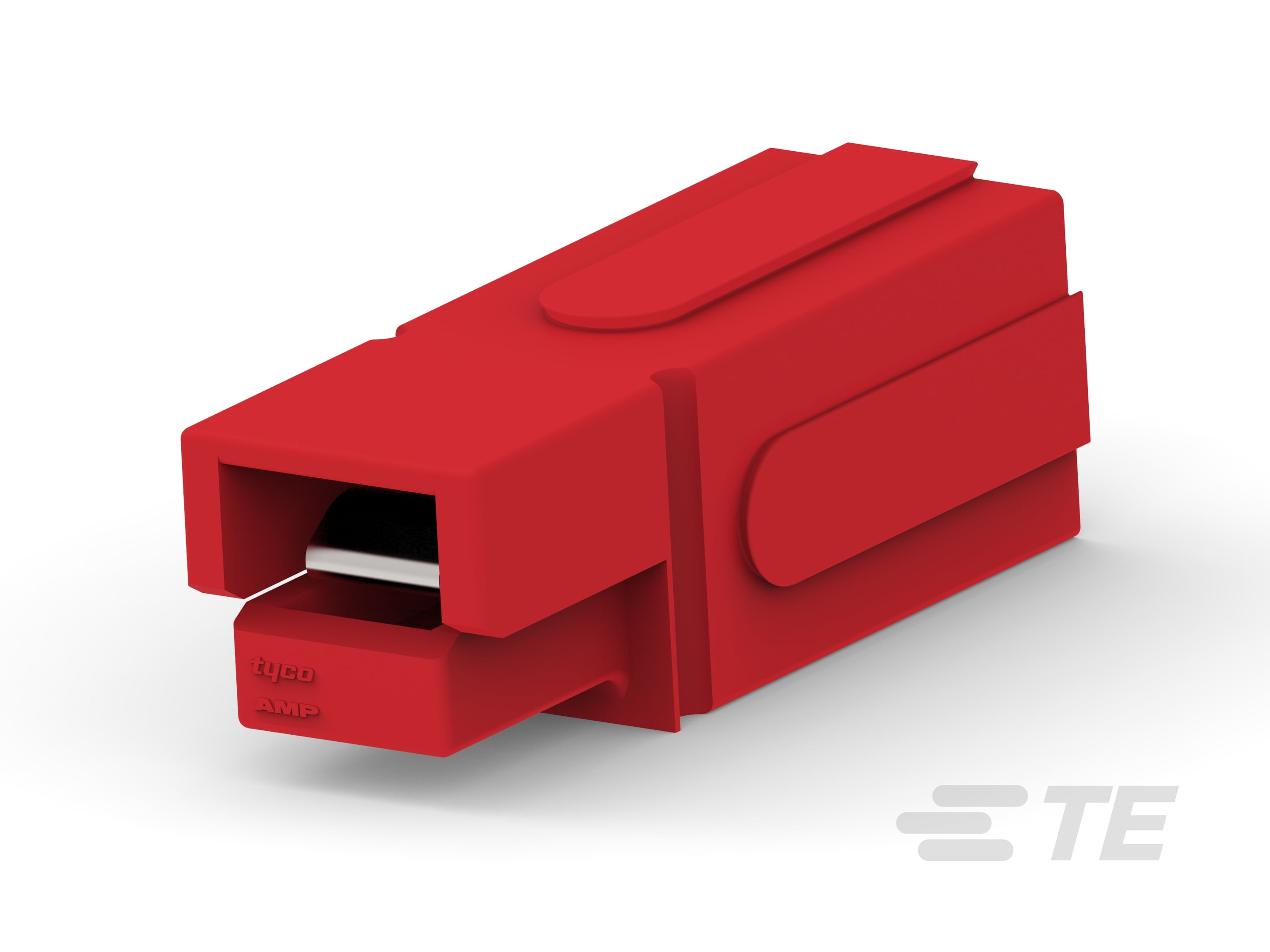

• Assembly Requirement : Unassembled Kit

• Compatible With Discrete Wire Type : Stranded

• Rectangular Power Connector Type : Connector Assembly

• Connector & Housing Type : Receptacle, Plug

• Connector System : Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL

• UL Flammability Rating : UL 94V-0

• Glow Wire Rating : Standard Part - Not Glow Wire

• Contact Mating Area Plating Material : Silver

• Contact Current Rating (Max) (A): 180

• Contact Retention Within Housing : Without

• Contact Type : Blade

• Wire Contact Termination Area Plating Material : Silver

• Contact Mating Area Plating Material Thickness : 1.27 µm [ 50 µin ]

• Mating Alignment : Without

• Mating Retention : With

• Mating Retention Type : Latch

• Panel Mount Feature : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Connector Height : 28.25 mm [ 1.112 in ]

• Product Length : 82.6 mm [ 3.25 in ]

• Product Width : 28.56 mm [ 1.12 in ]

• Wire Size (AWG): 2

• Wire Size (mm²): 34 – 35

• Wire Size (CMA): 67100 – 69073

• Number of Positions : 2

• Number of Power Positions : 0

• Number of Signal Positions : 0

• Number of Rows : 1

• Operating Voltage (VAC): 600

• Operating Voltage (VDC): 600

• Termination Method to Wire & Cable : Crimp

• Housing Color : Red

• Housing Material : Polycarbonate

• Operating Temperature Range : -20 – 105 °C [ -4 – 221 °F ]

• Circuit Application : Power

• Packaging Method : Box
