Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

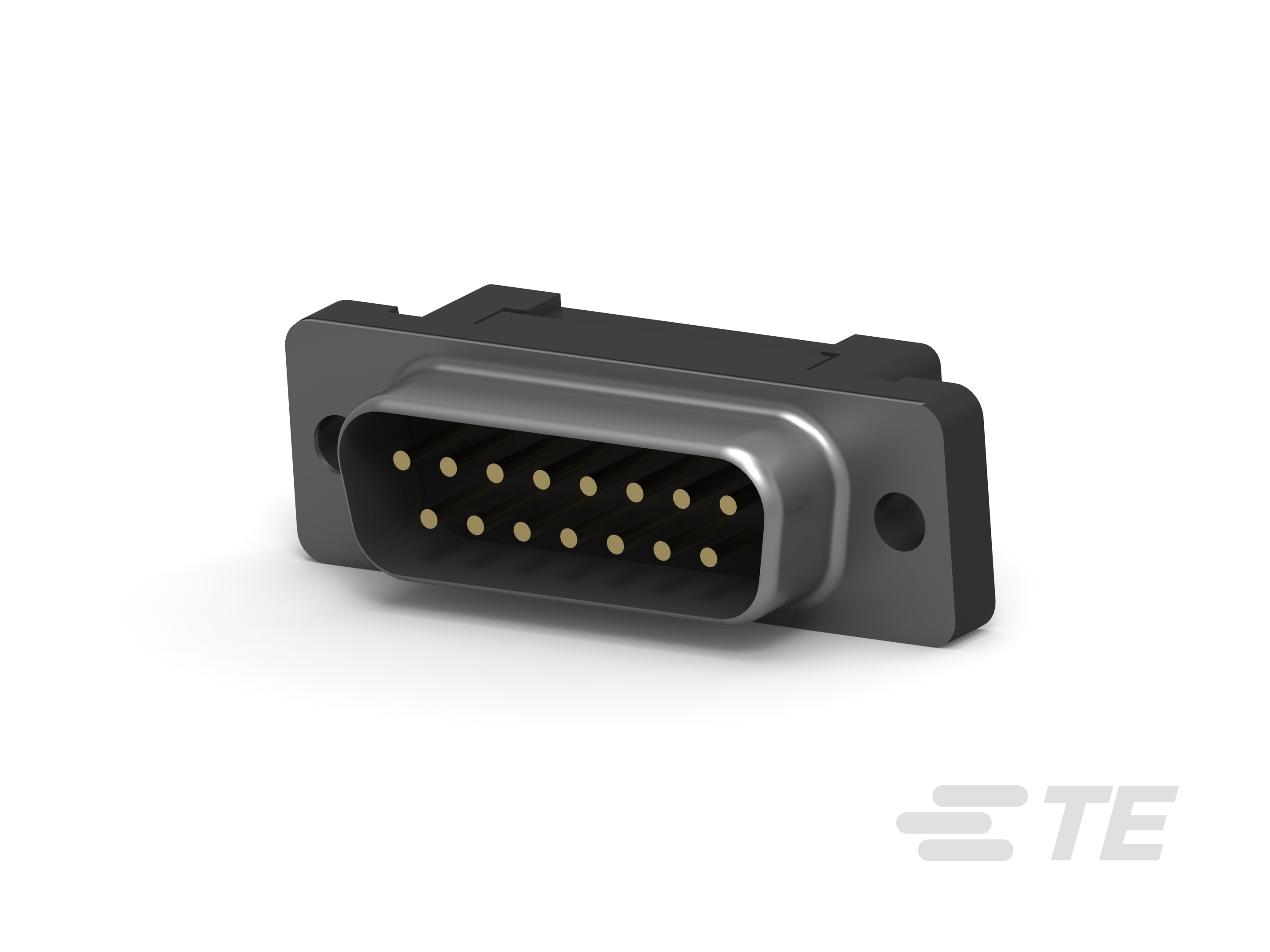

• Connector & Contact Terminates To : Wire & Cable

• Connector Shell Size : 2

• Connector & Housing Type : Plug

• Connector Product Type : Connector Assembly

• Shell Material Configuration : Front Metal Shell

• Connector System : Cable-to-Cable

• Ground Feature Type : Grounding Indents

• Number of Positions : 15

• Number of Rows : 2

• Compatible With Wire & Cable Type : Ribbon Cable

• Shell Plating Finish : Bright

• Cover Material : Thermoplastic

• Connector Profile : Low

• Shell Plating Material : Tin

• Cable Exit Angle : 180°

• Mating Retention Feature Material : Steel

• Ribbon Cable Centerline Spacing : 1.27 mm [ .05 in ]

• Contact Base Material : Phosphor Bronze

• Wire Contact Termination Area Plating Material : Tin

• Contact Options : Installed

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 1.25

• Contact Size : Size 20

• Contact Type : Pin

• Termination Method to Wire & Cable : Insulation Displacement (IDC)

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Retention Feature Plating Material : Zinc

• Mating Retention : With

• Mating Retention Type : Threaded Insert, 4-40 UNC

• Housing Material : Thermoplastic

• Centerline (Pitch) : 2.77 mm [ .055 in ]

• Shell Material : Steel

• Wire Size (AWG): 28 – 26

• Accepts Cable Insulation Diameter Range : .81 – .97 mm [ .032 – .038 in ]

• Solid Wire Size (mm²): .1 – .13

• Solid Wire Size (AWG): 28 – 26

• Wire Size (mm²): .08 – .15

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Shielded : No

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
